MAJESTRONICZ

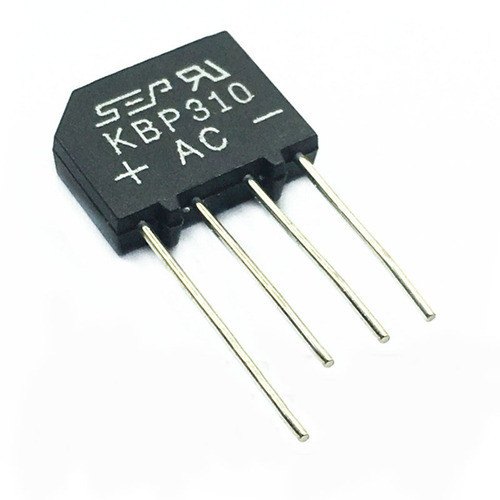

KBP310 Bridge Rectifier
KBP310 Bridge Rectifier
Regular price
Rs. 8.00
Regular price
Rs. 10.00
Sale price
Rs. 8.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
š¦ For Bulk Order Enquiry ā Click Here for Best Price
The KBP310 is a bridge rectifier module commonly used in power supply circuits to convert AC (alternating current) to DC (direct current).
š§ KBP310 Specifications:
| Parameter | Value |
|---|---|
| Maximum Repetitive Peak Reverse Voltage (V<sub>RRM</sub>) | 1000V |
| Maximum RMS Voltage | 700V |
| Maximum DC Blocking Voltage | 1000V |
| Average Forward Output Current (I<sub>O</sub>) | 3A |
| Non-Repetitive Peak Forward Surge Current (I<sub>FSM</sub>) | 200A (8.3ms half sine) |
| Forward Voltage Drop (per diode) | ~1.1V @ 3A |
| Operating Temperature Range | -55Ā°C to +150Ā°C |
| Package Type | KBP (flat rectangular, 4 pins) |
| Mounting Type | Through-hole or PCB Mount |
