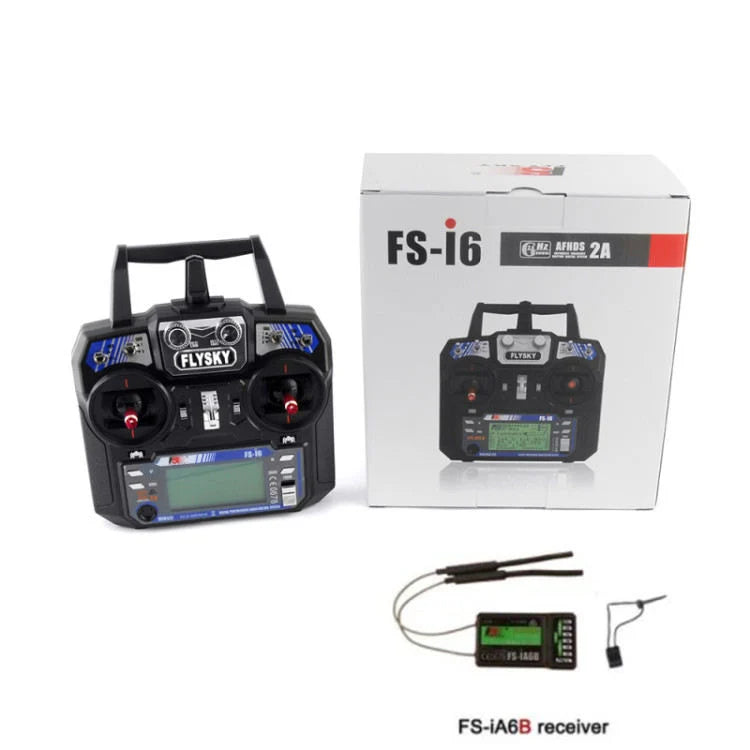

FlySky FS-i6 2.4GHz 6-channel PPM RC transmitter with FS-iA6B Receiver

The FlySky FS-i6 is a 2.4GHz 6-channel RC transmitter that comes with the FS-iA6B receiver. It is widely used for drones, RC planes, helicopters, and boats due to its reliable transmission, affordability, and user-friendly features.

FlySky FS-i6 Transmitter:

• Frequency: 2.4GHz (AFHDS 2A system for interference-free communication)
• Channels: 6 channels
• Modulation: GFSK
• Range: Up to 500m (depending on environment and receiver)
• Power: 4x AA batteries (or external LiPo mod)
• Display: LCD screen for easy settings and adjustments
• Controls: Two control sticks, multiple switches, and dials
• Modes: Can switch between Mode 1 (Throttle Right) and Mode 2 (Throttle Left)
• Telemetry Support: Yes, with compatible sensors
• Failsafe Function: Prevents loss of control in case of signal failure
• Compatibility: Works with FlySky receivers (FS-iA6B, FS-iA10B, etc.)

FS-iA6B Receiver:

• Channels: 6 channels
• Protocol: AFHDS 2A
• Output: PWM/PPM/iBus (PPM and iBus are better for reducing wiring in drones)
• Antenna: Dual antennas for better reception
• Voltage: 4.0V - 6.5V
• Size: Compact design for easy installation in models

Applications:

• RC Drones and Quadcopters
• Fixed-Wing Airplanes
• Helicopters
• RC Boats and Cars
