MAJESTRONICZ

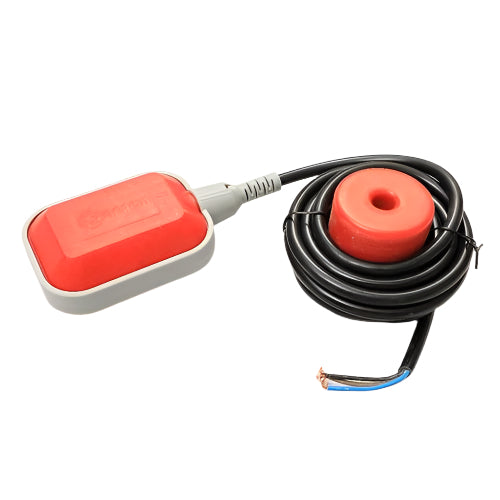

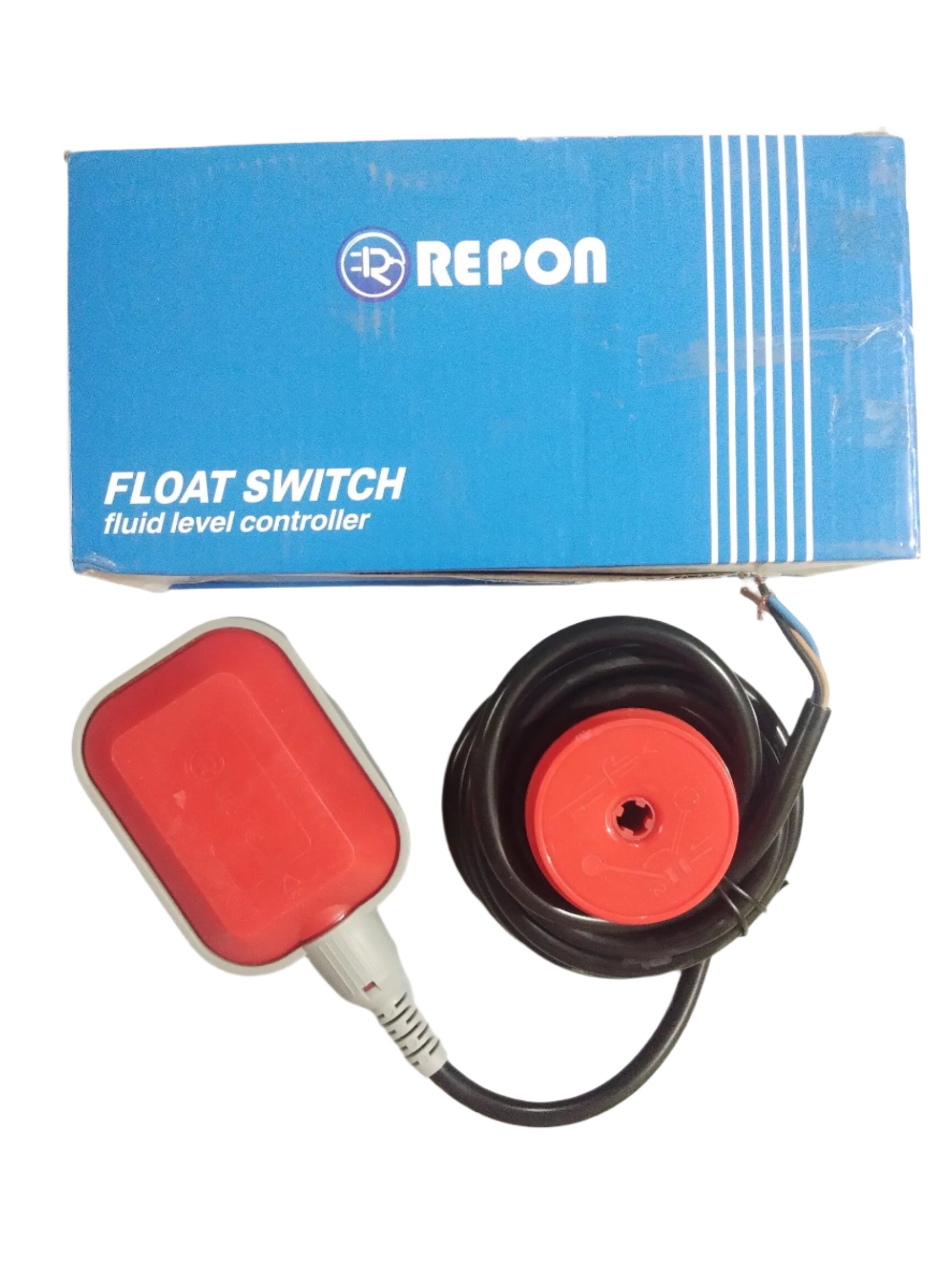

Float Switch Fluid Level Controller-Repon(Square 2M)
Float Switch Fluid Level Controller-Repon(Square 2M)
Regular price
Rs. 350.00
Regular price
Rs. 415.00
Sale price
Rs. 350.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
A Square 2M Float Switch — commonly used for industrial pump and tank automation.
📊 Float Switch Sensor – Technical Specifications
| Parameter | Details |
|---|---|
| Rated Voltage | AC 125V / 250V |
| Max Current | 16A (Resistive Load), 4A (Inductive Load) |
| Frequency | 50 – 60 Hz |
| Max Operating Temp. | 50°C |
| Protection Grade | IP68 (Fully waterproof, submersible) |
| Switch Type | Mechanical (tilt with internal ball/mercury switch) |
| Cable Length | Typically 2m (may vary) |
| Output Contact | SPDT (Normally Open & Normally Closed available) |
🔒 Protection Grade - IP68 Explained:
-
IP68 =
🔹 6 – Dust-tight (complete protection against dust)
🔹 8 – Protected against long-term immersion under pressure (fully submersible)
This makes the float switch ideal for tank and sump use.
