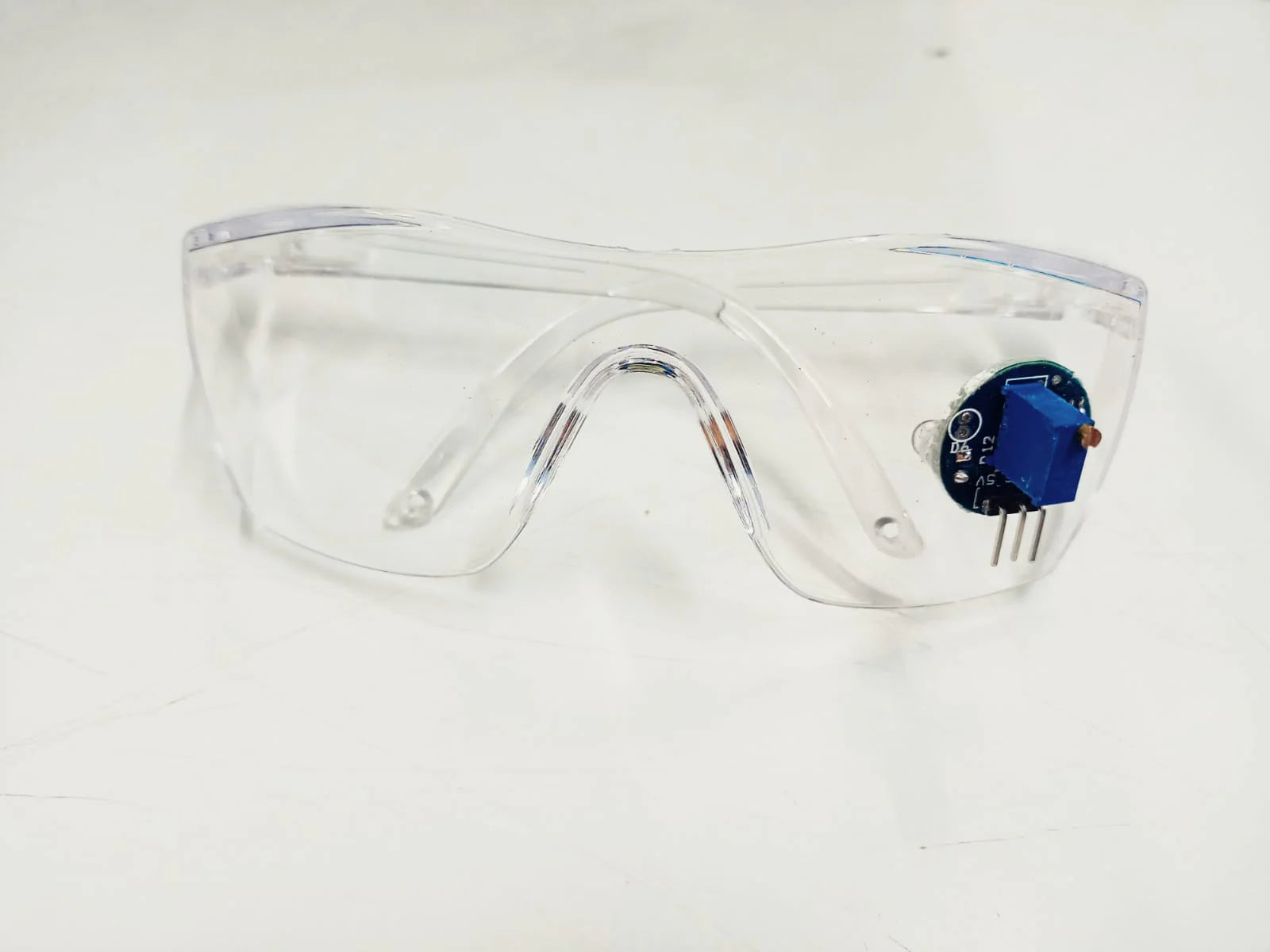

Eye Blink Sensor

The Eye Blink Sensor is a wearable electronic device used to detect eye blinking or eye movement. It works based on infrared (IR) reflection technology or sometimes EEG-based sensing, depending on the model. When the eye is open or closed, the amount of reflected infrared light changes, which is detected by the sensor and converted into an electrical signal.

• Product Type: Eye blink detection sensor module (IR-based / wearable type)
• Operating Voltage: 3.3V – 5V DC
• Operating Current: 10 mA – 30 mA
• Detection Method: Infrared reflection from eyelid movement
• Sensor Components: IR LED (transmitter) + Photodiode/Phototransistor (receiver)
• Output Type: Digital output
• Detection Signal: Blink detection based on variation in IR reflection
• Response Time: Very fast (<10 ms typical)
• Detection Range: Very short range
• Interface Pins: VCC, GND, OUT
• Compatibility: Arduino, ESP8266, ESP32, Raspberry Pi
