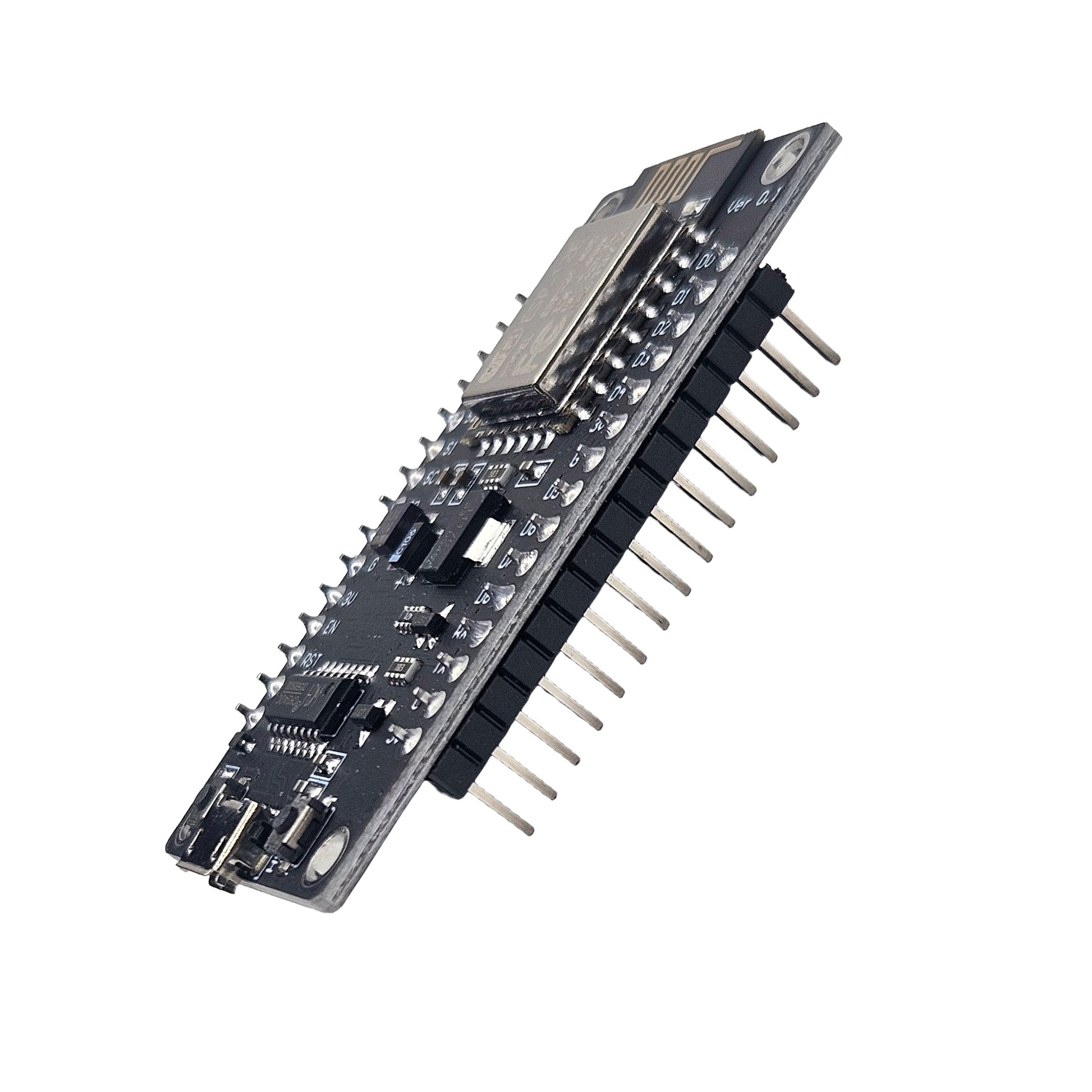

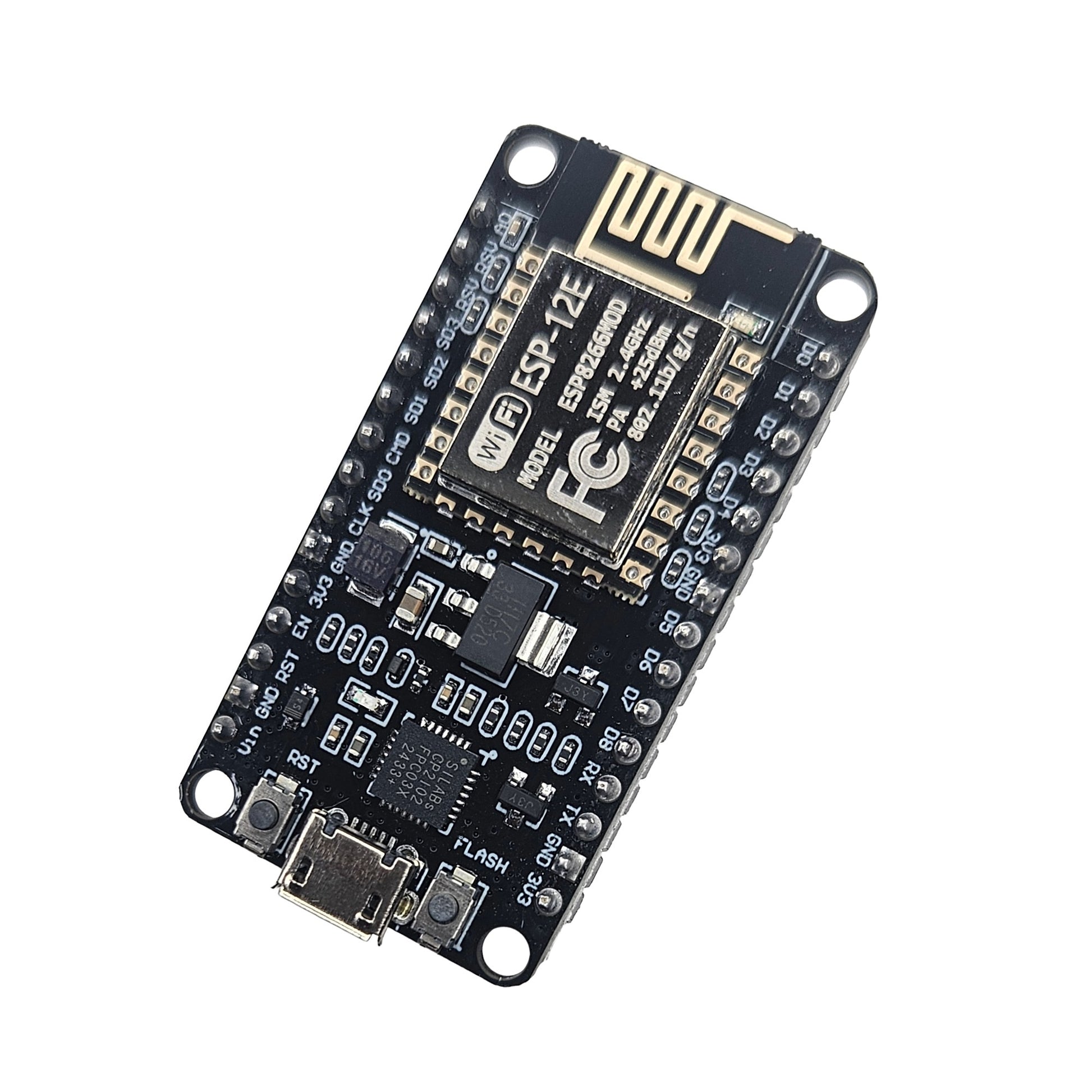

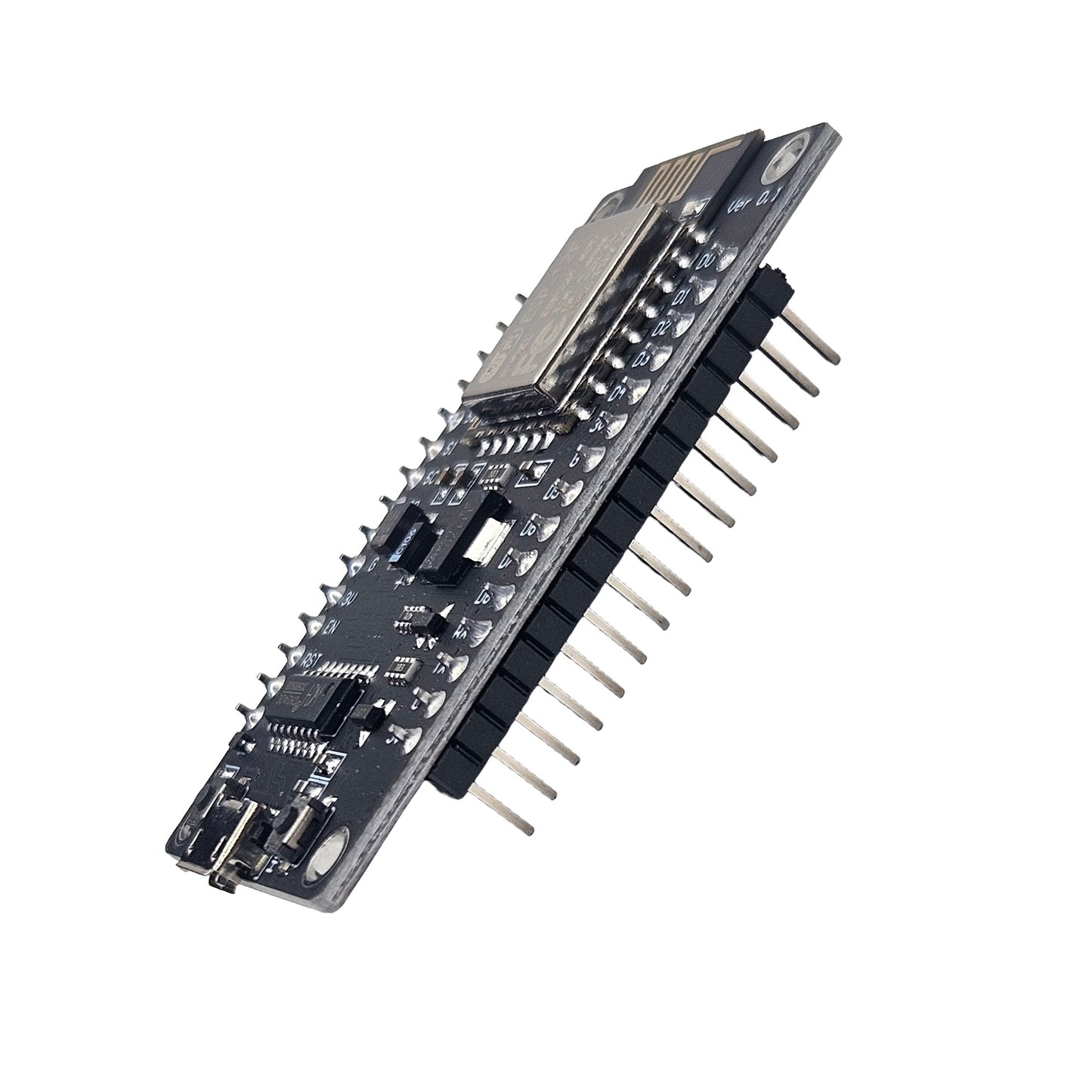

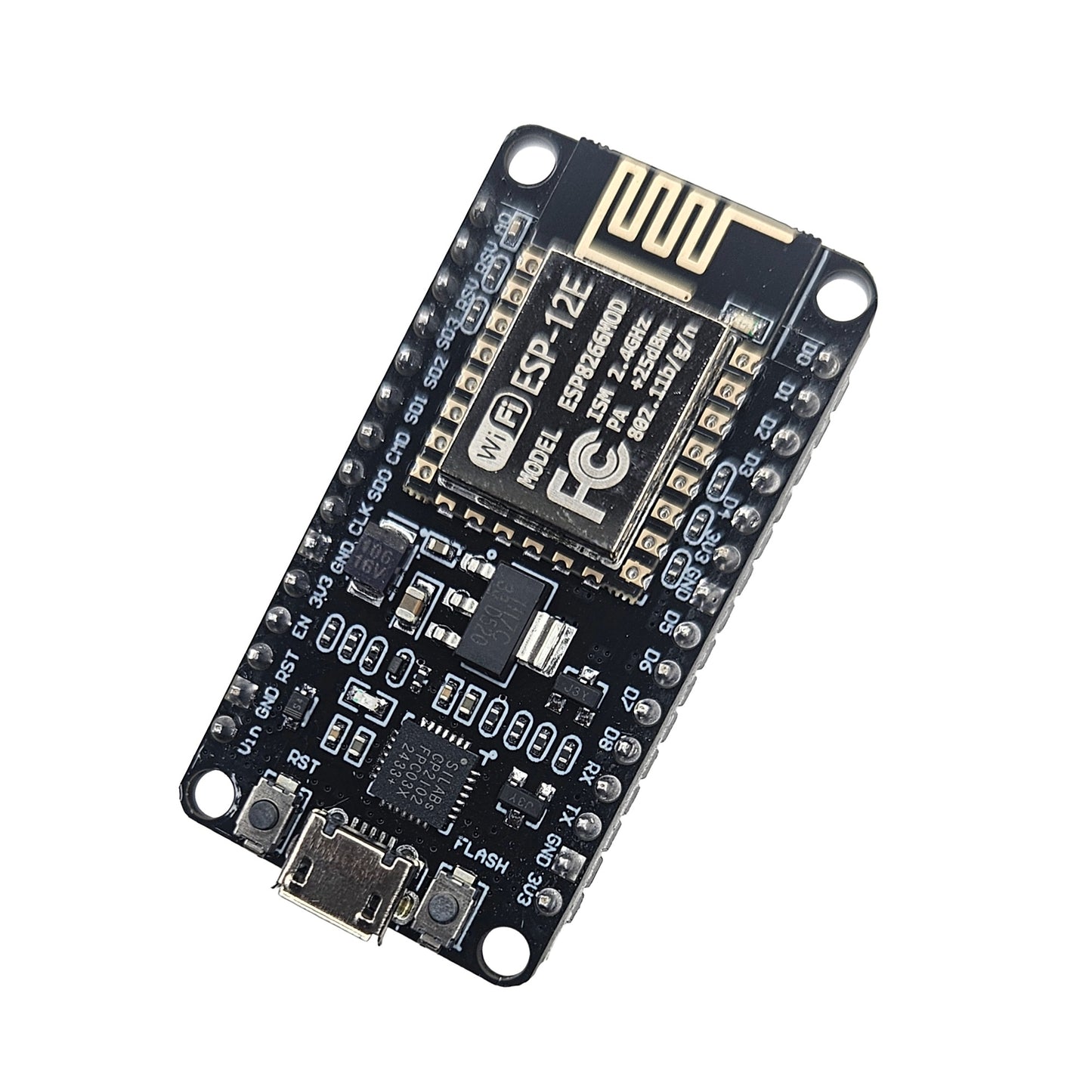

ESP8266 CH340 V3 WiFi Development Board – Breadboard Friendly IoT Module with CH340 USB to TTL Serial Converter

• The ESP8266 CH340 V3 WiFi Development Board is an upgraded version of the popular ESP8266 IoT platform, designed for stable performance, easy programming, and fast wireless connectivity. Built with the CH340 USB-to-TTL serial chip, this V3 version ensures reliable driver support and smooth flashing via USB.

  This breadboard-friendly development board is widely used in IoT projects, smart home automation, robotics, and wireless sensor systems. It comes with integrated WiFi capability, making it ideal for real-time data communication and cloud-based applications.

  The V3 version offers improved stability, better power handling, and enhanced compatibility with Arduino IDE and other development tools. Compact in size, it is perfect for both beginners learning IoT and advanced developers building real-world smart systems.

Bread board friendly open-source development board with CH340 USB to TTL serial converter chip and fast WiFi technology.

• Features:

  • Open-source IoT platform
  • Easily programmable
  • Cost-efficient
  • Easy to use
  • WiFi enabled
  • Interactive

• Specifications:

  Item Type:	WiFi Module
  Based On:	ESP8266 Based V3
  Drive Type	Dual high-power H-bridge
  Power Input(V)	4.5 to 9
  Interface voltage (V)	3.3, Communication
  Flash size(MB)	4
  Operating Temperature (°C):	-40 to 125
  Transfer Rate(Kbps)	110 to 460800
  ADC / DAC	1 channel ADC
  Length (mm):	58
  Width (mm):	31
