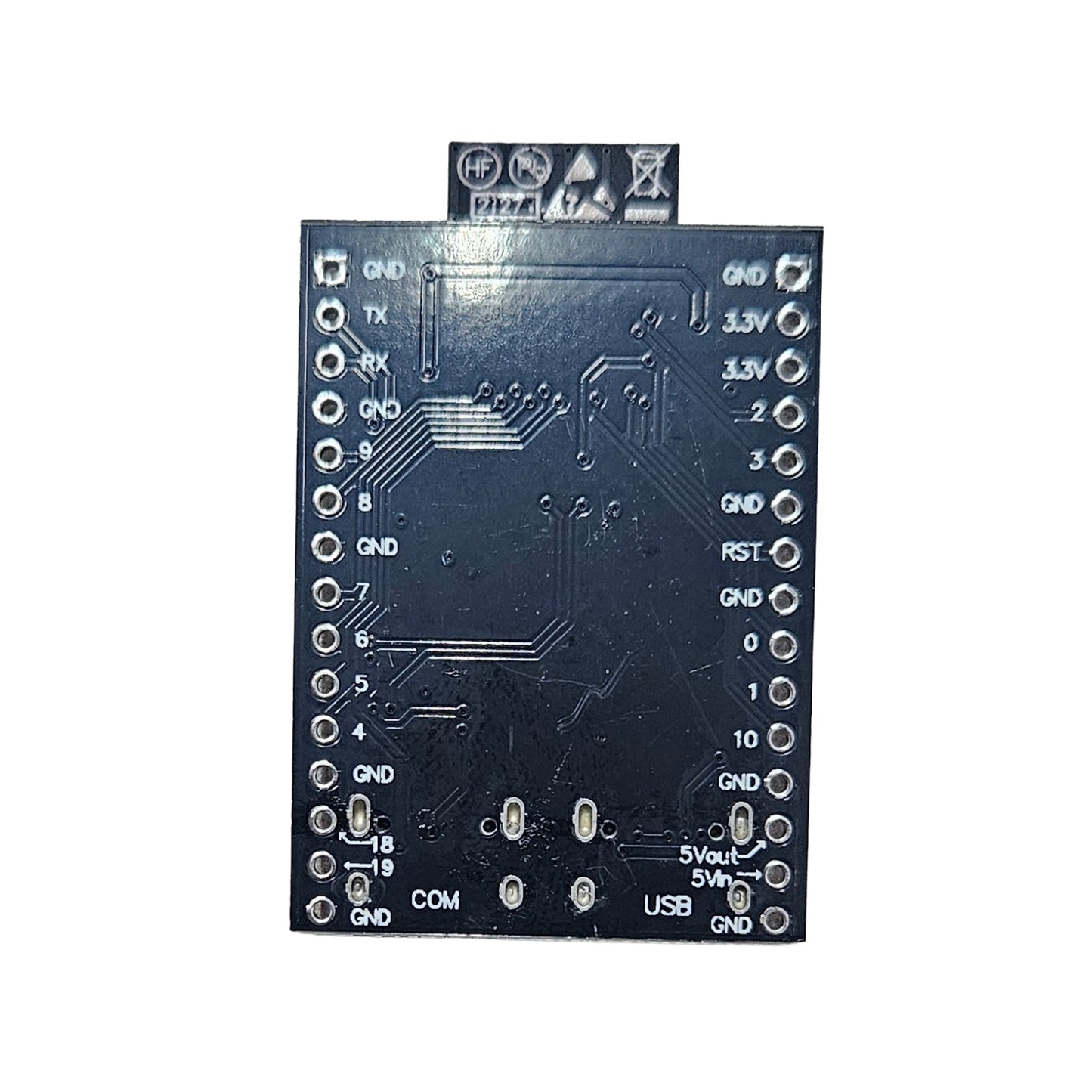

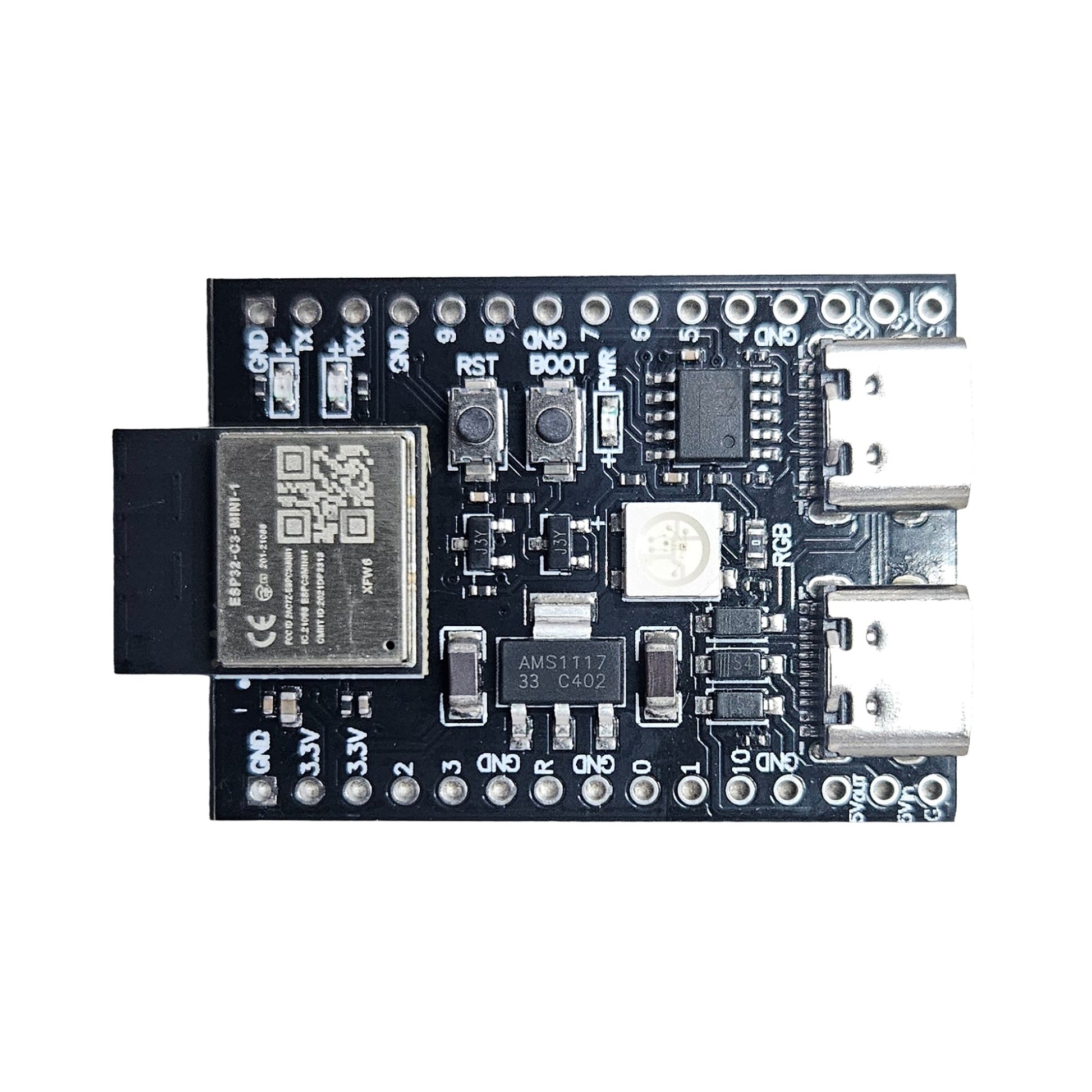

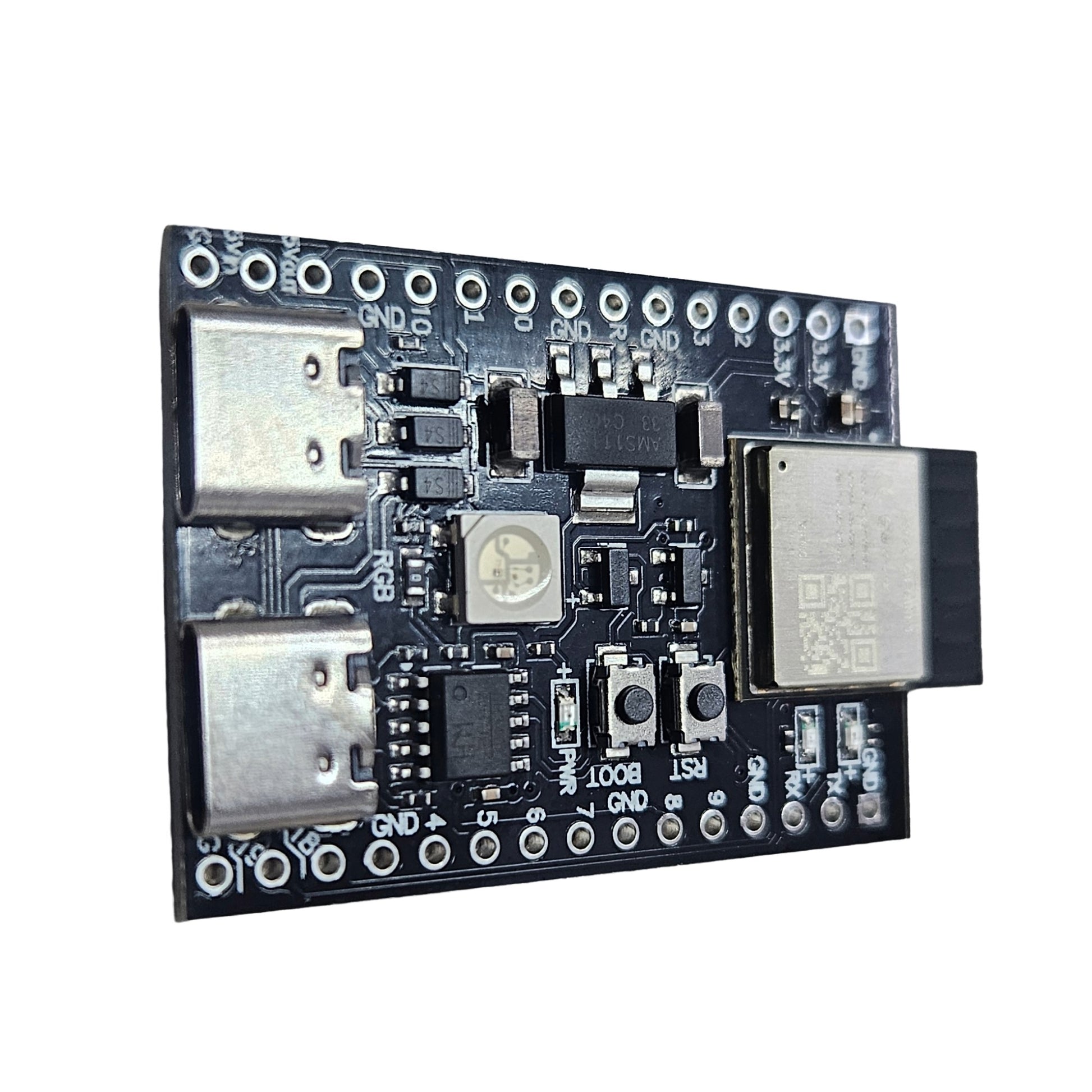

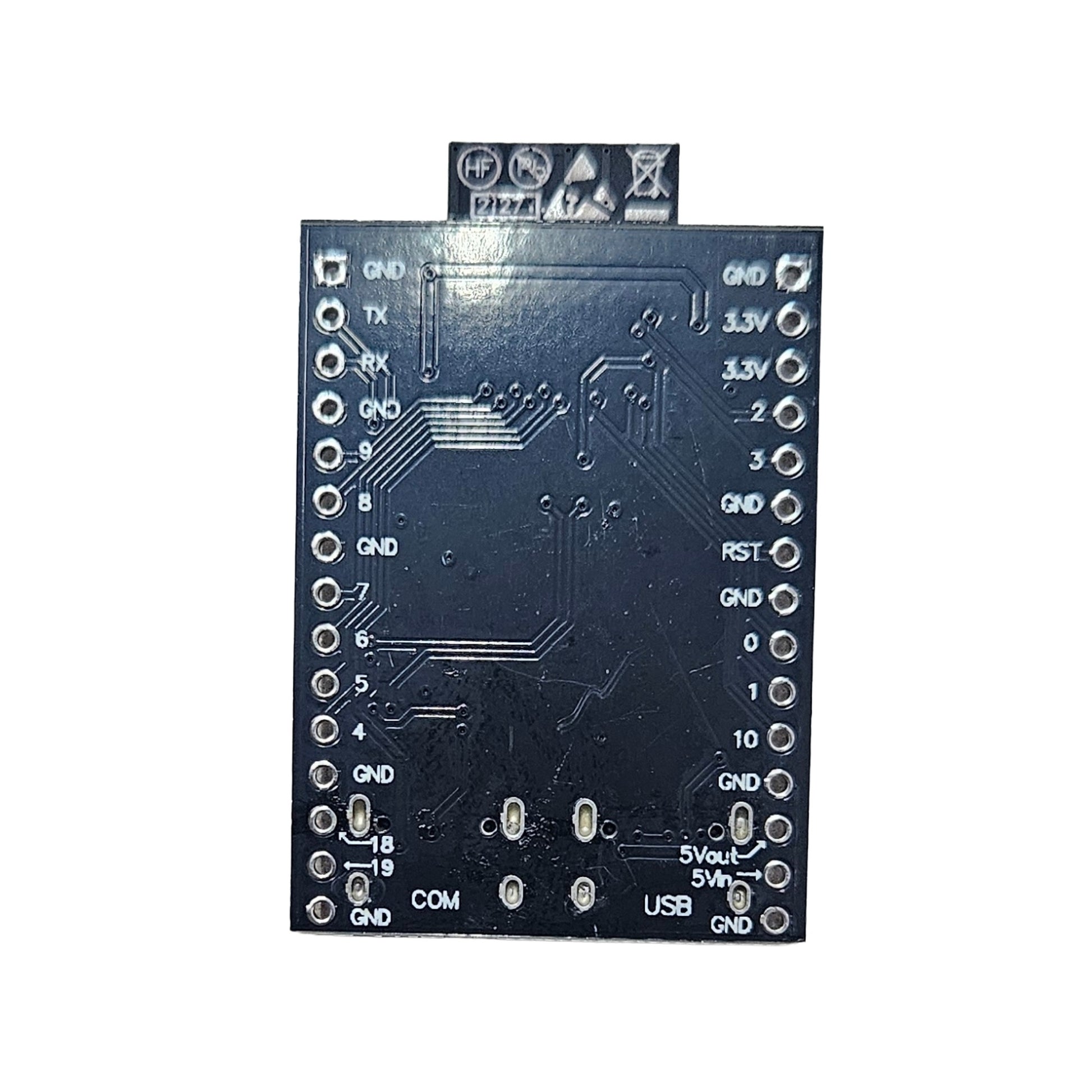

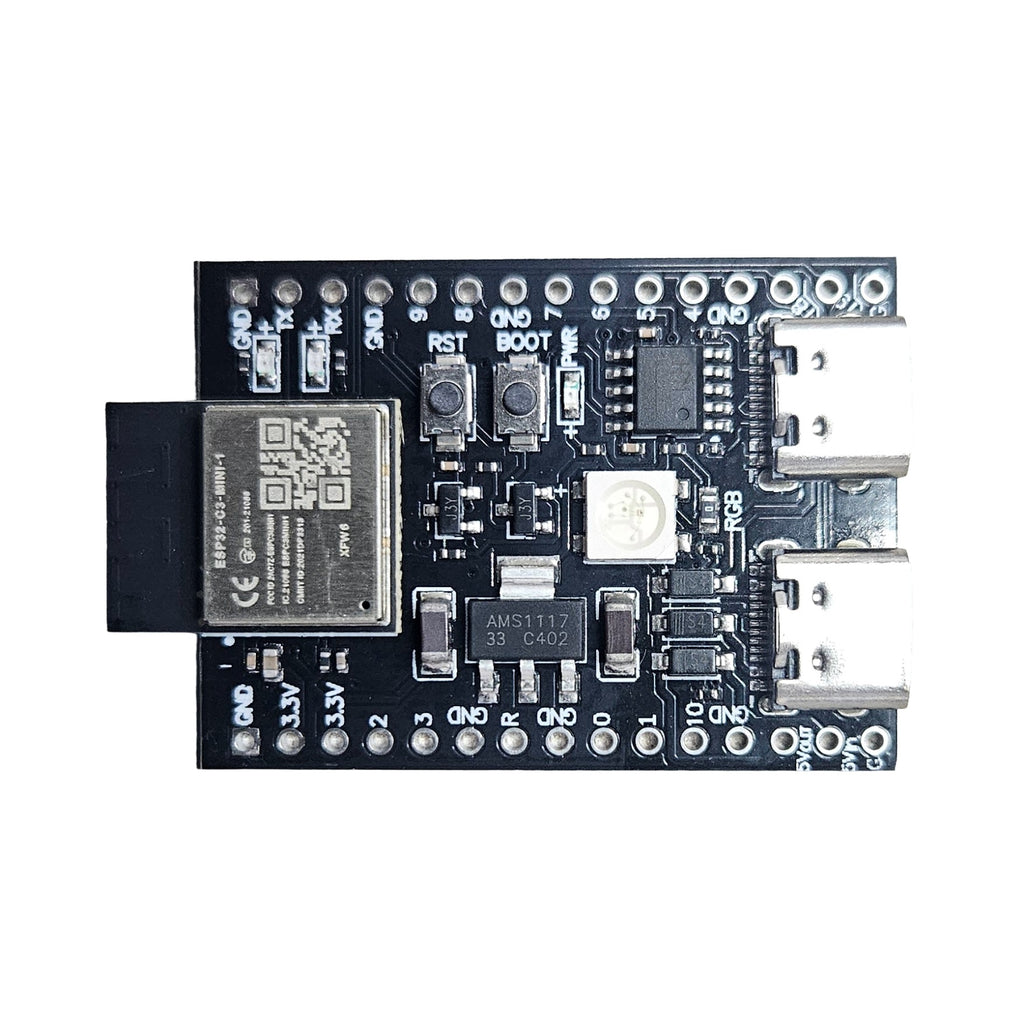

ESP32-C3 Mini Dual USB Development Board – WiFi Bluetooth IoT Module with Type-C and Micro USB
ESP32-C3 Mini Dual USB Development Board – WiFi Bluetooth IoT Module with Type-C and Micro USB
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
This ESP32-C3 Mini Dual USB Development Board is a compact IoT development board based on the ESP32-C3 WiFi + Bluetooth module. It is suitable for IoT projects, wireless control, sensor monitoring, smart home automation, robotics, embedded systems, and DIY electronics projects.

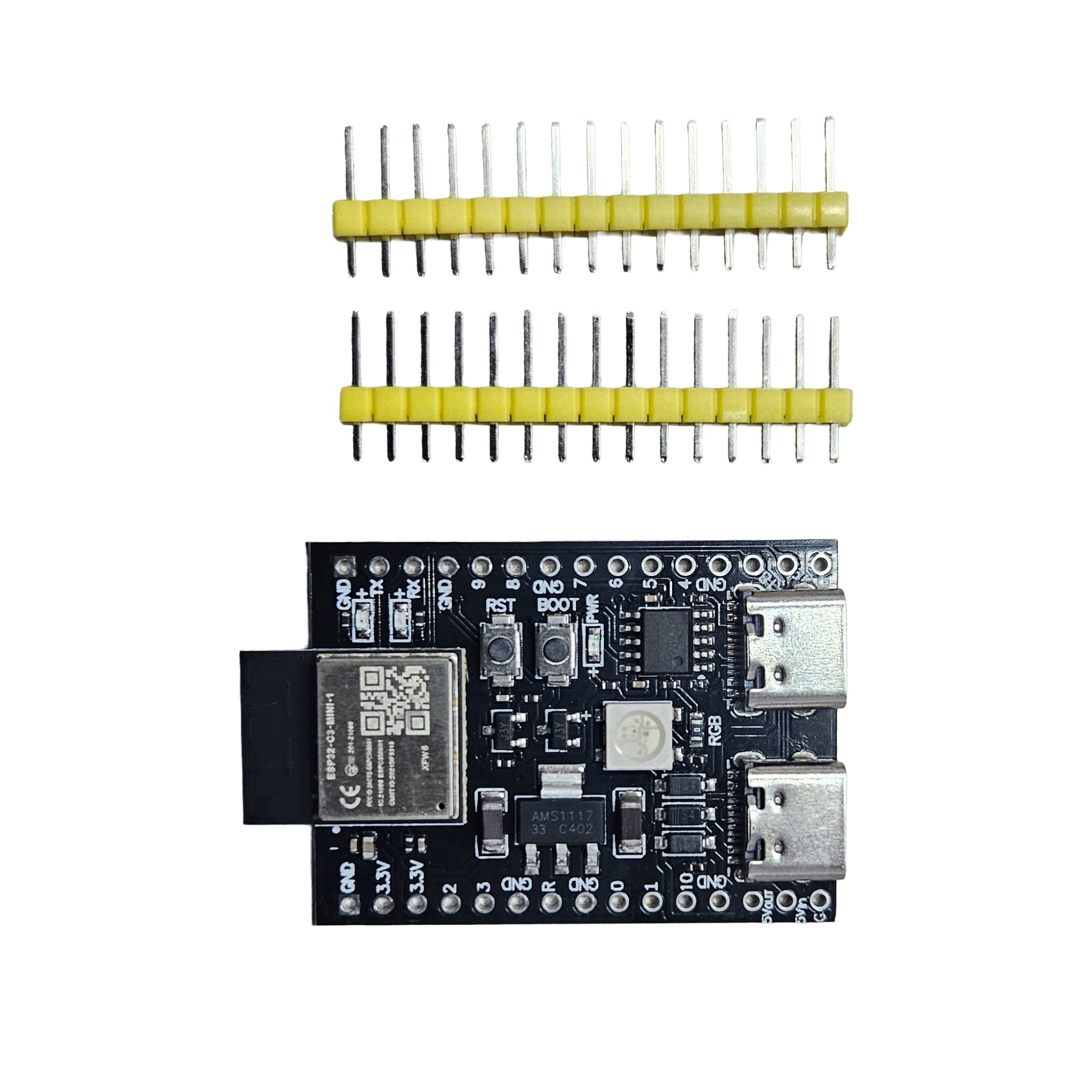

The board comes with dual USB ports, making it convenient for programming and power connection. It also includes onboard buttons, status LED/RGB LED, voltage regulation, and clearly marked GPIO pins for easy project wiring. Header pins are included, so the board can be soldered and used with breadboards, jumper wires, sensors, modules, relays, displays and other electronic components.
The ESP32-C3 is useful for low-power WiFi and Bluetooth-based applications, making this board a good choice for students, makers, hobbyists and developers.
Specifications
| Specification | Details |
|---|---|
| Product Name | ESP32-C3 Mini Dual USB Development Board |
| Product Type | WiFi Bluetooth IoT Development Board |
| Main Chip | ESP32-C3 |
| Module Type | ESP32-C3 Mini type module |
| Wireless Support | WiFi + Bluetooth |
| WiFi Frequency | 2.4GHz |
| USB Ports | Dual USB ports |
| USB Type | Type-C and Micro USB style ports |
| Operating Logic | 3.3V |
| Power Pins | 3.3V, 5V, GND |
| GPIO Pins | Multiple GPIO pins available |
| Onboard Buttons | RST and BOOT buttons |
| Onboard Regulator | AMS1117 3.3V regulator |
| Indicator | Onboard LED / RGB LED |
| Header Pins | Included separately |
| Programming Support | Arduino IDE / ESP-IDF compatible |
| Suitable For | IoT, robotics, sensors, automation, smart home and embedded projects |
Key Features
Compact ESP32-C3 Mini development board.
Supports WiFi and Bluetooth based IoT projects.
Comes with dual USB ports for convenient use.
Clearly marked GPIO pins for easy wiring.
Includes RST and BOOT buttons.
Onboard 3.3V voltage regulator.
Header pins included for soldering and breadboard use.
Suitable for students, makers and electronics project developers.
Important Note
This board uses 3.3V logic level. Do not directly connect 5V signal lines to GPIO pins. For Arduino IDE programming, install the correct ESP32 board package and select a compatible ESP32-C3 board option.
