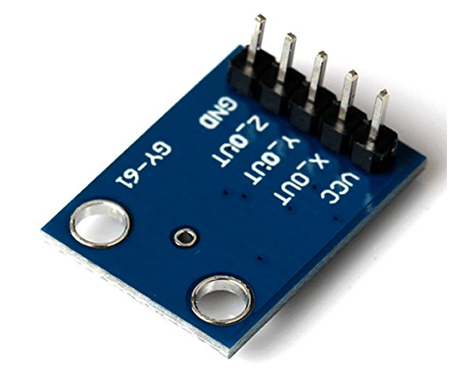

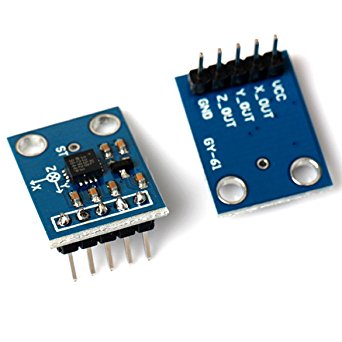

ADXL335 3-Axis Analog Accelerometer Sensor Module

The ADXL335 3-Axis Analog Accelerometer Sensor Module is a compact, low-power motion sensor capable of measuring acceleration along X, Y, and Z axes with a ±3g full-scale range. It provides analog voltage outputs that are easy to interface with microcontrollers such as Arduino, ESP32, ESP8266, Raspberry Pi, and other 3.3V or 5V systems.

This breakout board includes an onboard ultra-low noise LDO voltage regulator, built-in filtering components, and a power status LED, ensuring stable and reliable performance even in electrically noisy environments. The ADXL335 can measure both static acceleration (tilt and orientation) and dynamic acceleration caused by motion, shock, or vibration.

With support for tap, double-tap, and free-fall detection, this sensor is ideal for robotics, drones, gaming devices, and vibration monitoring applications. The bandwidth of each axis can be customized using external capacitors, allowing precise tuning for different use cases.

Key Features

• Triple-Axis Acceleration Measurement (X, Y, Z)

• Full-Scale Range: ±3g

• Analog Voltage Output

• Onboard Ultra-Low Noise LDO Voltage Regulator

• Compatible with 3.3V & 5V Microcontrollers

• Tap / Double-Tap Detection

• Free-Fall Detection

• Built-in Onboard Filters to reduce motor and power noise

• Ultra-Low Power Consumption

  • 40µA in measurement mode

  • 0.1µA in standby @ 2.5V

• Power LED Indicator

• High Shock Survival: up to 10,000g

• All Required Components Pre-Soldered

Bandwidth Configuration

• X & Y Axis: 0.5 Hz to 1600 Hz

• Z Axis: 0.5 Hz to 550 Hz

Bandwidth can be adjusted using external capacitors (CX, CY, CZ) connected to the output pins.

Technical Specifications

• Sensor IC: ADXL335

• Output Type: Analog

• Operating Voltage (Sensor): 1.8V – 3.6V

• Board Input Voltage: 3V – 5V

• Power Consumption: ~350µA typical

• Measurement Axes: X, Y, Z

• Acceleration Range: ±3g

Applications

• FPV drones, RC vehicles, and robotics

• GPS navigation and stabilization systems

• Motion-activated devices

• Gaming and virtual reality controllers

• Impact detection and data logging

• Vibration monitoring and compensation

• Free-fall and orientation detection

• Intelligent power-saving systems
