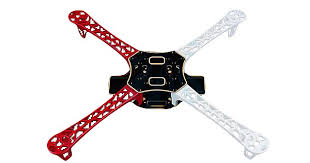

Drone Frame F450-Quadcopter

The  F450 quadcopter frame kit, a very popular and widely used drone frame for hobby and educational purposes.

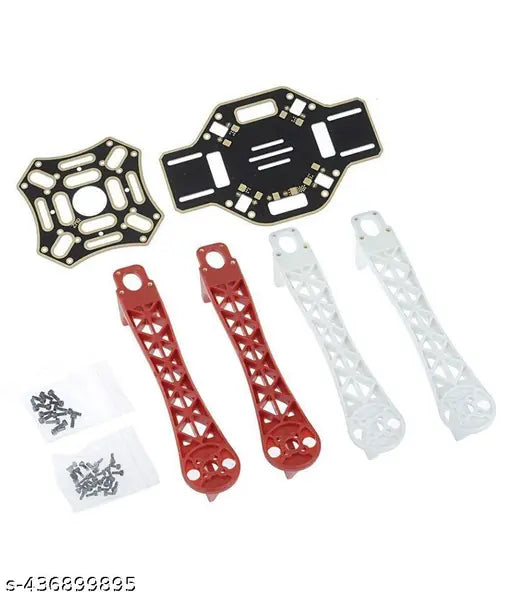

F450 Frame Kit :

1. 4 Arms (2 Red + 2 White)

   • Material: Nylon with reinforced fiberglass

   • Color Code:

     • Red – typically used for front arms

     • White – used for rear arms

   • Motor Mounts: Compatible with most 22XX brushless motors

2. 2 Center Plates (Top and Bottom)

   • Bottom Plate:

     • Often includes a Power Distribution Board (PDB) for ESC connections

   • Top Plate:

     • Mounting surface for the flight controller

     • Multiple slots for cable management and tie mounts

3. Screw Set

   • Screws and nuts for assembling the arms and plates securely

Uses and Compatibility:

• Drone Type: Quadcopter (X-configuration)

• Motors: Typically 2212 1000KV or similar

• Flight Controllers: APM, KK2.1.5, Naza, Pixhawk, etc.

• ESCs: 20A–30A, depending on motor specs

• Propellers: 8"–10"

• Battery: 3S or 4S LiPo
