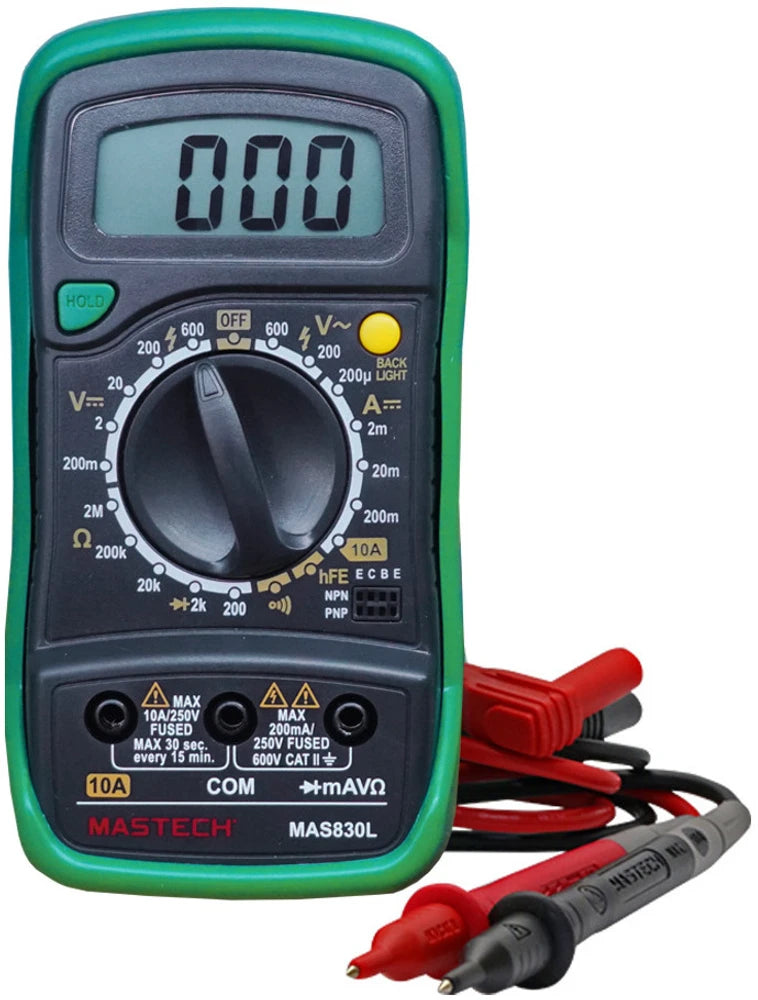

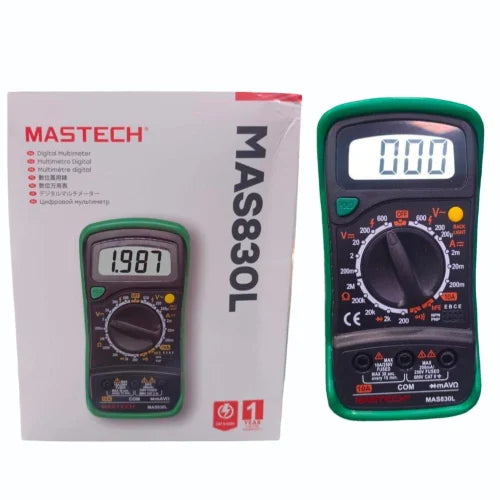

Mastech MAS830L Digital Multimeter – 2000 Counts LCD Display, AC/DC Voltage, DC Current, Resistance, Temperature, Data Hold & Backlight
Mastech MAS830L Digital Multimeter – 2000 Counts LCD Display, AC/DC Voltage, DC Current, Resistance, Temperature, Data Hold & Backlight
Regular price
Rs. 825.00
Regular price
Rs. 1,364.00
Sale price
Rs. 825.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The Mastech MAS830L Digital Multimeter is a compact pocket-size measuring instrument suitable for electronics repair, electrical testing, DIY projects, lab work and general troubleshooting. It comes with a 2000 counts LCD display and can measure AC voltage, DC voltage, DC current, resistance and temperature.
This multimeter also includes useful features such as data hold, backlight display, low battery indication and over-range indication, making it convenient for students, technicians, electricians, hobbyists and electronics service work. It supports voltage measurement up to 600V AC/DC and DC current measurement up to 10A.
Specifications
| Specification | Details |
|---|---|
| Product Type | Digital Multimeter |
| Brand | Mastech |
| Series | MAS830 Series |
| Model | MAS830L |
| Display | 2000 Counts LCD Display |
| Maximum Display Value | 1999 |
| AC Voltage Range | Up to 600V |
| DC Voltage Range | Up to 600V |
| DC Current Range | Up to 10A |
| Resistance Measurement | Yes |
| Temperature Measurement | Yes |
| Data Hold | Yes |
| Backlight | Yes |
| Low Battery Indication | Yes |
| Over Range Indication | “1” on display |
| Safety Rating | CAT II 600V |
| Waterproof Rating | IP20 |
| Fuse | F1: 250mA / 250V, F2: 10A / 250V |
| Power Supply | 9V Battery, NEDA 1604 or 6F22 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Relative Humidity | <80% RH |
| Altitude | <2000m |
| Dimension | 144 × 74 × 40 mm |
| Weight Without Rubber Case | About 160g |
| Weight With Rubber Case | About 250g |
| Suitable For | Electronics repair, electrical testing, students, lab use, DIY projects |
| Package Includes | 1 × Mastech MAS830L Digital Multimeter |
