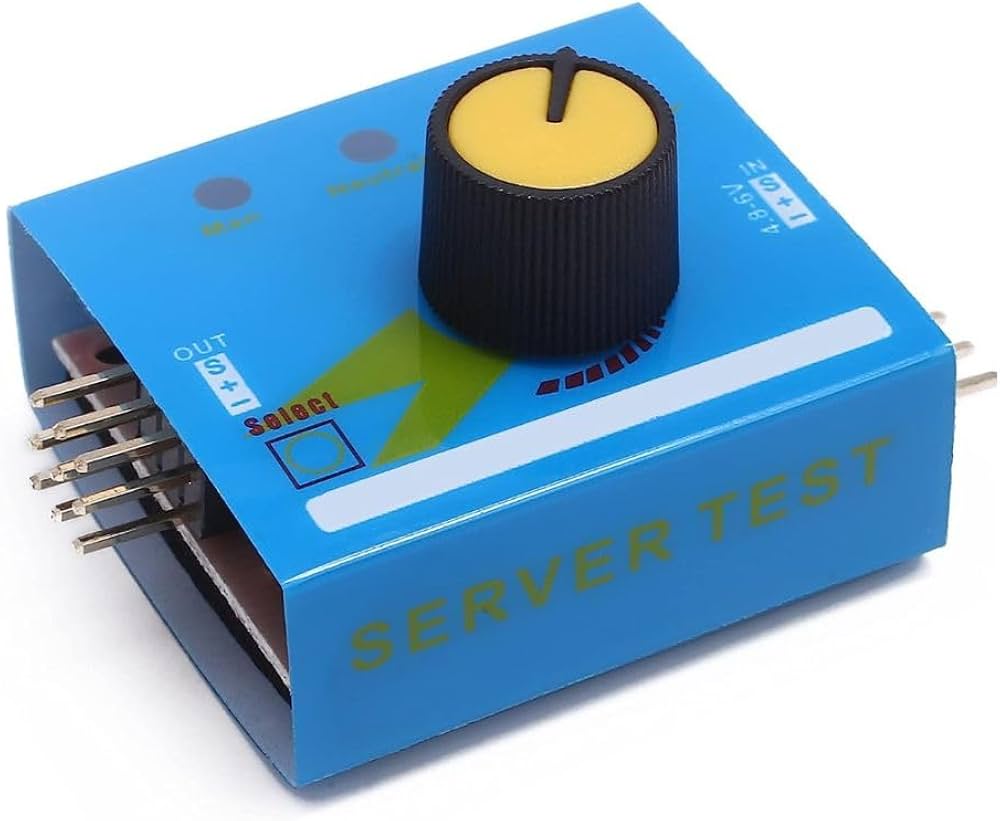

Digital Multi Servo Tester

Digital Multi Servo Tester

Features:

• Operation Modes:
  • Manual Mode: Turn the knob to control the servo's rotational angle manually and observe the response time.
  • Neutral Mode: Sets the servo to its neutral point.
  • Automatic "Window Wiper" Mode: Makes the servo swing back and forth like a window wiper, testing its range of motion.
• Connects Up To Three Servos Simultaneously: Test multiple servos at once.
• LED Indicators: Visual indicators for operation status.
• Digital Multi Servo Tester: Can be used as a signal generator for ESCs and servo motors, allowing motor system testing without a transmitter and receiver.

Specifications:

• Dimensions:

  • Length: 35 mm
  • Width: 30 mm
  • Height: 15 mm
  • Knob Diameter: 12 mm

• Operating Voltage: DC 4.8-6V

• Output Signal: 1.5ms ± 0.5ms

Usage:

• Power Input: Provide 5V to the tester.
• Servo Connection: Connect your servo to one of the outputs.
• Control: Use the onboard rotary knob to manually control the servo’s rotational angle.

This servo tester is ideal for manually controlling and testing servos and Brushless Motor ESCs, making it an essential tool for prototyping and troubleshooting.
