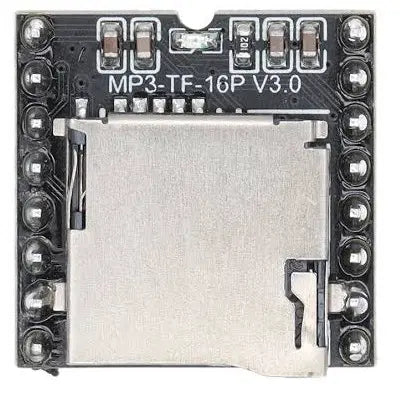

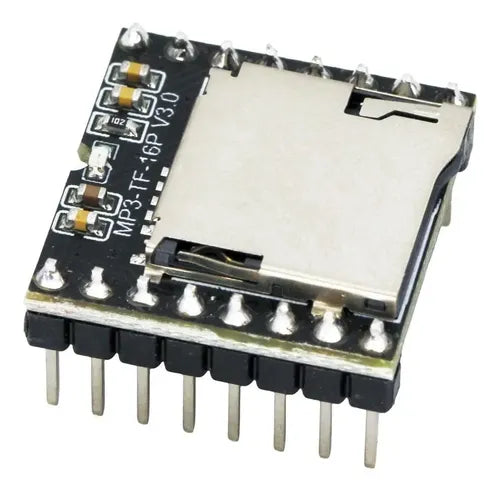

DFPlayer Mini MP3 Player Module 16PF V3.0 | Arduino Compatible
DFPlayer Mini MP3 Player Module 16PF V3.0 | Arduino Compatible
Couldn't load pickup availability
š¦ For Bulk Order Enquiry ā Click Here for Best Price
The DFRobot DFPlayer Mini MP3 Player Module is a compact, low-cost audio playback module with a built-in 24-bit DAC and direct speaker output. It supports micro SD (TF) cards up to 32GB and can be used as a standalone audio player or easily integrated with Arduino, ESP32, Raspberry Pi, and other microcontrollers via UART serial communication.
Ideal for voice prompts, alarms, announcements, and embedded audio projects
Key Features (Bullet Points ā Easy Scan)
-
šµ Supports MP3, WAV, and WMA audio formats
-
š Built-in 24-bit DAC with 90dB dynamic range
-
š Supports FAT16 / FAT32 file systems
-
š¾ TF (micro SD) card supports up to 32GB
-
šļø 30-level volume control and 6-level EQ adjustment
-
šļø Multiple control modes: Serial (UART), I/O, AD Key
-
š Works with Arduino, ESP32, Raspberry Pi, and UART MCUs
-
š Operates on 3.2V ā 5V DC
-
š Compact size: 20 Ć 20 mm
| Parameter | Details |
|---|---|
| Supply Voltage | 3.2V ā 5V DC |
| DAC Resolution | 24-bit |
| Dynamic Range | 90 dB |
| Signal-to-Noise Ratio | 85 dB |
| Supported Sampling Rates | 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 kHz |
| File System | FAT16, FAT32 |
| Storage Support | TF card up to 32GB, USB disk up to 32GB |
| Control Modes | Serial (UART), I/O Mode, AD Key Mode |
| Adjustable Volume | 30 levels |
| EQ Modes | 6 levels |
| Operating Temperature | -40Ā°C to +70Ā°C |
| Dimensions | 21 Ć 21 Ć 10 mm |
| Weight | ~5 g |
