DC to DC Power Module

DC-DC 12V to 3.3V, 5V, 12V Multi-Output Power Conversion Module

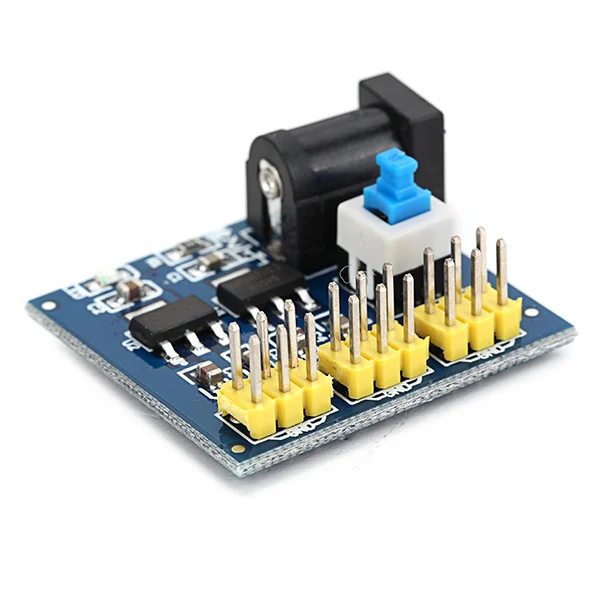

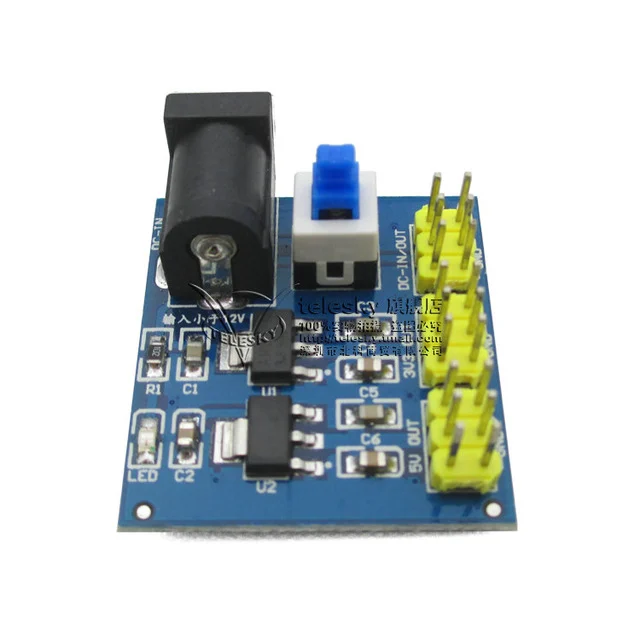

This compact and efficient DC-DC step-down (buck) converter module provides a reliable solution for stepping down a 6V to 12V DC input into multiple stable output voltages: 3.3V, 5V, and a direct pass-through of the input voltage. It ensures compatibility with various power requirements, making it ideal for powering different components in electronics projects.

With its simplicity and versatility, this module is a must-have for any electronics hobbyist or designer, providing stable auxiliary power for embedded systems, sensors, and microcontrollers.

Key Features:

• Multiple Voltage Outputs:

  • 3.3V DC, maximum 800mA
  • 5.0V DC, maximum 800mA
  • A third output that directly mirrors the input voltage, e.g., 9V input results in a 9V output.

• On/Off Switch: A convenient power on/off switch for controlling power flow.

• Easy Connectivity: Multiple pin headers arranged for quick and hassle-free connections.

• Power Status Indicator: A red LED indicates when power is supplied and outputs are active.

• Dual-Side PCB Design: Compact and durable with a double-sided plate construction for long-term reliability.

Specifications:

• Input Voltage: 6V to 12V DC
• Output Voltage: 3.3V, 5V, and passthrough (same as input)
• Current Rating: Up to 800mA for 3.3V and 5V outputs
• Voltage Tolerance: ±0.05V for 3.3V and 5V outputs
• Connector Type: 5.5mm barrel jack input
• Compact Design: Easy to integrate into any project or device

This module offers a robust power supply solution for DIY enthusiasts and professionals alike. It's perfect for creating multi-output fixed voltage DC power supplies in various applications.
