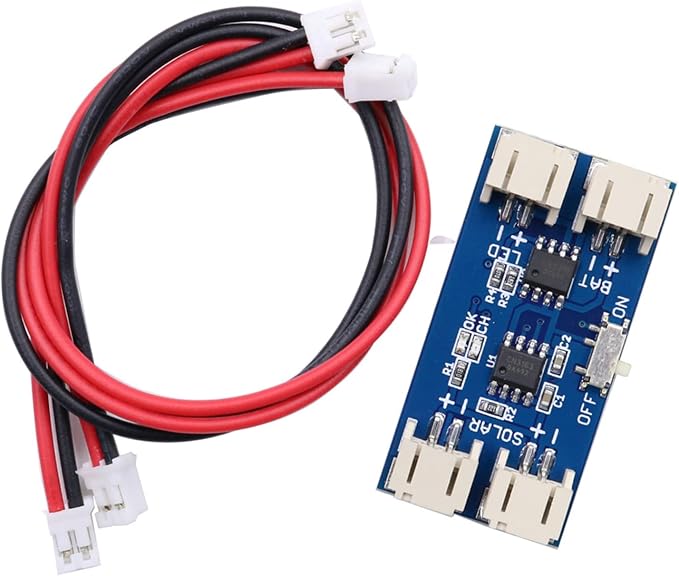

CN5711 Solar LED Driver Module – 1.5A High Brightness LED Constant Current Driver
CN5711 Solar LED Driver Module – 1.5A High Brightness LED Constant Current Driver
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The CN5711 Solar LED Driver Module is a compact constant-current LED driver module designed for high-brightness LED applications. It is suitable for solar LED lights, DIY lighting projects, emergency lamps, rechargeable lighting systems and electronics experiments.
This module is based on the CN5711 high-brightness LED driver IC, which supports LED driving current up to 1.5A. It can be used to power high-power LEDs with stable current output, helping improve LED brightness stability and protection compared with direct battery connection. The CN5711 IC works with low input voltage applications and supports current setting using an external resistor.
Specifications
| Specification | Details |
|---|---|
| Product Type | Solar LED Driver Module |
| Driver IC | CN5711 |
| Function | High brightness LED constant current driver |
| Maximum LED Current | Up to 1.5A |
| Input Voltage Range | 2.8V to 6V |
| Output Type | Constant current LED output |
| Current Setting | External resistor based |
| LED Current Range | Approx. 30mA to 1.5A |
| IC Package | SOIC-8 / ESOP-8 type IC |
| Suitable LED Type | High power LED / high brightness LED |
| Protection Features | Over-current and over-temperature protection |
| Application | Solar LED light, emergency lamp, DIY LED driver, rechargeable light |
| Suitable For | Electronics projects, LED lighting repair, solar lamp projects, hobby use |
| Package Includes | 1 × CN5711 Solar LED Driver Module |
