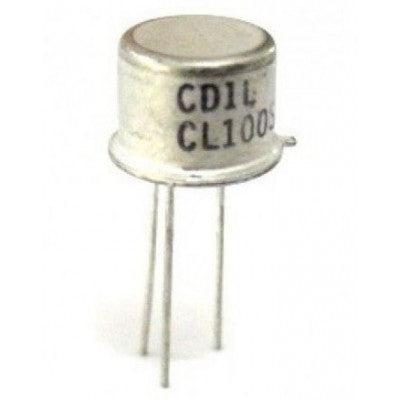

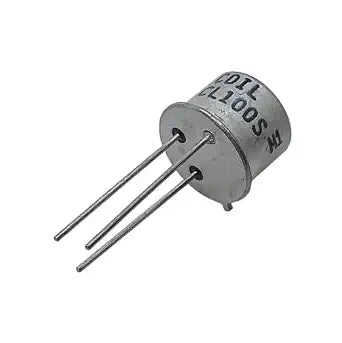

CL100S NPN Medium-Power Transistor – 50V 1A Silicon Planar Amplifier and Switching Transistor, TO-39 Metal Can

The CL100S transistor is a silicon NPN bipolar junction transistor designed for medium-power amplification and switching applications. It is suitable for electronic circuits that require higher current handling than common small-signal transistors.

The transistor supports a maximum collector-emitter voltage of 50V, collector-base voltage of 60V, emitter-base voltage of 5V, and collector current up to 1A. It is supplied in a durable TO-39 metal-can package, which provides better mechanical strength and heat dissipation than many small plastic transistor packages.

The CL100S can be used as an amplifier for medium-current analog signals or as an electronic switch for LEDs, buzzers, small relays, motors and other compatible loads. A suitable base resistor and load-protection components must be used according to the circuit.

Its rated power dissipation is approximately 800mW in free air at 25°C and up to 3W when the transistor case is maintained at 25°C under suitable heat-dissipation conditions. Actual safe power depends heavily on mounting, airflow, ambient temperature and operating conditions.

The CL100S is useful for electronics students, hobbyists, service technicians and circuit developers working on amplifier, driver, control and general-purpose switching projects.

Common Applications

• Medium-power amplifier circuits
• Audio driver stages
• LED driver circuits
• Small relay driver circuits
• Buzzer and alarm circuits
• Small DC motor switching
• Signal amplification
• Transistor switching circuits
• Voltage-regulator circuits
• Oscillator circuits
• Sensor-output driver stages
• Arduino and microcontroller interfacing
• Educational electronics experiments
• Electronic repair work
• DIY PCB projects

Package Contents: 1 × CL100S NPN Transistor
