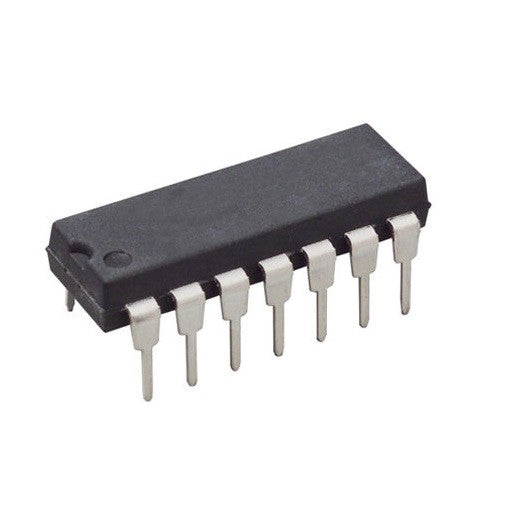

CD4011 IC Quad 2-Input NAND Gate CMOS Logic IC
CD4011 IC Quad 2-Input NAND Gate CMOS Logic IC
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The CD4011 IC is a high-performance CMOS Quad 2-Input NAND Gate Logic IC containing four independent NAND gates in a single 14-pin DIP package. It is widely used in digital electronics, logic circuits, timing applications, oscillators, switching circuits, and educational electronics projects.
The CD4011 operates with a wide supply voltage range and offers low power consumption, high noise immunity, and excellent reliability. Each NAND gate can be used individually or combined with other gates to create complex digital logic functions.
This IC is suitable for students, engineers, hobbyists, and electronic designers working on Arduino interfacing, digital logic experiments, control circuits, and custom electronic projects.
Specifications
| Specification | Details |
|---|---|
| IC Name | CD4011 |
| IC Type | Quad 2-Input NAND Gate |
| Logic Family | CMOS |
| Number of Gates | 4 Independent NAND Gates |
| Number of Inputs | 2 Inputs per Gate |
| Package Type | DIP-14 |
| Supply Voltage | 3V to 15V DC |
| Typical Operating Voltage | 5V, 9V, 12V |
| Low Power Consumption | Yes |
| High Noise Immunity | Yes |
| Operating Temperature | -55°C to +125°C (Typical) |
| Mounting Type | Through Hole |
| Output Type | CMOS Logic Output |
Pin Configuration (DIP-14)
| Pin No. | Function |
|---|---|
| 1 | Gate 1 Input A |
| 2 | Gate 1 Input B |
| 3 | Gate 1 Output |
| 4 | Gate 2 Output |
| 5 | Gate 2 Input A |
| 6 | Gate 2 Input B |
| 7 | GND |
| 8 | Gate 3 Output |
| 9 | Gate 3 Input A |
| 10 | Gate 3 Input B |
| 11 | Gate 4 Output |
| 12 | Gate 4 Input A |
| 13 | Gate 4 Input B |
| 14 | VCC |
Features
- Quad 2-input NAND gate IC
- CMOS technology for low power operation
- Wide operating voltage range
- High noise immunity
- Stable and reliable performance
- Available in standard DIP-14 package
- Easy to use in breadboard and PCB projects
- Suitable replacement for many NAND gate applications
Applications
- Digital Logic Circuits
- NAND Gate Experiments
- Oscillator Circuits
- Clock Pulse Generators
- Alarm Circuits
- Switching Circuits
- Frequency Divider Circuits
- Control Logic Systems
- Educational Electronics Kits
- DIY Electronic Projects
