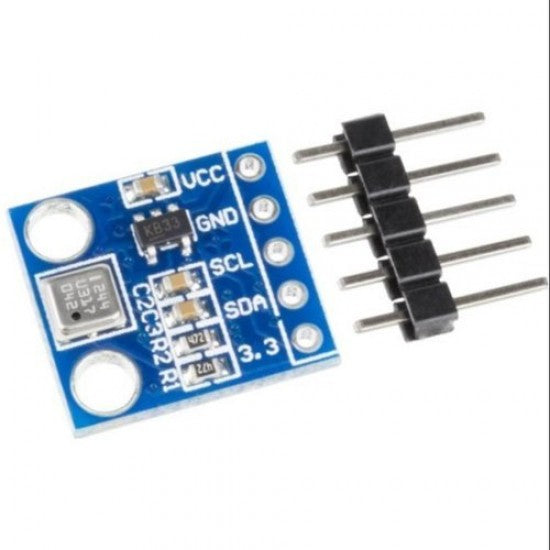

BMP180 Barometric Pressure Sensor

BMP180  Barometric Pressure Sensor

The BMP180 Barometric Pressure Sensor Module is a high-precision digital sensor designed to measure atmospheric pressure and temperature. It communicates through the I²C interface, enabling seamless integration with microcontrollers such as Arduino, ESP32, ESP8266, Raspberry Pi, and other embedded platforms. The sensor is widely used in weather monitoring, altitude estimation, environmental sensing, and navigation applications.

• Sensor IC: BMP180
• Measured Parameters: Atmospheric Pressure, Temperature
• Communication Interface: I²C
• Supply Voltage: 1.8 V to 3.6 V
• Pressure Measurement Range: 300 to 1100 hPa
• Pressure Resolution: 0.01 hPa
• Temperature Measurement Range: -40°C to +85°C
• Temperature Resolution: 0.1°C
• Digital Output: Yes
