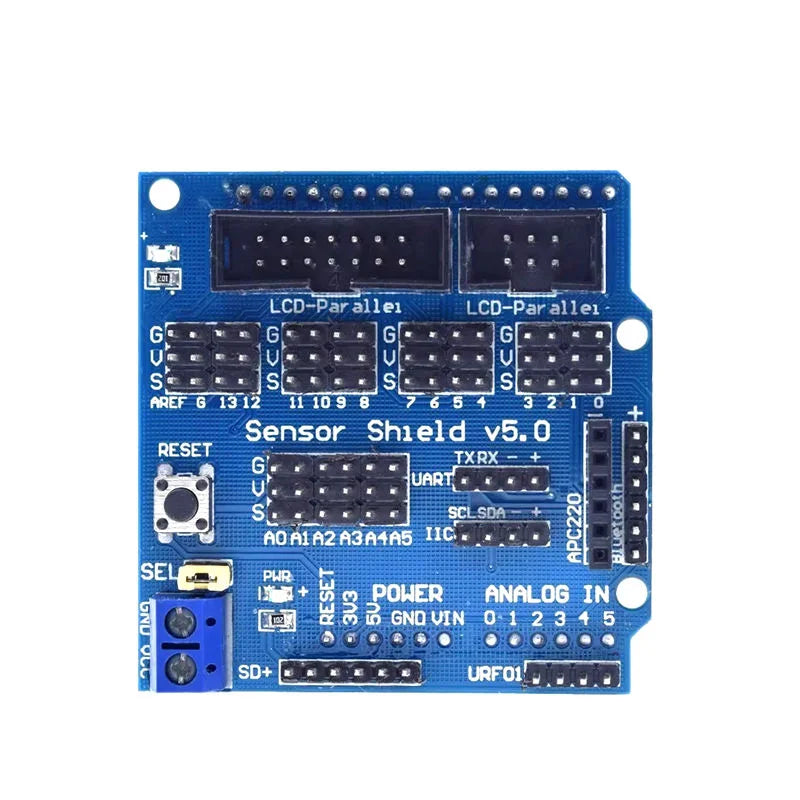

Arduino Sensor Shield V5.0 – Sensor and Servo Connection Board

The Arduino Sensor Shield V5.0 provides labelled connections for attaching compatible sensors, servo motors and modules to an Arduino UNO-style board.

It brings the digital pins D0–D13 and analog pins A0–A5 to three-pin headers arranged as G (Ground), V (Power) and S (Signal). This makes wiring easier by placing power and ground connections beside each signal pin.

Features:

• Sensor Shield V5.0

• Three-pin G/V/S connection headers

• Digital pin connections: D0–D13

• Analog pin connections: A0–A5

• I2C header labelled IIC

• UART serial header

• LCD parallel connection headers

• Headers labelled Bluetooth and APC220 for external modules

• External power screw terminal

• Power selection jumper

• Onboard reset button
