Arduino NANO CH340

Arduino NANO CH340

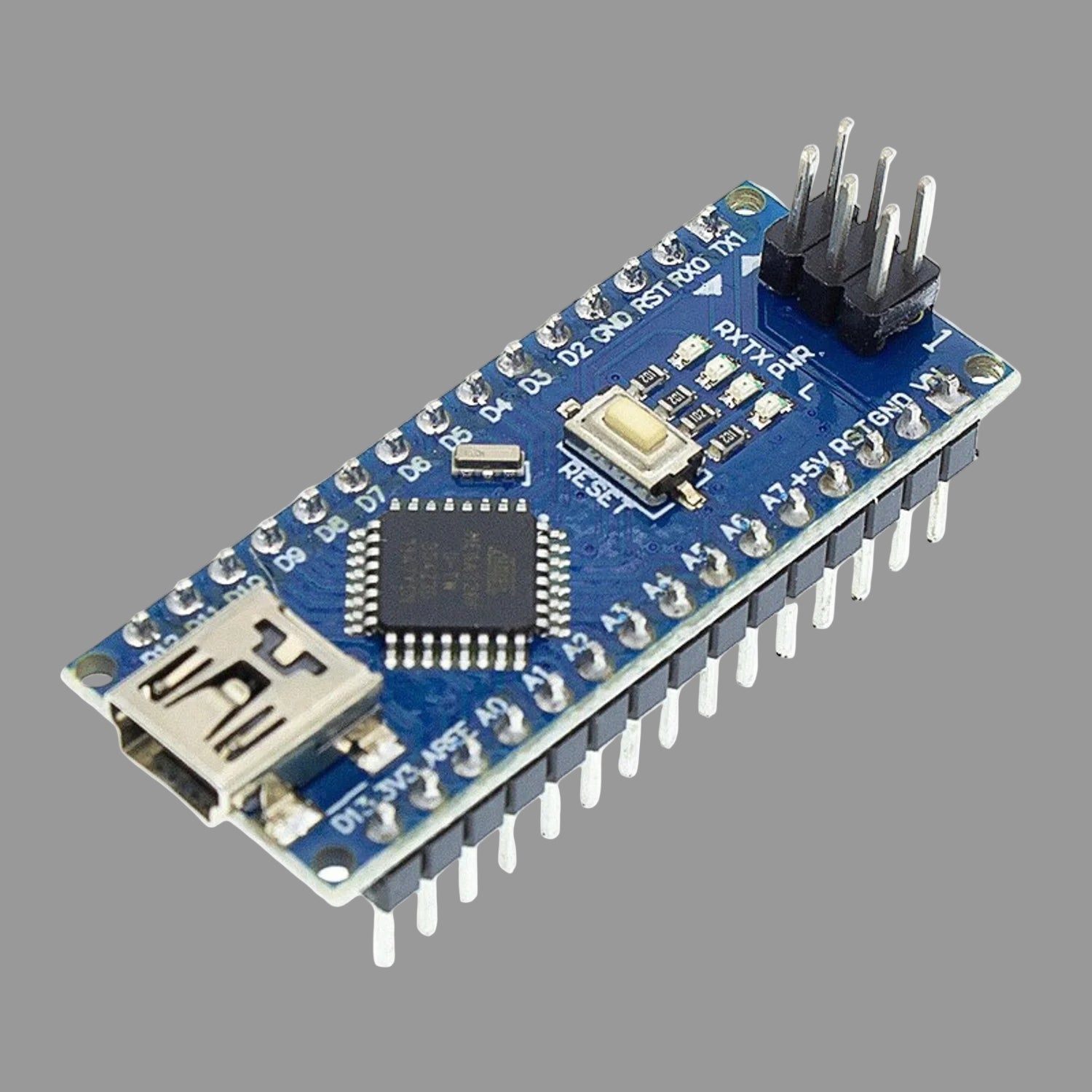

The Arduino Nano CH340 is a compact and breadboard-friendly microcontroller board based on the ATmega328P. It offers the same functionality as the standard Arduino Nano but uses the CH340 USB-to-Serial converter chip instead of the FTDI chip, making it more affordable while maintaining full compatibility with the Arduino IDE.

Specifications

• Microcontroller: ATmega328P (8-bit AVR)
• Operating Voltage: 5V
• Input Voltage (Recommended): 7V – 12V
• Input Voltage (Limit): 6V – 20V
• Digital I/O Pins: 14 (6 PWM outputs)
• Analog Input Pins: 8 (A0–A7)
• Flash Memory: 32 KB (2 KB used by bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
• USB Interface IC: CH340 (USB to Serial converter)
• Power Consumption: Low-power AVR architecture
• Communication: UART, I2C, SPI
• Board Size: Approx. 45 mm × 18 mm
• Programming Port: Mini USB (via CH340 driver)
