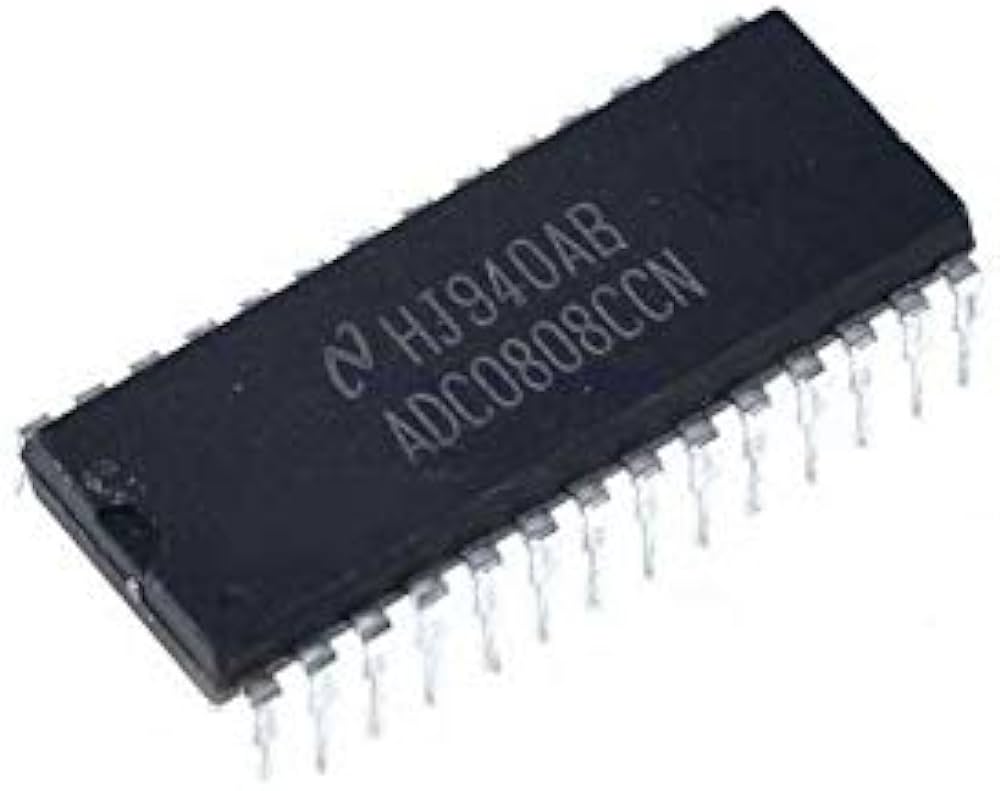

ADC0808CCN 8-bit A/D Converter

ADC0808CCN 8-bit A/D Converter

• Compatible with 8080 mP Derivative: No interfacing logic needed.
• Access Time: 135 ns.
• Easy Interface: Can interface directly with all microprocessors or operate standalone.
• Analog Inputs: Differential voltage inputs.
• Logic Compatibility: Inputs and outputs meet both MOS and TTL voltage level specifications.
• Voltage Reference: Works with a 2.5V (LM336) voltage reference.
• On-Chip Clock Generator: Includes an on-chip clock generator.
• Analog Input Voltage Range: 0V to 5V with a single 5V supply; no zero adjust required.
• Package Options: Available in 0.3× standard width 20-pin DIP package, 20-pin molded chip carrier, or small outline package.
• Operational Modes: Operates ratiometrically or with 5VDC, 2.5VDC, or analog span adjusted voltage reference.
• Resolution: 8 bits.
• Total Error: +1/4 LSB, +1/2 LSB, and +1 LSB.
• Conversion Time: 100 ms
