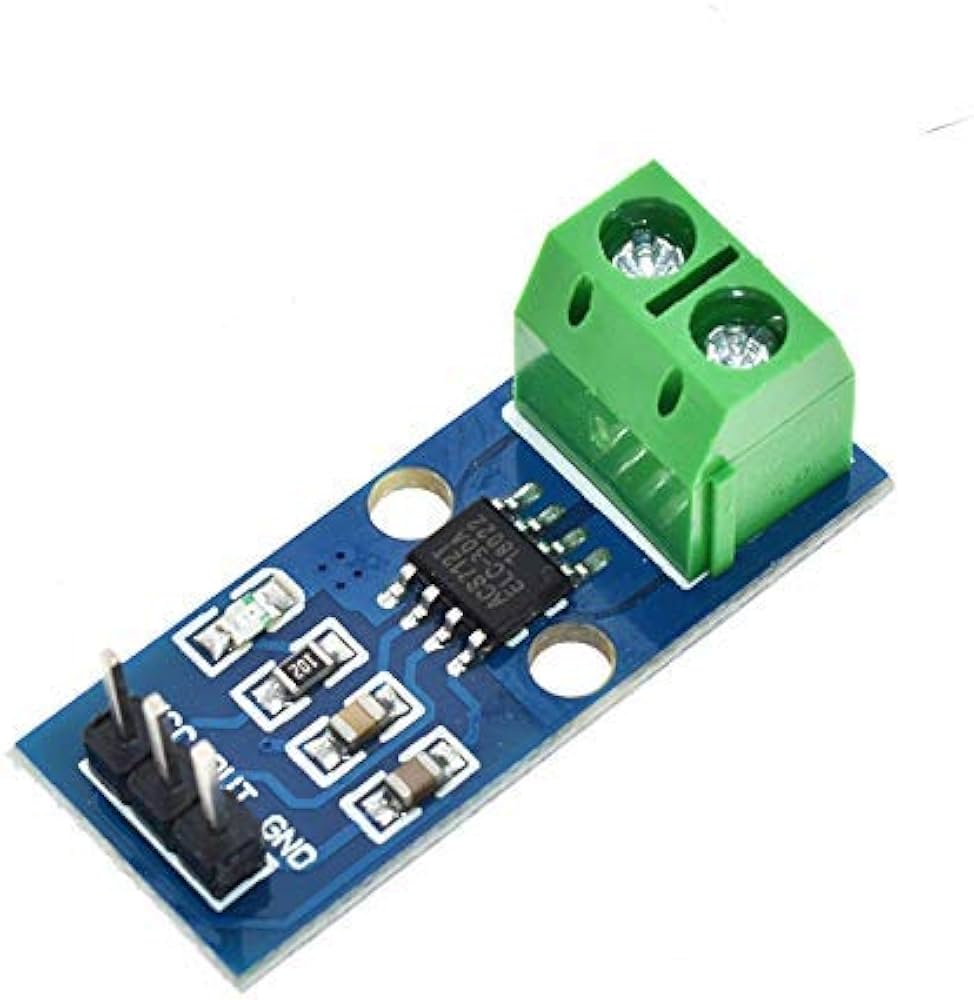

ACS712 Current Sensor-30A

The ACS712 30 A Current Sensor is a Hall-effect-based current sensing module used to measure both AC and DC currents up to ±30 A. It provides an analog voltage output that is proportional to the current flowing through the sensor. The Hall-effect sensing principle provides electrical isolation between the current-carrying conductor and the output signal, making it safe and reliable for electronic measurement systems.

• Sensor Type: current sensor
• Model : ACS 712

• Current Measurement Range: ±30 A (AC/DC)
• Supply Voltage: 4.5 V to 5.5 V DC (5 V typical)
• Output Type: Analog voltage
• Sensitivity: 66 mV/A
• Zero-Current Output Voltage: 2.5 V (at 5 V supply)
