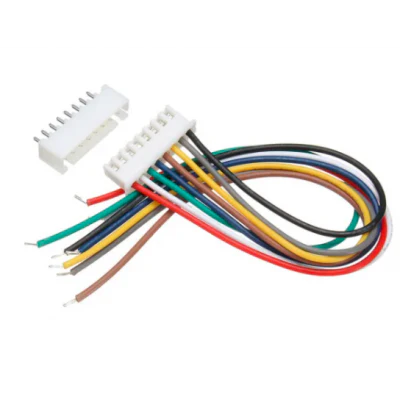

8 Pin RMC Connector With Base

🔍 The 8-Pin RMC/JST Connector Cable:

✅ Connector Type:

• Type: 8-pin Female connector

• Style: Likely JST-XH or JST-SH type

• Pitch: Typically 2.54 mm (sometimes 2.5 mm or 2.0 mm depending on model)

🧰 Common Uses:

• Connecting displays (like TFT/LCDs)

• Interfacing with modules like:

  • Touchscreens

  • Sensor hubs

  • Communication buses (I2C, UART, SPI)

• Plug-and-play connection to PCBs or breakout boards

🎯 Why It's Used:

• Clean modular connections

• Reduces soldering errors

• Color-coded wires make signal identification easier

🌈 Typical Color Sequence:

• Black, Brown, Red, Orange, Yellow, Green, Blue, Violet
  (Used for distinguishing pins like VCC, GND, SDA, SCL, TX, RX, etc.)
