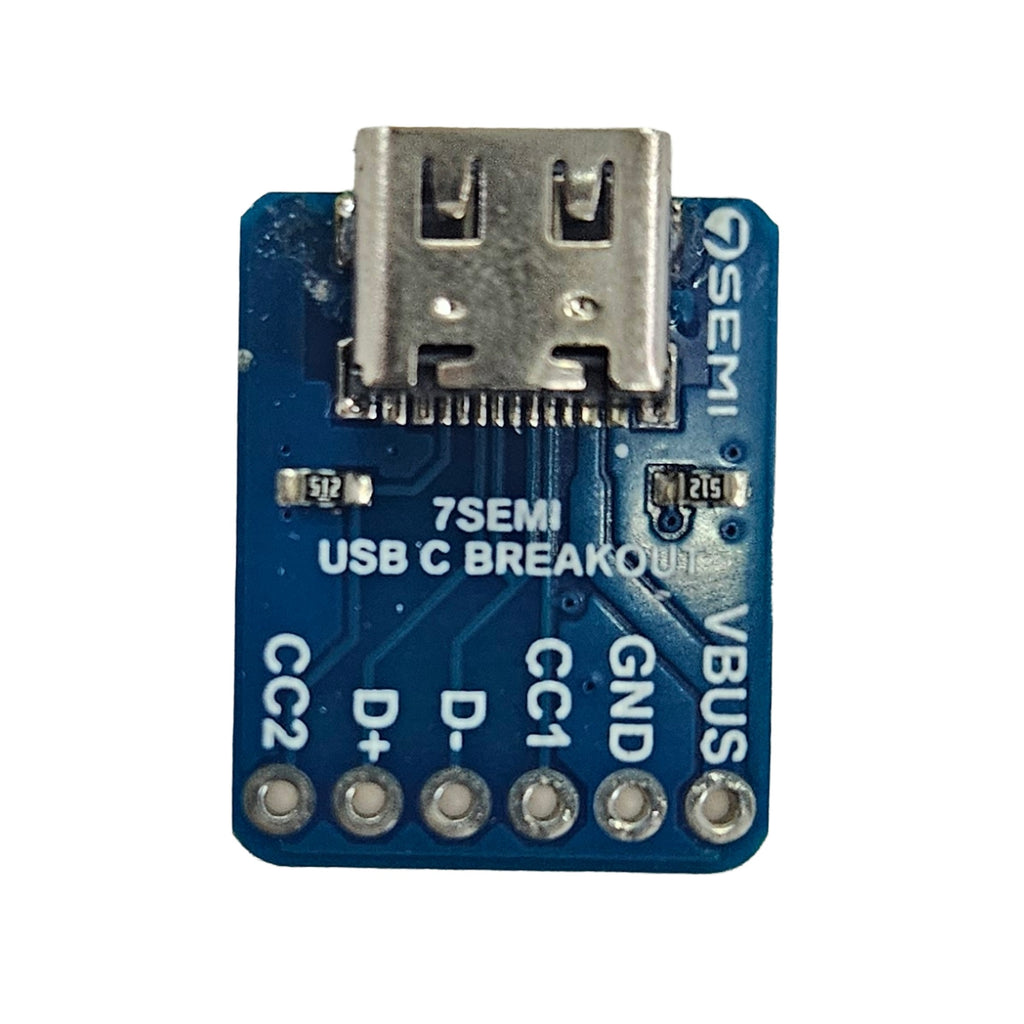

7Semi USB Type-C Female Breakout Board – 6-Pin, CB-10112

The 7Semi CB-10112 USB Type-C Female Breakout Board provides access to USB-C power, data and configuration connections through six labelled pins. It allows you to connect a USB-C socket to your project without soldering the connector’s small surface-mount contacts.

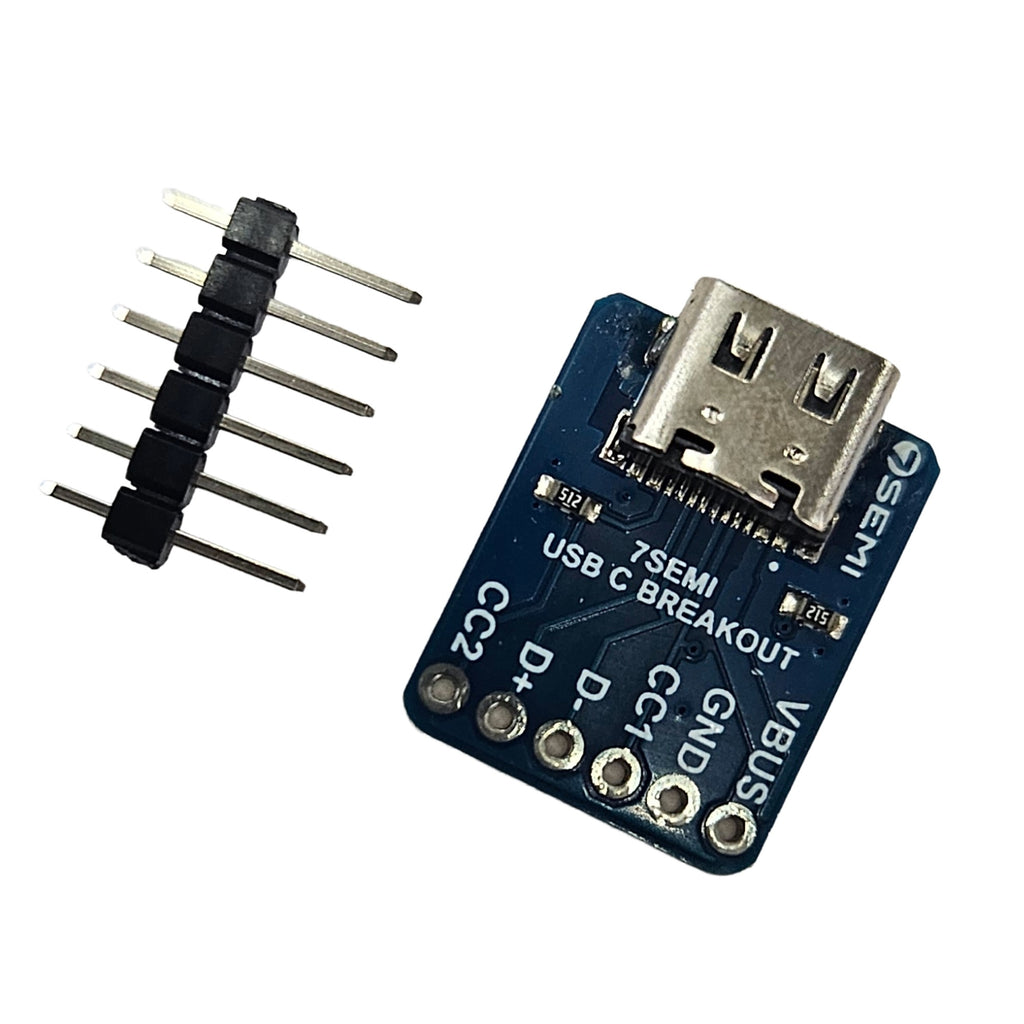

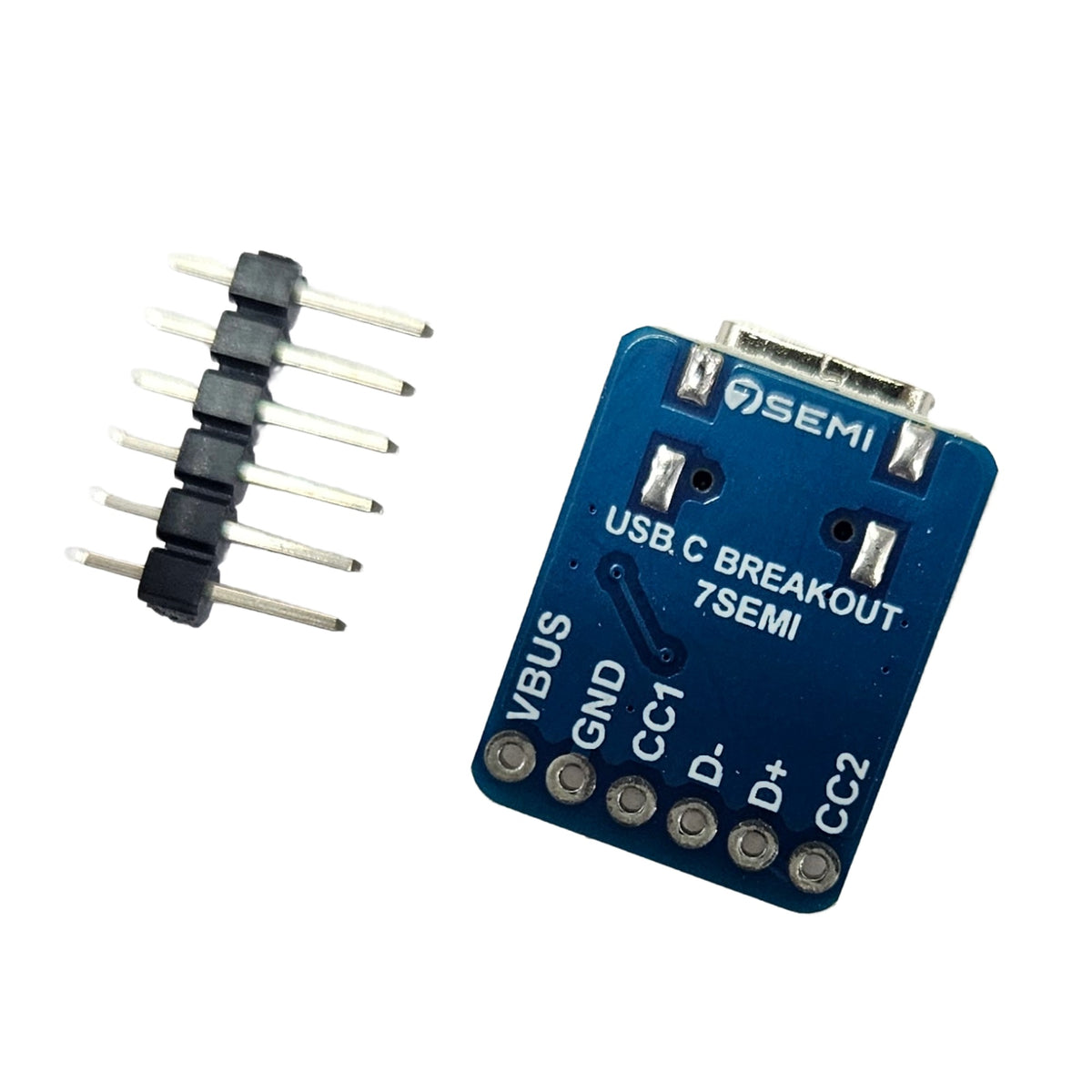

The board exposes VBUS, GND, CC1, CC2, D+ and D− connections. A separate 6-pin male header is supplied for soldering onto the board.

Features:

• Brand: 7Semi

• Model: CB-10112

• USB Type-C female connector

• Six breakout connections: VBUS, GND, CC1, D−, D+ and CC2

• Standard 2.54mm header spacing

• Pin labels printed on the board

• Supplied with an unsoldered 6-pin male header

• Useful for USB-C connection testing and electronics prototyping
