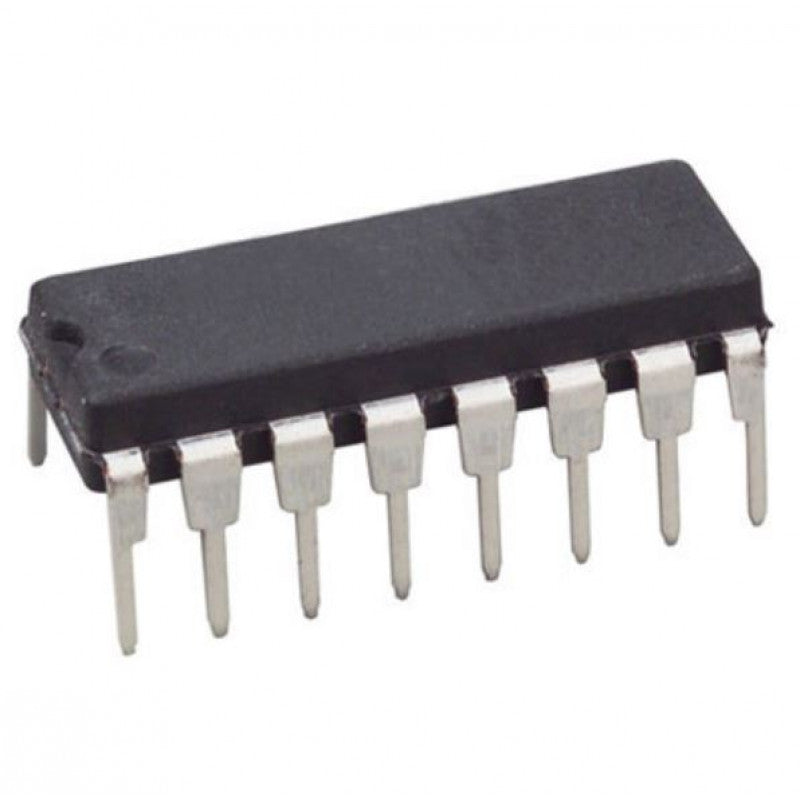

7447 IC – BCD to 7-Segment Decoder / Driver IC for Common Anode Display

The 7447 IC is a BCD-to-7-segment decoder and driver designed to convert a 4-bit Binary-Coded Decimal (BCD) input into the signals required to drive a common-anode 7-segment LED display.

It accepts a BCD number from 0 to 9 at its four input pins and automatically controls the seven display segments to show the corresponding decimal digit. This makes the 7447 useful in digital counters, clocks, scoreboards, frequency displays, digital meters, educational circuits and number display projects.

The 7447 belongs to the 74-series TTL logic family and is commonly available in a 16-pin DIP package, making it suitable for breadboards, IC sockets and through-hole PCB applications.

The outputs of the 7447 are designed for common-anode 7-segment displays and are typically active LOW with open-collector output stages. Suitable current-limiting resistors should be used with the LED display segments.

The IC also includes control functions such as Lamp Test, Ripple Blanking Input and Blanking Input / Ripple Blanking Output, which are useful in multi-digit display systems and leading-zero suppression applications.

Key Features

• BCD to 7-segment decoder / driver
• Drives common-anode 7-segment LED displays
• Converts 4-bit BCD input into decimal digits 0–9
• 7 segment output lines
• TTL 74-series logic family
• Active-LOW open-collector outputs
• Lamp Test function
• Blanking and ripple blanking functions
• Suitable for counters and digital display circuits
• DIP package for easy breadboard and PCB use

Specifications

Important: The 7447 is intended for common-anode 7-segment displays. Use suitable current-limiting resistors for the LED segments and verify the exact IC suffix/manufacturer datasheet before use.
