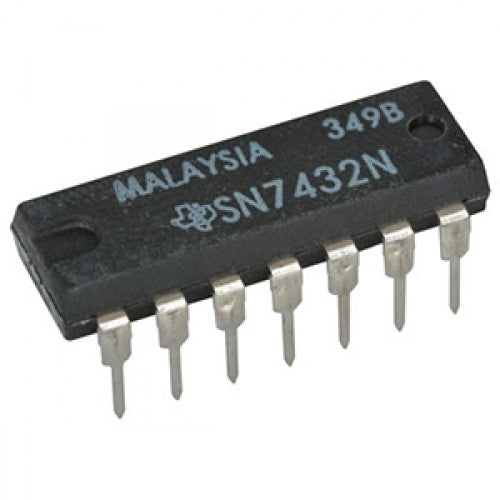

7432 IC

7432 IC

Electrical Characteristics:

• Voltage Rating: 2.0V to 6.0V
• Temperature Rating: 0ºC to 70ºC

Interface and Compatibility:

• Outputs Directly Interface to: CMOS, NMOS, and TTL
• Schmitt Trigger Action: Present at all inputs

Design Features:

• Large Operating Voltage Range: Suitable for various applications
• Low Power Consumption: CMOS technology ensures minimal power usage

Physical Characteristics:

• Number of Pins: 14
• Mounting: Through Hole
• Package Type: DIP-14 (Dual In-line Package
