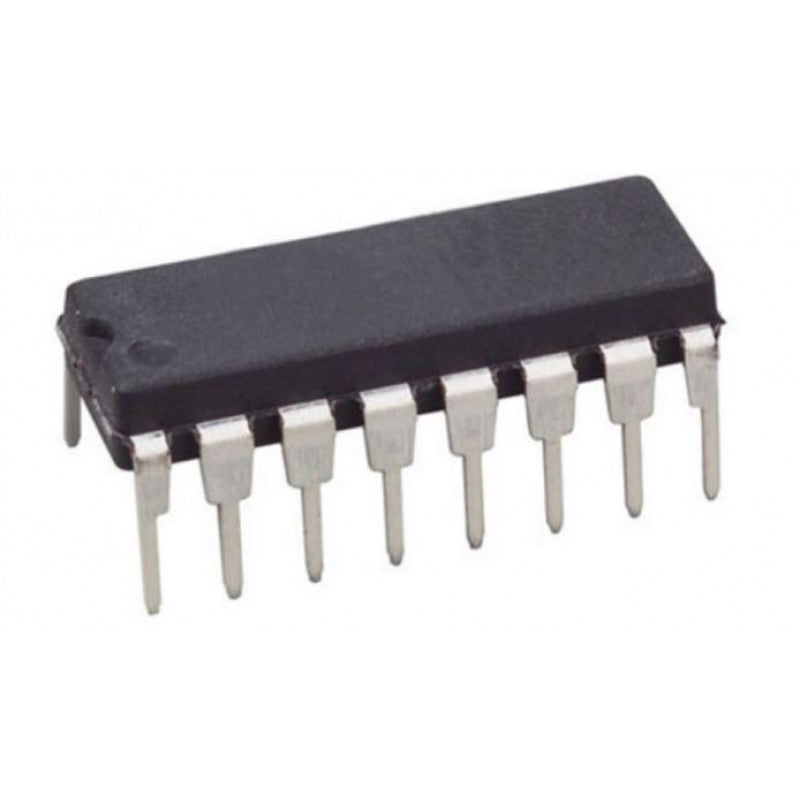

74151 IC – 8-to-1 Data Selector / Multiplexer Logic IC

The 74151 IC is a digital logic 8-to-1 multiplexer / data selector designed to select one of eight input data lines and route the selected signal to the output according to the binary combination applied to its select inputs.

This IC is widely used in digital electronics, logic circuits, data routing, communication systems, control circuits, educational projects, breadboard experiments and electronic prototyping.

The 74151 provides 8 data inputs, 3 selection inputs and an enable/strobe control input. By changing the three select lines, any one of the eight input channels can be selected. It is commonly used where multiple digital signals need to share a single output line.

The IC is useful for students, hobbyists, technicians and engineers working with TTL logic circuits, digital system design, microcontroller interfacing and laboratory experiments.

Key Features

• 8-to-1 multiplexer / data selector
• 8 independent data inputs
• 3 binary select inputs
• Enable / strobe control input
• Digital logic signal routing
• TTL logic family device
• Suitable for breadboard and PCB applications
• Commonly used in digital electronics projects
• Useful for logic experiments and educational circuits

Specifications

Note: Manufacturer prefix may vary depending on stock, such as SN74151, DM74151 or equivalent compatible version. Always check the exact part marking and datasheet before designing critical circuits.
