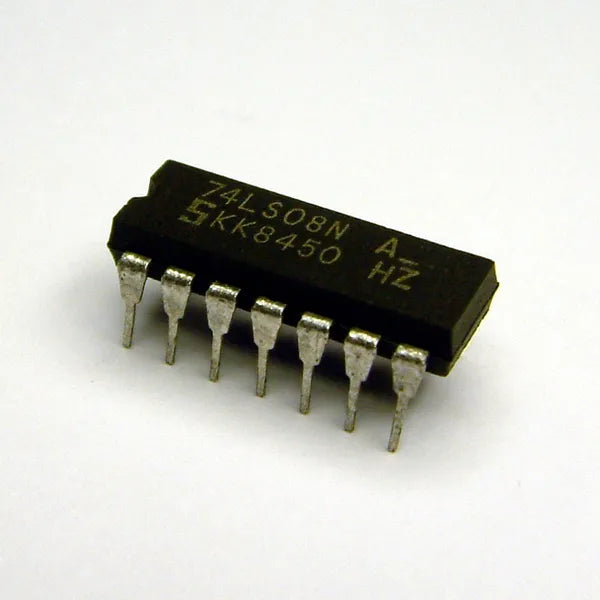

7408 IC

7408 IC

• The SN74HC08N is a four independent 2-input AND Gate IC. It performs the Boolean function Y = A B or Y = A + B in positive logic.
• Outputs Can Drive up to 10 LSTTL Loads. Low-power Consumption, 20µA Maximum ICC. 8ns Typical Propagation Delay Time. ±4mA Output Drive at 5V. Low Input Current of 1µA Maximum.
• Logic Family / Base Number: 74HC08; Logic Type: AND; Output Current: 5.2mA; No. of Inputs: 2; Supply Voltage Min: 2V.
• Supply Voltage Max: 6V; No. of Pins: 14Pins; Logic IC Family: 74HC; Logic IC Base Number: 7408.
