Description

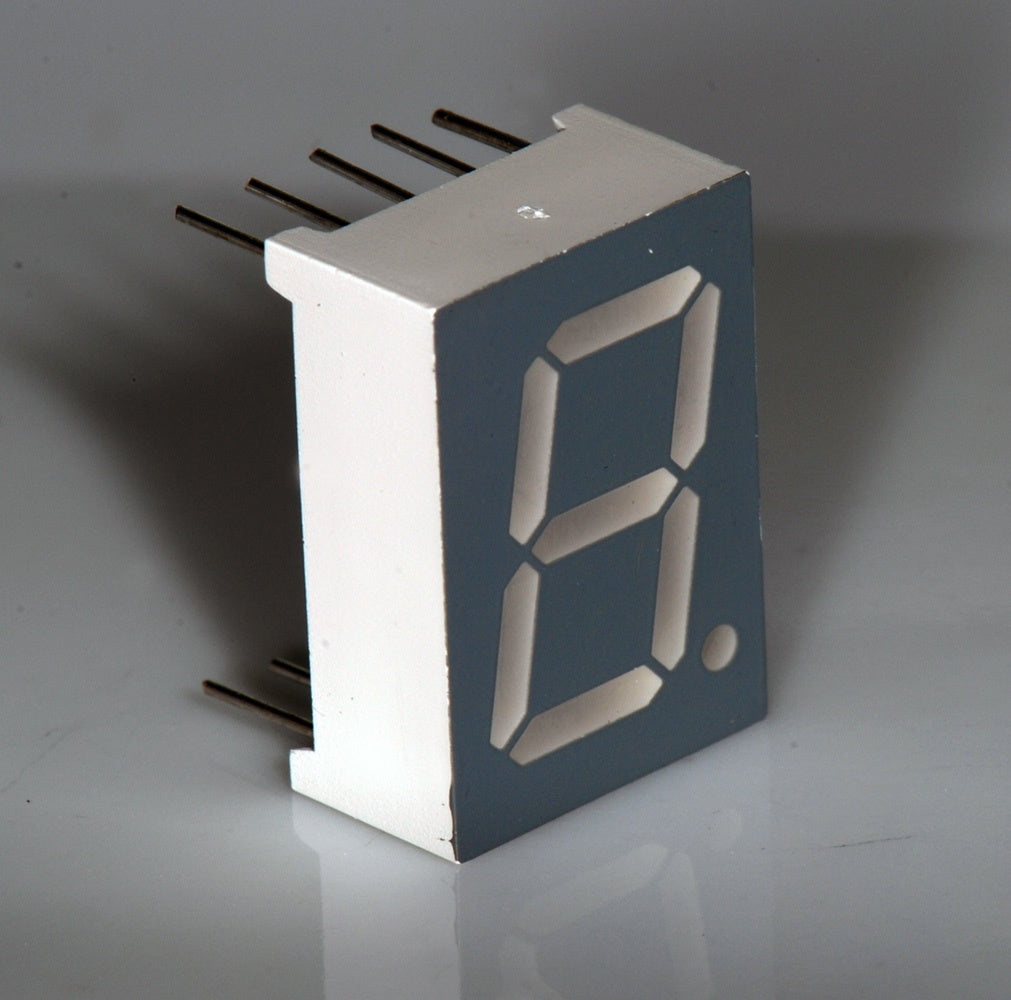

The 7 Segment Display (Common Cathode - CC) is an electronic display device used to show numerical digits (0–9) and some alphabets.
In a Common Cathode (CC) display, all the cathode terminals of the LEDs are connected together and grounded. Each segment lights up when a HIGH voltage is applied to its corresponding pin, allowing the desired number or character to be displayed.
- Product Type: 7 Segment LED Display (Common Cathode)
- Display Type: Numeric / Alphanumeric (limited characters)
- Number of Segments: 7 segments + 1 decimal point (DP)
- Operating Voltage: 1.8V – 2.2V per LED segment
- Operating Current: 10 mA – 20 mA per segment
- Configuration: Common Cathode (all cathodes connected to GND)
