6x8cm Double-Sided Green Dot Board PCB Prototype Board | FR4 Universal Perfboard
6x8cm Double-Sided Green Dot Board PCB Prototype Board | FR4 Universal Perfboard
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

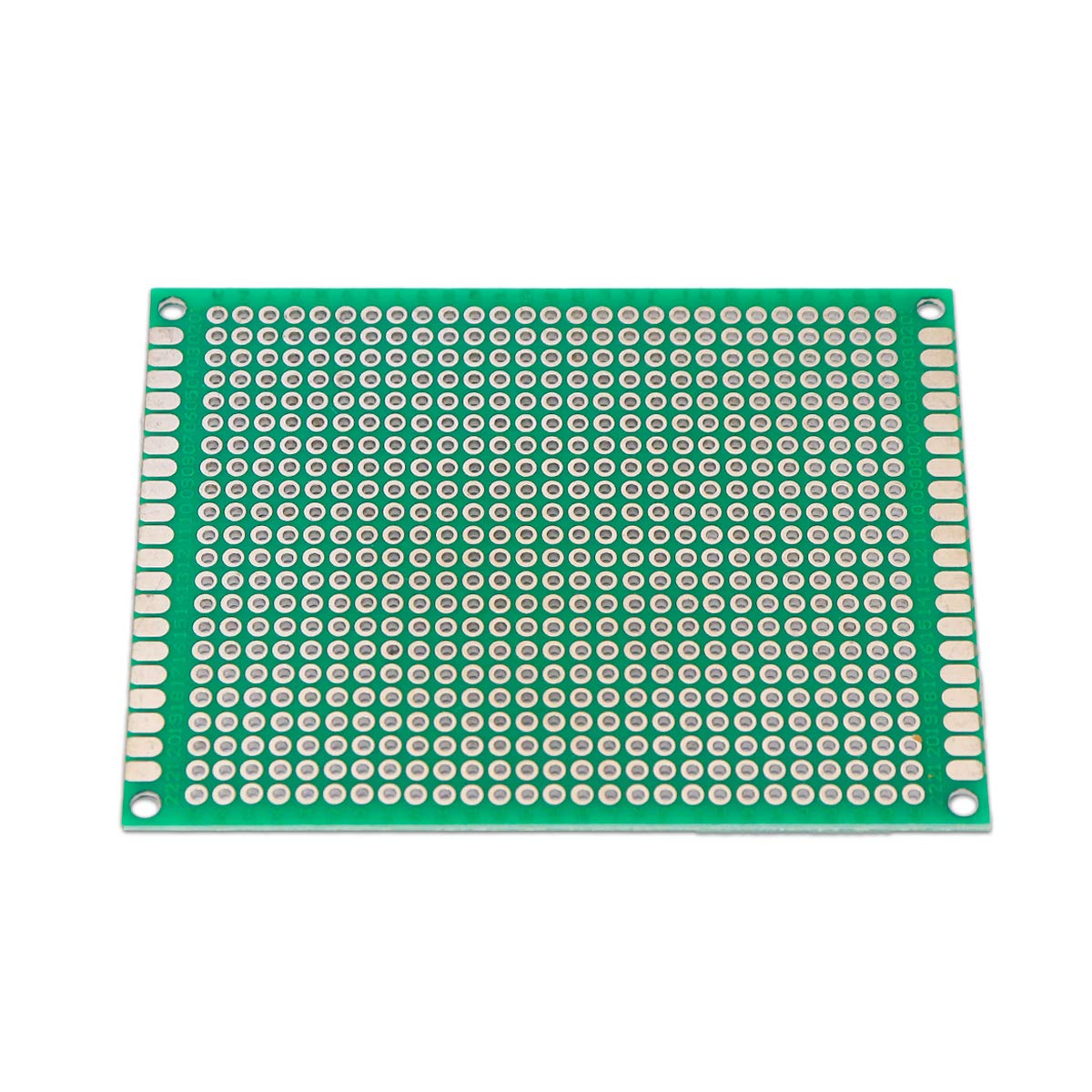

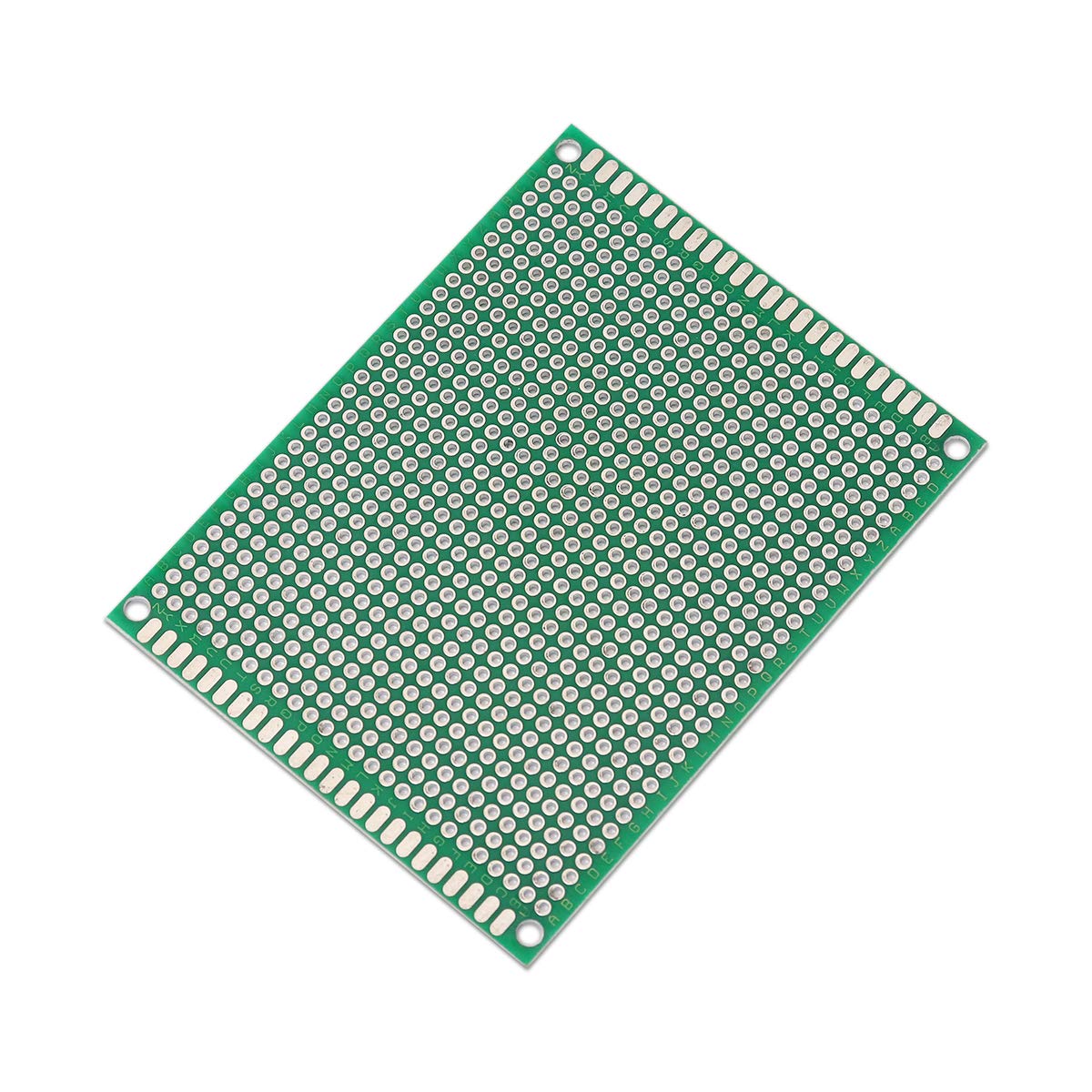

The 6x8cm Double-Sided Green Dot Board PCB Prototype Board is a high-quality FR4 fiberglass universal PCB designed for building, testing, and prototyping electronic circuits. Featuring plated copper pads on both sides, this perfboard provides excellent solderability, durability, and reliable electrical connections for through-hole electronic components.
Constructed from premium FR4 glass epoxy material, the board offers superior mechanical strength, heat resistance, and long service life compared to standard phenolic PCBs. Its universal dot matrix layout allows engineers, students, makers, and hobbyists to quickly assemble custom circuits without the need for custom PCB fabrication.
Ideal for Arduino, ESP32, Raspberry Pi, IoT, robotics, power supply projects, sensor interfaces, amplifier circuits, and educational electronics experiments.
Specifications
| Specification | Details |
|---|---|
| Product Type | Universal Prototype PCB |
| Board Size | 6 × 8 cm (60 × 80 mm) |
| PCB Material | FR4 Glass Epoxy |
| PCB Thickness | Approx. 1.6 mm |
| Board Color | Green |
| Copper Layer | Double-Sided |
| Hole Type | Plated Through Holes |
| Hole Pitch | 2.54 mm (0.1 inch) |
| Hole Diameter | Approx. 1.0 mm |
| Pad Type | Individual Round Copper Pads |
| Surface Finish | HASL (Typical) |
| Compatible Components | Through-Hole Components |
| Mounting | Can be drilled or fixed using spacers |
| Reusable | Yes |
| Applications | DIY Electronics, Arduino, ESP32, Raspberry Pi, Robotics, IoT, Educational Projects |
Features
- Premium FR4 fiberglass construction
- Double-sided copper pads for easy circuit routing
- Standard 2.54 mm hole spacing
- Excellent solderability
- Durable and heat-resistant
- Suitable for through-hole electronic components
- Easy to cut and customize if required
- Ideal for rapid electronic prototyping
- Long-lasting professional-grade PCB material
- Perfect for students, engineers, and makers
Applications
- Arduino Projects
- ESP8266 & ESP32 Circuits
- Raspberry Pi Expansion Boards
- Robotics Projects
- IoT Development
- Sensor Interface Circuits
- Power Supply Modules
- Audio Amplifier Circuits
- DIY Electronics
- Educational Laboratory Projects
- Prototype Circuit Development
