6 Pin RMC Connector with Base | Wire Connector for PCB & Sensor Projects
6 Pin RMC Connector with Base | Wire Connector for PCB & Sensor Projects
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

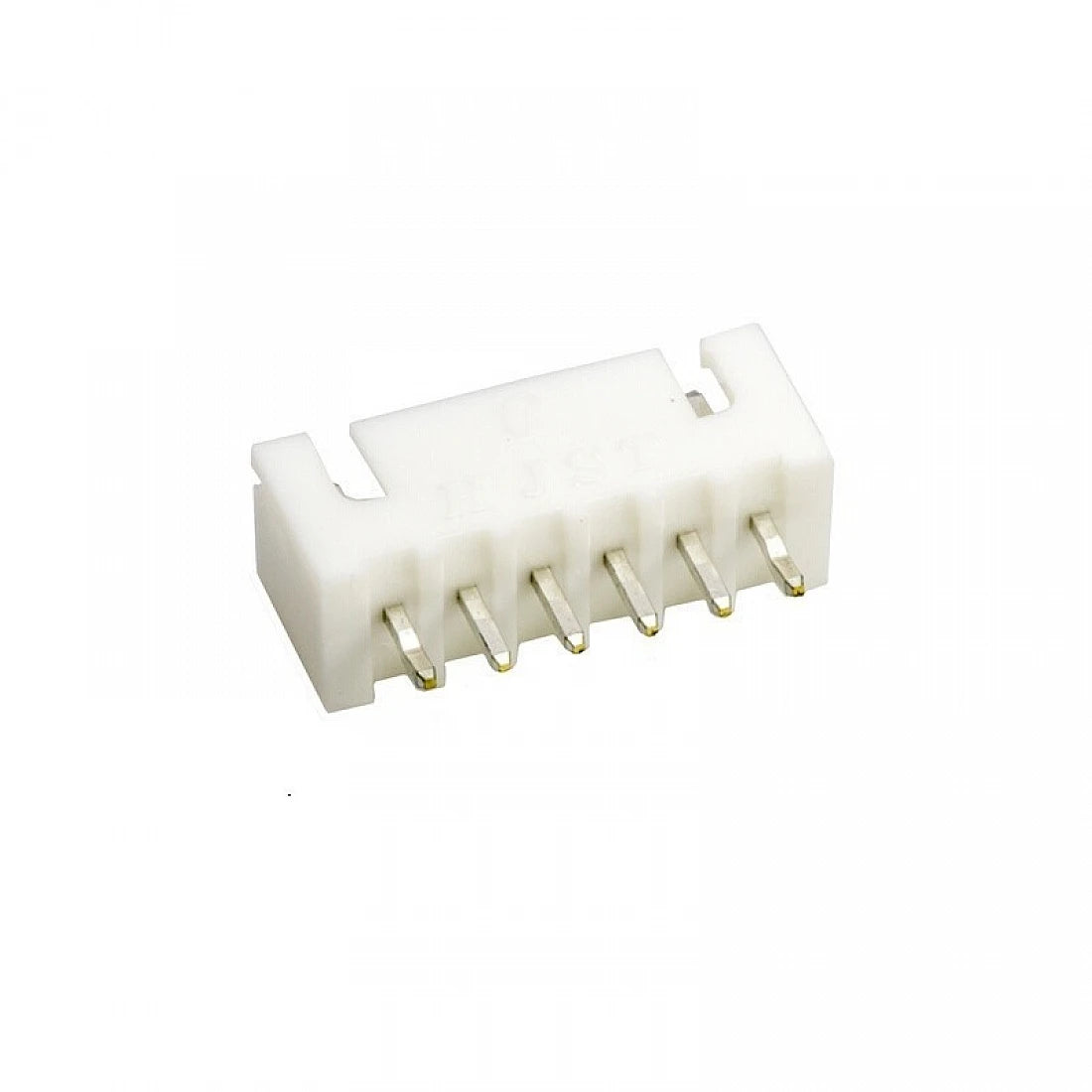

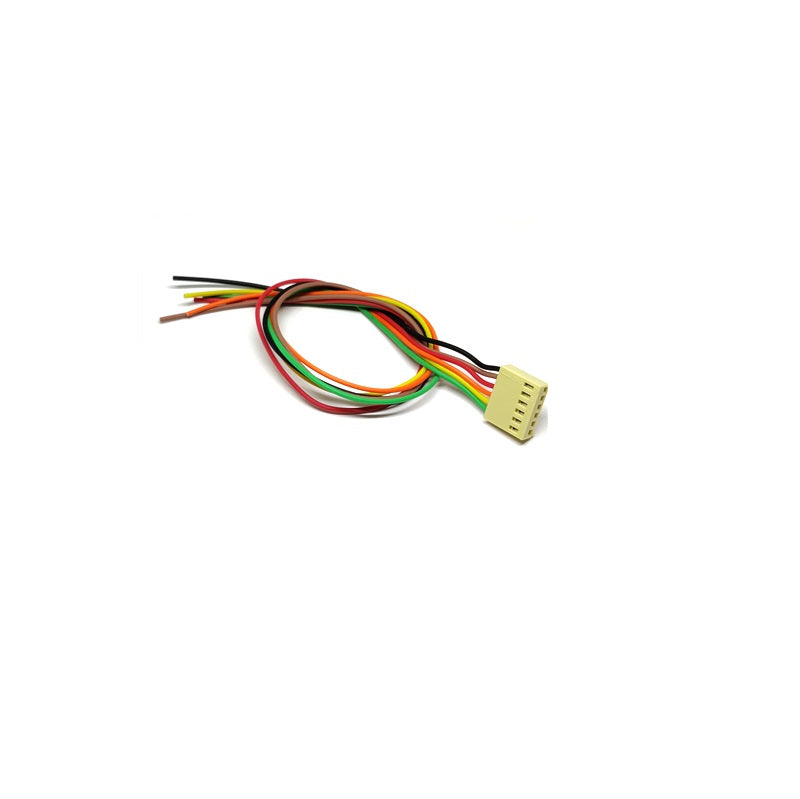

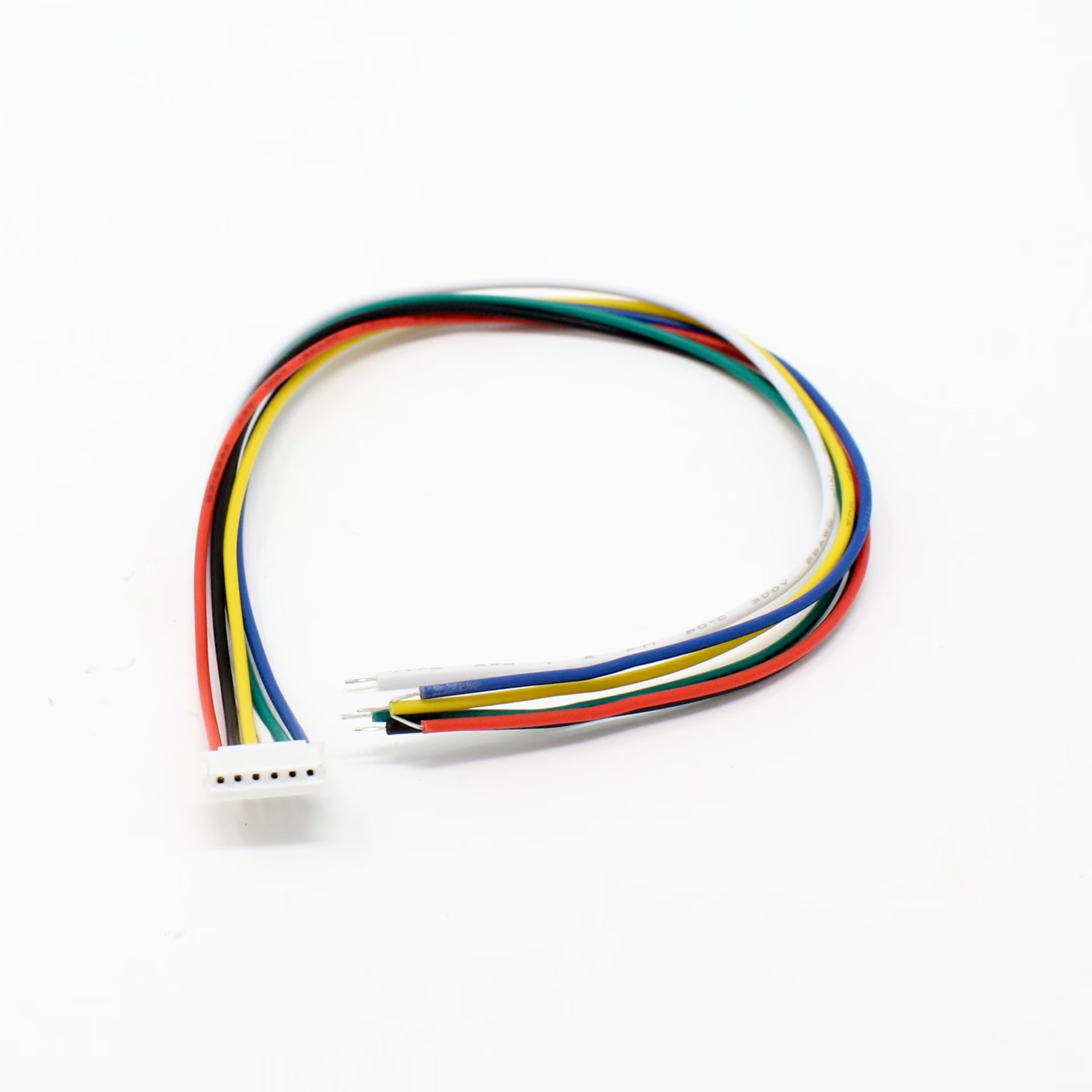

The 6 Pin RMC Connector with Base is a compact and reliable multi-pin wire-to-board connector designed for secure electrical connections in electronic circuits, PCB designs, robotics, and sensor-based projects. It is widely used in DIY electronics, industrial control panels, Arduino projects, and embedded systems where stable multi-wire connectivity is required.
|
Parameter |
Specification |
|
Connector type |
Wire-to-board crimp connector |
|
Number of positions |
6-pin |
|
Pitch |
2.0 mm (Approximate) |
|
Gender |
Female crimp housing with male PCB header |
|
Mounting |
Through-hole PCB header |
|
Wire count |
6 conductors |
|
Wire gauge |
Approximately 26–28 AWG |
|
Cable length |
Approximately 150–260 mm |
|
Housing color |
White |
|
Housing material |
Nylon (UL94 V-0 typical) |
|
Contact material |
Tin-plated phosphor bronze/brass (typical) |
|
Locking method |
Friction lock |
|
Current rating |
Up to 2 A per contact |
|
Voltage rating |
Up to 100 V AC/DC |
|
Operating temperature |
-25 °C to +85 °C (typical) |
