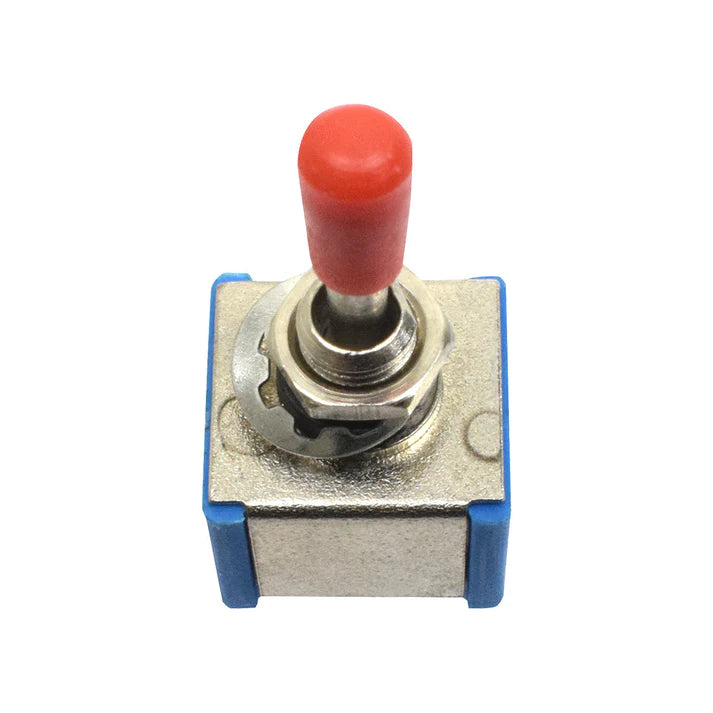

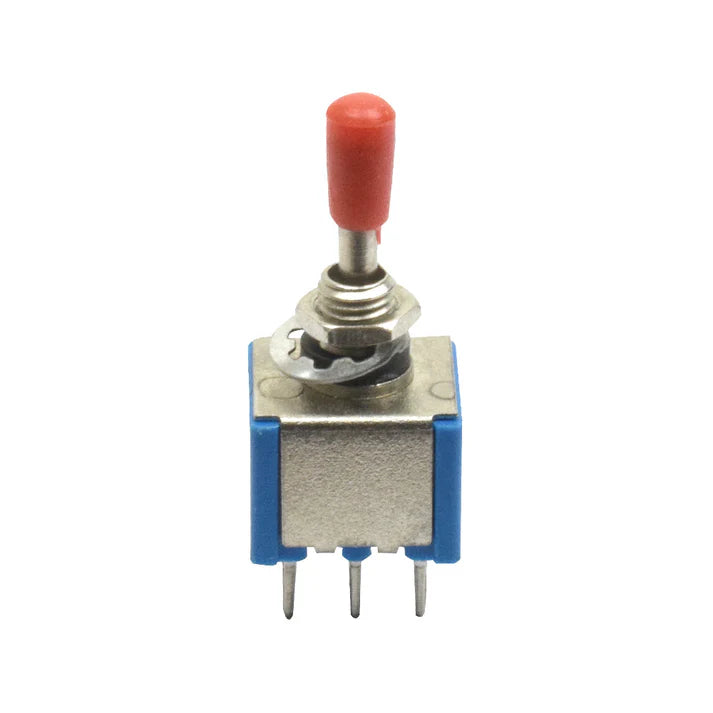

6 Pin DPDT Toggle Switch ON-ON | Heavy Duty Mini Metal Lever Switch for PCB, Panel Mount, Arduino, Robotics & DIY Electronics
6 Pin DPDT Toggle Switch ON-ON | Heavy Duty Mini Metal Lever Switch for PCB, Panel Mount, Arduino, Robotics & DIY Electronics
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The 6 Pin DPDT Toggle Switch ON-ON is a durable and reliable Double Pole Double Throw (DPDT) switch designed for manual circuit switching in a wide range of electrical and electronic applications. Featuring a sturdy metal toggle lever and 6 terminals, this switch allows simultaneous control of two independent circuits, making it ideal for polarity reversal, signal routing, motor direction control, and power source selection.
Built with high-quality metal contacts and a robust housing, this toggle switch provides excellent electrical conductivity, smooth operation, and a long mechanical lifespan. Its threaded bushing enables secure panel mounting, making it suitable for control panels, industrial equipment, robotics, automotive projects, and DIY electronics.
Whether you're designing a custom control panel or repairing electronic equipment, this 6-pin DPDT toggle switch delivers dependable switching performance.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | 6 Pin DPDT Toggle Switch |
| Switch Type | DPDT (Double Pole Double Throw) |
| Switching Function | ON-ON |
| Number of Pins | 6 Pin |
| Number of Positions | 2 Position |
| Actuator Type | Metal Toggle Lever |
| Mounting Type | Panel Mount (Threaded Bushing) |
| Terminal Type | Solder Lug / Solder Pin |
| Contact Material | Copper Alloy / Metal Alloy |
| Housing Material | Metal with Insulated Base |
| Contact Resistance | Low |
| Insulation Resistance | High |
| Mechanical Life | Long Operating Life |
| Electrical Life | High Durability |
| Applications | Power Switching, Signal Routing, Motor Direction Control, Polarity Reversal |
Key Features
- DPDT (Double Pole Double Throw) configuration
- ON-ON switching function
- 6-pin design for dual circuit control
- Durable metal toggle lever
- Strong threaded panel mounting
- Smooth switching action
- High-quality metal contacts
- Low contact resistance
- Compact and rugged construction
- Long mechanical and electrical service life
Applications
- Arduino projects
- ESP32 development boards
- Raspberry Pi projects
- Robotics
- DC motor direction control
- Polarity reversing circuits
- Signal switching
- Audio equipment
- Power supply selection
- Industrial control panels
- Automotive electronics
- Laboratory equipment
- DIY electronics
- Electronic repair
- Educational projects
Package Includes
- 1 × 6 Pin DPDT ON-ON Toggle Switch
