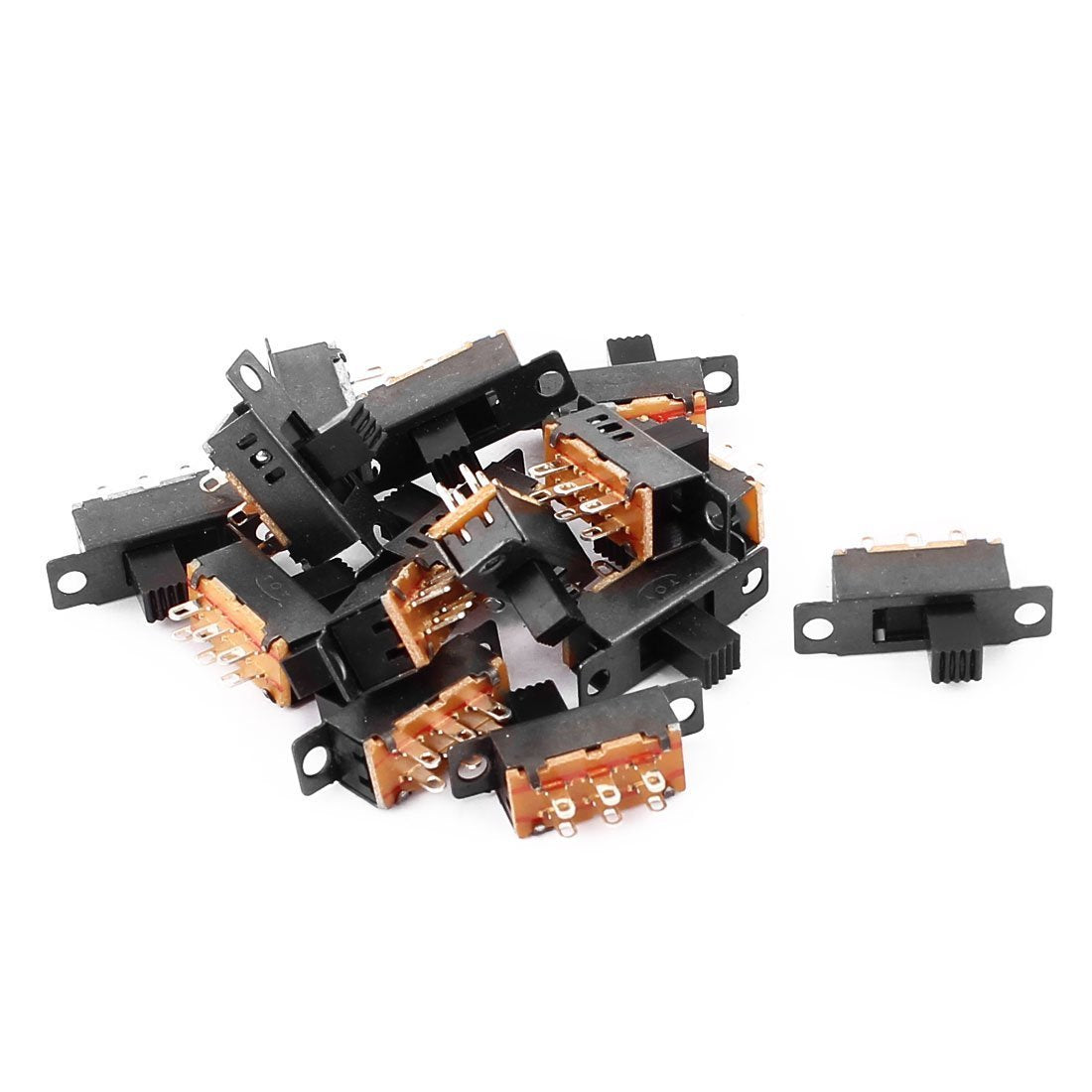

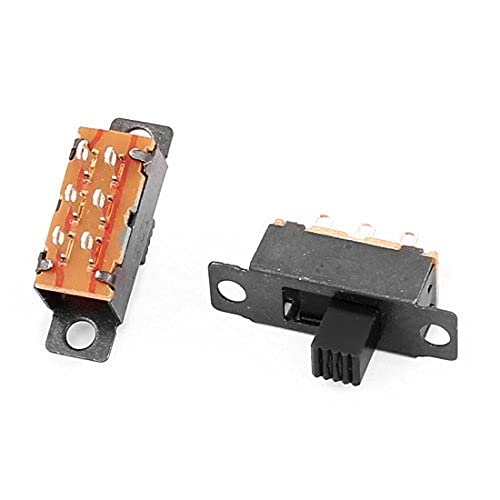

6 Pin 3 Way Slide Switch | DPDT ON-ON-ON Mini PCB Mount Slide Switch for Arduino, Robotics & DIY Electronics
6 Pin 3 Way Slide Switch | DPDT ON-ON-ON Mini PCB Mount Slide Switch for Arduino, Robotics & DIY Electronics
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The 6 Pin 3 Way Slide Switch is a compact DPDT (Double Pole Double Throw) ON-ON-ON slide switch designed for reliable manual switching in electronic circuits. With 6 terminals and 3 stable positions, it allows users to switch between multiple circuit paths, making it ideal for signal selection, polarity reversal, mode selection, and power routing applications.
Its compact size and PCB mounting design make it suitable for use in Arduino projects, ESP32 and Raspberry Pi development boards, robotics, DIY electronics, audio equipment, communication devices, instrumentation, and electronic prototypes. Built with durable metal contacts and a high-quality insulating body, the switch offers smooth operation, low contact resistance, and a long mechanical life.
Whether you're building prototypes or repairing electronic devices, this 6-pin 3-position slide switch is a dependable component for a wide range of switching applications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | 6 Pin 3 Way Slide Switch |
| Switch Type | DPDT (Double Pole Double Throw) |
| Switching Function | ON-ON-ON |
| Number of Pins | 6 Pin |
| Number of Positions | 3 Position |
| Actuator Type | Slide Lever |
| Mounting Type | PCB Through-Hole Mount |
| Contact Material | Metal Alloy |
| Housing Material | High-Quality Thermoplastic |
| Contact Resistance | Low |
| Insulation Resistance | High |
| Mechanical Life | Long Operating Life |
| Operating Temperature | Suitable for Standard Electronic Applications |
| Applications | Signal Switching, Mode Selection, Power Routing, Polarity Reversal, DIY Electronics |
Key Features
- DPDT (Double Pole Double Throw) switching configuration
- Three stable ON-ON-ON switching positions
- 6-pin through-hole PCB mounting design
- Compact size for space-saving installations
- Smooth and reliable slide mechanism
- Durable metal contacts for stable conductivity
- High insulation and low contact resistance
- Easy to solder onto PCBs
- Long mechanical service life
- Suitable for both prototyping and production
Applications
- Arduino projects
- ESP32 development
- Raspberry Pi interfacing
- Robotics
- DIY electronics
- Electronic prototypes
- Audio equipment
- Instrumentation circuits
- Communication devices
- Signal routing circuits
- Polarity reversing circuits
- Function and mode selection
- Power source selection
- Control panels
- Educational electronics projects
