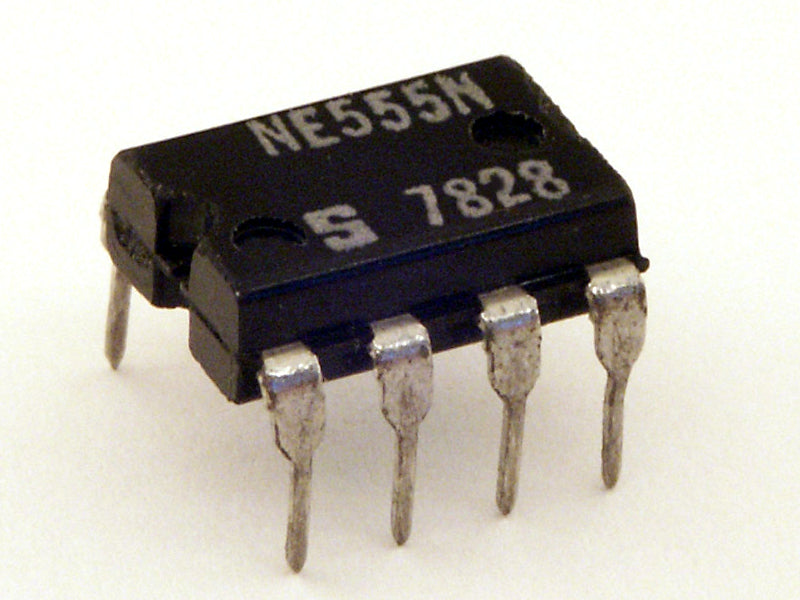

555 Timer IC

555 Timer IC

Features:

• Versatility: Capable of operating in different modes including astable, monostable, and bistable configurations.
• Timing Accuracy: Provides precise timing intervals and frequencies.
• Wide Voltage Range: Can typically operate from 4.5V to 15V.
• Output Drive: Capable of sourcing or sinking up to 200mA of current.
• Low Power Consumption: Suitable for battery-operated applications.

Applications:

• Timing Delays: Used in monostable mode for generating precise time delays.
• Pulse Generation: In astable mode, it generates square wave signals of adjustable frequency and duty cycle.
• PWM Generation: Useful for generating pulse-width modulation signals.
• Oscillator Circuits: Can function as a stable oscillator for generating clock signals.
• Voltage Control: Applications include voltage-controlled oscillators (VCOs).
