MAJESTRONICZ

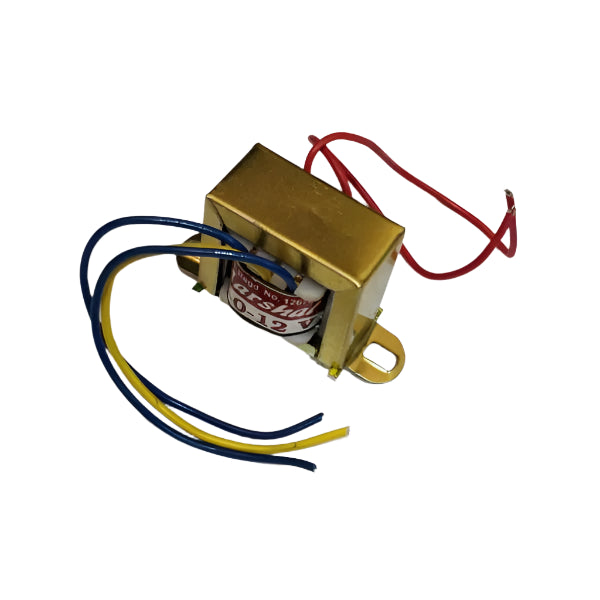

500mA - Transformer(12-0-12V)
500mA - Transformer(12-0-12V)
Regular price
Rs. 120.00
Regular price
Rs. 150.00
Sale price
Rs. 120.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
A 12-0-12V, 500mA Transformer is a step-down center-tapped transformer commonly used in power supplies, rectifier circuits, and low-power electronic applications. It converts 230V AC (or 110V AC) to dual 12V AC outputs, which can be further rectified and regulated to obtain DC voltages.
Technical Specifications:
| Parameter | Value |
|---|---|
| Primary Voltage | 230V AC (or 110V AC for some versions) |
| Secondary Voltage | 12V-0-12V AC |
| Current Rating | 500mA (0.5A) |
| Power Rating | 6W (12V × 0.5A) |
| Winding Type | Center-Tapped (CT) |
| Frequency | 50Hz / 60Hz |
| Core Type | Laminated Iron Core |
| Insulation | Class E or B (for safe operation) |
