45 RPM Johnson Gear Motor - 12V
Rs. 560.00
Skip to product information
45 RPM Johnson Gear Motor - 12V
Rs. 560.00
Bulk order?
Request pricing and availability
Need support?
Contact our team
Free shipping eligibility
Prepaid orders of ₹999+ delivered within Tamil Nadu. Terms apply.
Cash on Delivery
Available for eligible PIN codes. Confirmed at checkout.
Description

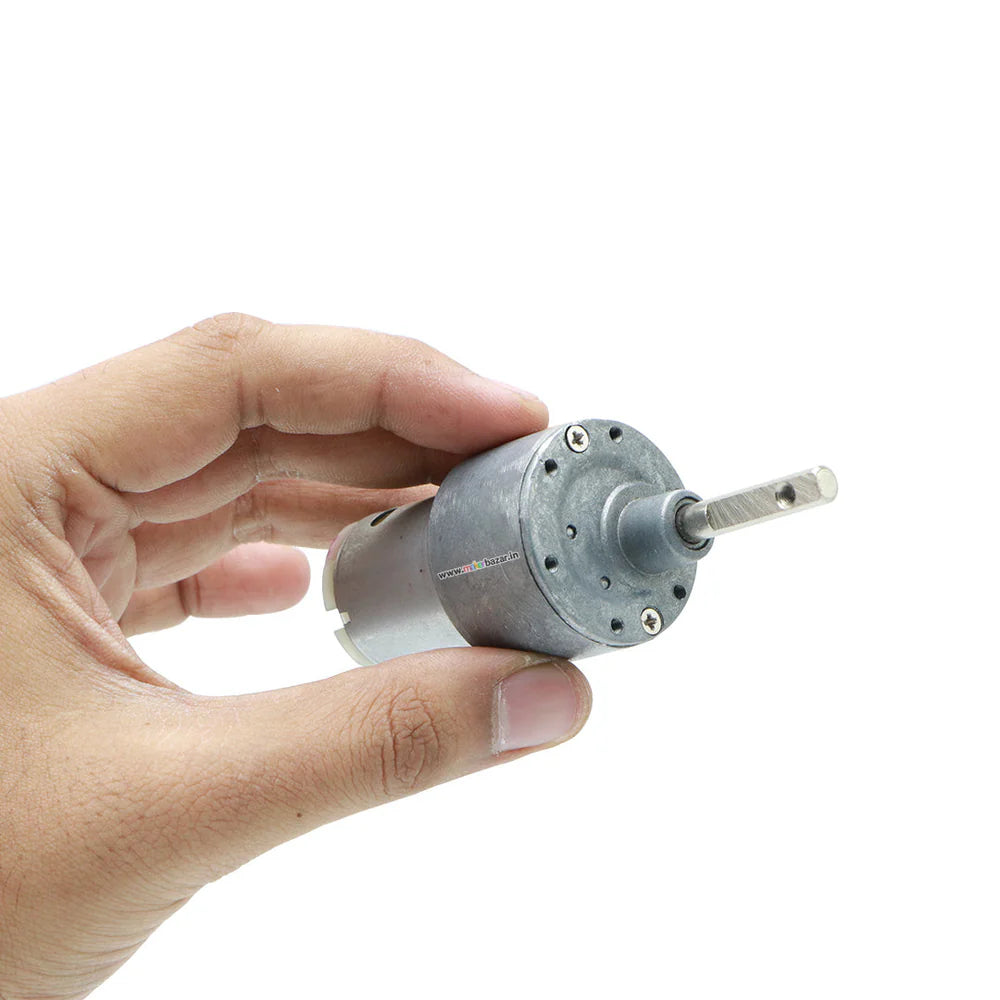

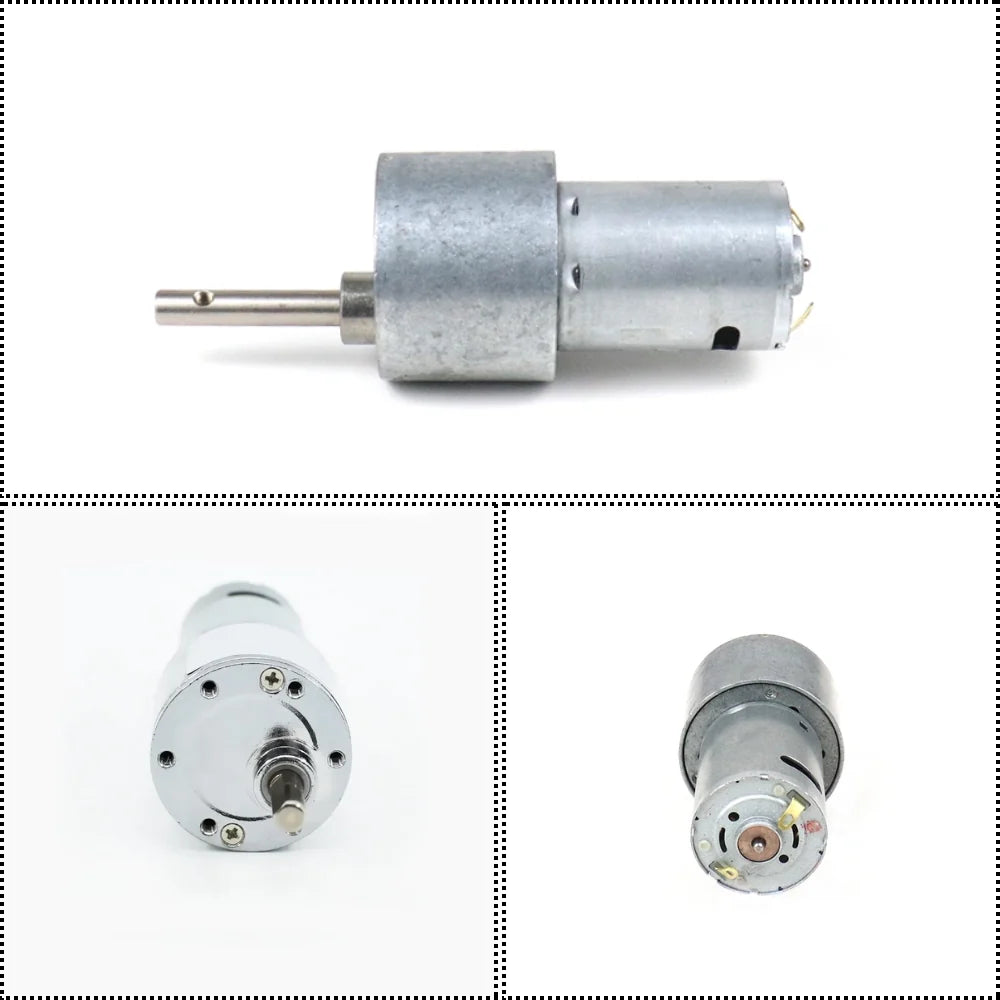

The 45 RPM 12V Johnson Gear Motor is a medium-speed, high-torque DC geared motor designed for robotics, automation, and DIY engineering projects. It combines a high-speed DC motor with a precision metal gearbox to deliver stable output speed with increased torque. This motor is widely used where balanced speed and torque are required (faster than 10 RPM motors but still strong enough for load handling).
Specifications:
| Specification | Details |
|---|---|
| Base Motor RPM | 18000 RPM |
| Shaft Diameter | 6 mm (D-Type / M3 thread option) |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 27 mm |
| Motor Length (without shaft) | 62 mm |
| Shaft Length | 37 mm |
| Weight | 180 gm |
| Holding Torque | 38 Kg cm |
| No-Load Current | 0.3 A – 0.8 A |
| Load Current | 1.5 A – 4 A (typical), higher at stall |
