4 Pin DIP Switch | 4 Position Piano Type Slide DIP Switch for Arduino, PCB, Electronic Circuits & DIY Projects
4 Pin DIP Switch | 4 Position Piano Type Slide DIP Switch for Arduino, PCB, Electronic Circuits & DIY Projects
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

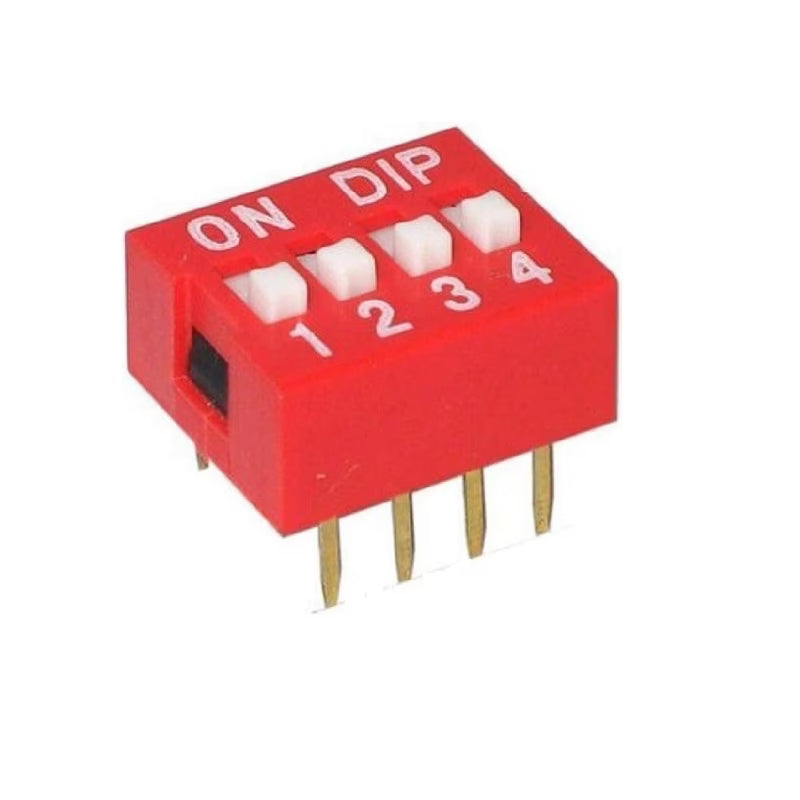

The 4 Pin DIP Switch is a compact 4-position Dual In-Line Package (DIP) switch designed for configuring and controlling electronic circuits without the need for soldering or permanent wiring changes. Each individual switch can be turned ON or OFF to set circuit parameters, addresses, modes, or configuration settings.
Featuring a piano-style slide actuator design, this DIP switch provides reliable switching performance, low contact resistance, and easy PCB mounting. It is widely used in Arduino projects, microcontroller circuits, embedded systems, development boards, communication modules, automation equipment, and electronic prototypes.
The small footprint and through-hole PCB design make it ideal for space-saving electronic applications where manual configuration selection is required.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | 4 Pin DIP Switch |
| Switch Type | DIP (Dual In-Line Package) Switch |
| Number of Positions | 4 Position |
| Number of Pins | 8 Pins (4 Switches + Common Terminals) |
| Switching Mode | ON / OFF |
| Actuator Type | Piano Style Slide |
| Mounting Type | PCB Through Hole Mount |
| Pitch | 2.54mm Standard DIP Pitch |
| Contact Material | Metal Alloy |
| Housing Material | High-Quality Plastic |
| Terminal Type | Solder Pin |
| Operating Temperature | Standard Electronic Range |
| Applications | Circuit Configuration, Address Selection, Mode Setting |
Key Features
- 4 individual ON/OFF switches in one package
- Compact DIP package design
- Standard 2.54mm PCB pitch
- Easy PCB mounting and soldering
- Reliable electrical contact performance
- Low contact resistance
- Suitable for configuration and programming settings
- Space-saving electronic component
- Long mechanical operating life
- Ideal for prototyping and production circuits
Applications
- Arduino projects
- ESP8266 and ESP32 circuits
- Microcontroller boards
- PCB configuration settings
- Address selection circuits
- Embedded systems
- Robotics projects
- Automation controllers
- Communication modules
- Electronic testing equipment
- Industrial control systems
- DIY electronics projects
- Development boards
Package Includes
- 1 × 4 Pin DIP Switch
