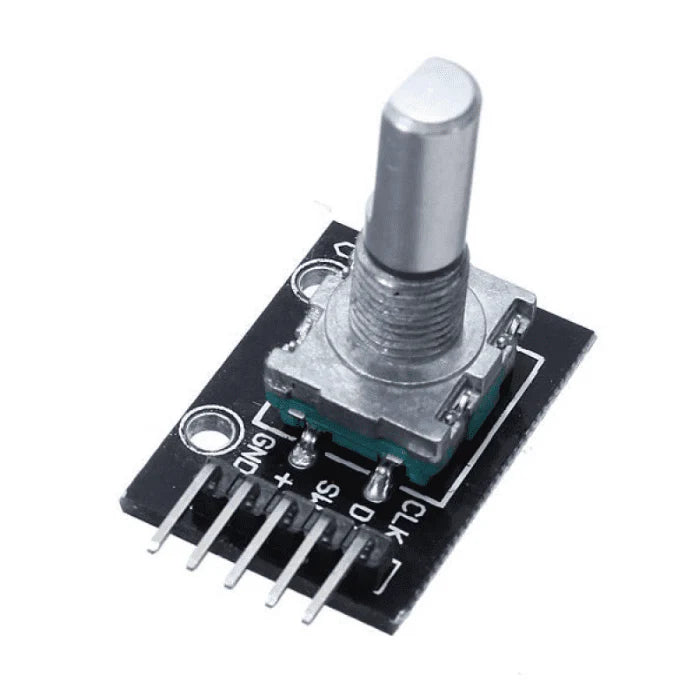

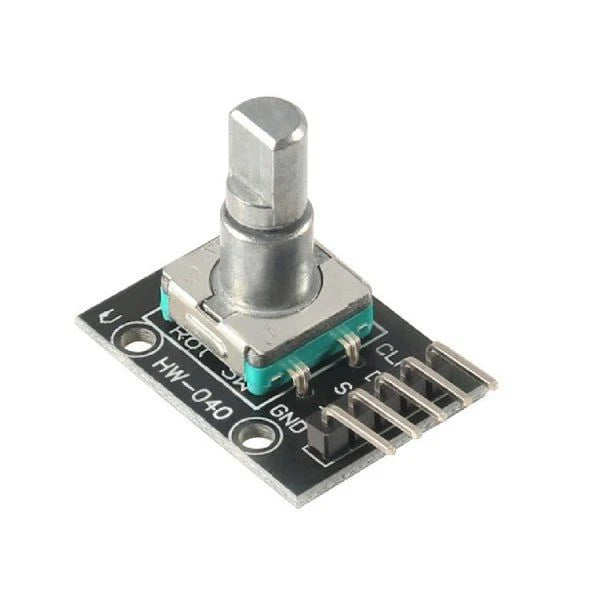

360 Degree Rotary Encoder Module | M274 Rotation Position Sensor
Rs. 84.00
Skip to product information
360 Degree Rotary Encoder Module | M274 Rotation Position Sensor
Rs. 84.00
Bulk order?
Request pricing and availability
Need support?
Contact our team
Free shipping eligibility
Prepaid orders of ₹999+ delivered within Tamil Nadu. Terms apply.
Cash on Delivery
Available for eligible PIN codes. Confirmed at checkout.
Description

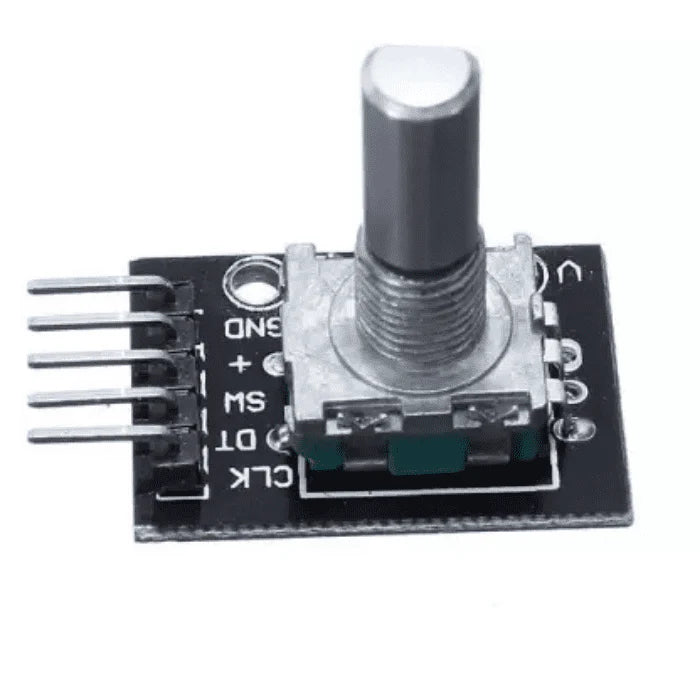

The 360° Rotary Encoder Module (M274 type) is a precision rotation position sensor used to measure angular movement, direction, and speed of a rotating shaft. It provides digital pulse outputs that can be easily read by microcontrollers like Arduino, ESP32, and Raspberry Pi for control and navigation applications.
- Model: M274 (commonly used rotary encoder type)
- Type: Incremental rotary encoder
- Operating Voltage: 3.3V – 5V DC
- Output Signal: A & B phase digital pulses + switch output
- Resolution: Depends on pulses per revolution
- Shaft Type: Rotary knob shaft (metal/plastic)
- Mount Type: PCB through-hole
- Interface: 5-pin (VCC, GND, A, B, SW)
