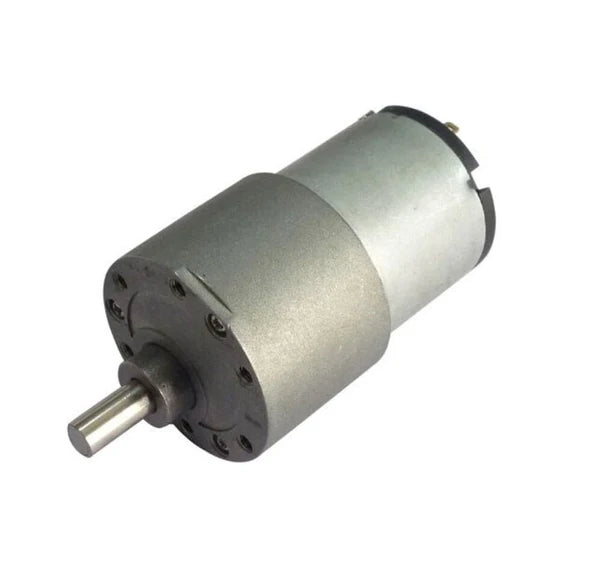

300RPM 12V Side Shift Motor

300 RPM 12V Center Shaft DC Gear Motors are designed with integrated gears to optimize performance. These motors are known as Center Shaft DC Geared Motors due to the shaft extending through the middle of the gear assembly.

They are widely used for robotic and mechanical applications due to their simplicity and standard size. Controlling these motors with an Arduino or similar microcontroller is cost-effective, especially when paired with an L298N H-bridge motor driver, which can handle voltage inputs between 5V and 35V DC.

The 300 RPM 12V motor is versatile, making it ideal for all-terrain robots and various robotic tasks. It features a 3 mm threaded hole at the center of the shaft, facilitating easy attachment to wheels or other mechanical systems.

These 300 RPM 12V DC Geared Motors are commonly used in robotics for their reliability and ease of use, available in a standardized design.

Features:

• Equipped with high-quality gears
• Durable metal gears, resistant to wear
• The gearbox is sealed, pre-lubricated with lithium grease, and maintenance-free
• Smooth operation from 4V to 12V, offering a wide range of RPM and torque
• Shaft includes a coupling hole for easy attachment

Specifications:

• Gear Material: Metal
• Rated RPM: 300
• Operating Voltage: 12V DC
• Rated Torque: 1.2 kg-cm
• Stall Torque: 3.5 kg-cm
• Load Current: 0.3A
• No-Load Current: 60mA
• Gearbox Diameter: 37 mm
• Motor Diameter: 32 mm
• Motor Length: 75 mm
• Shaft Diameter: 6 mm
• Shaft Length: 22 mm
• Weight: 80 grams

This motor provides excellent value for robotics, offering high durability and performance at an affordable price.
