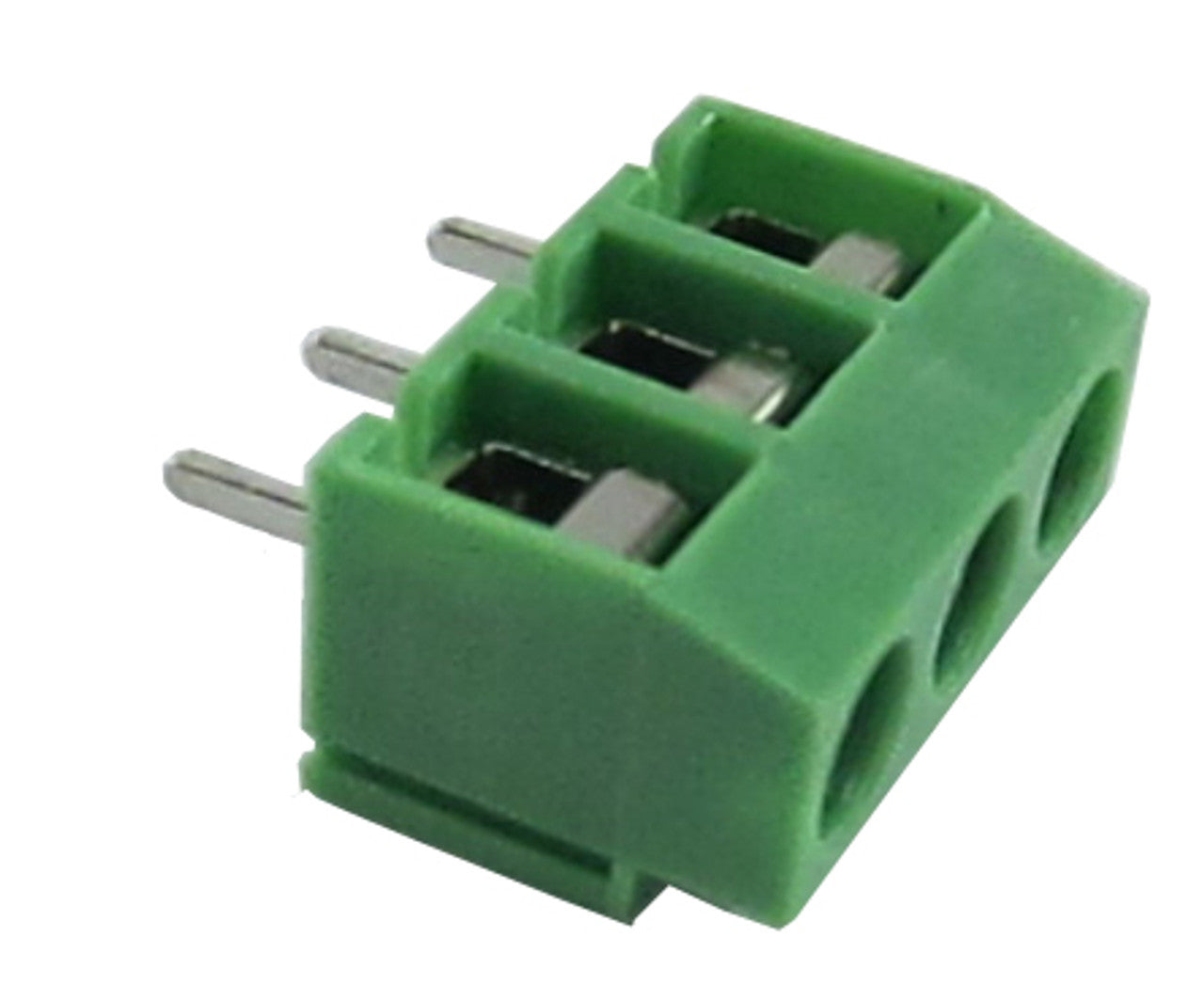

3 Pin Terminal Block

3 PIN Terminal Block

• Model: XY 2500

  • This identifies the specific model or type of connector.

• Orientation: Right angle

  • Indicates that the connector is designed to be mounted at a right angle to the PCB or mating surface.

• Gender: Female

  • Refers to the type of connector, in this case, a female connector.

• Pin Header: Brass Tin plated

  • Specifies the material of the pin header, which is brass with tin plating. Tin plating is commonly used for its corrosion resistance and conductivity.

• Connector: PCB Terminal Block

  • Describes the type of connector as a PCB terminal block, which allows for easy connection to a printed circuit board.

• Wire Gauge Hold: 22 to 12 AWG

  • Indicates the range of wire gauges (American Wire Gauge) that the connector can accommodate, from 22 AWG (thinner wires) to 12 AWG (thicker wires).

• Termination: Screw

  • Method used for terminating wires into the connector, typically involving screws for secure connections.

• Colour: Green

  • The color of the connector housing or terminal block, which in this case is green.

• Pitch: 5.08mm

  • Refers to the distance between the centerlines of adjacent pins in the connector, often referred to as pitch. Here, it is 5.08 millimeters.

• Poles: 3 Pin

  • Specifies the number of electrical poles or pins in the connector, which is 3 in this instance.

• Rated Voltage: 300V

  • Indicates the maximum rated voltage that the connector can safely handle.

• Rated Current: 12A

  • Specifies the maximum rated current that the connector is designed to carry without overheating or damage.

• Approximate Weight: 8 grams

  • Provides an estimate of the connector's weight, which helps in determining the overall weight and balance in assembly or shipping
