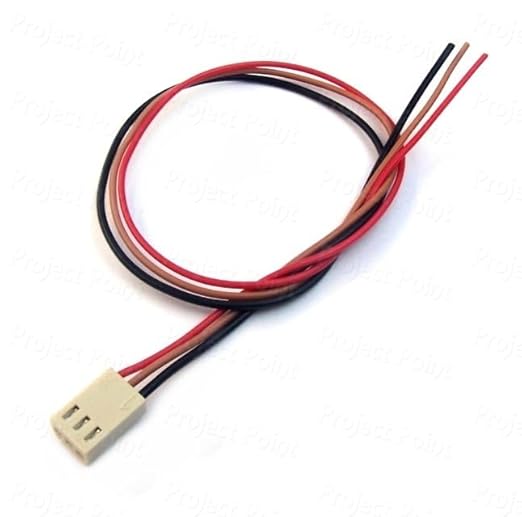

3 Pin RMC Connector with Base | Wire Connector for PCB & Sensor Projects
3 Pin RMC Connector with Base | Wire Connector for PCB & Sensor Projects
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

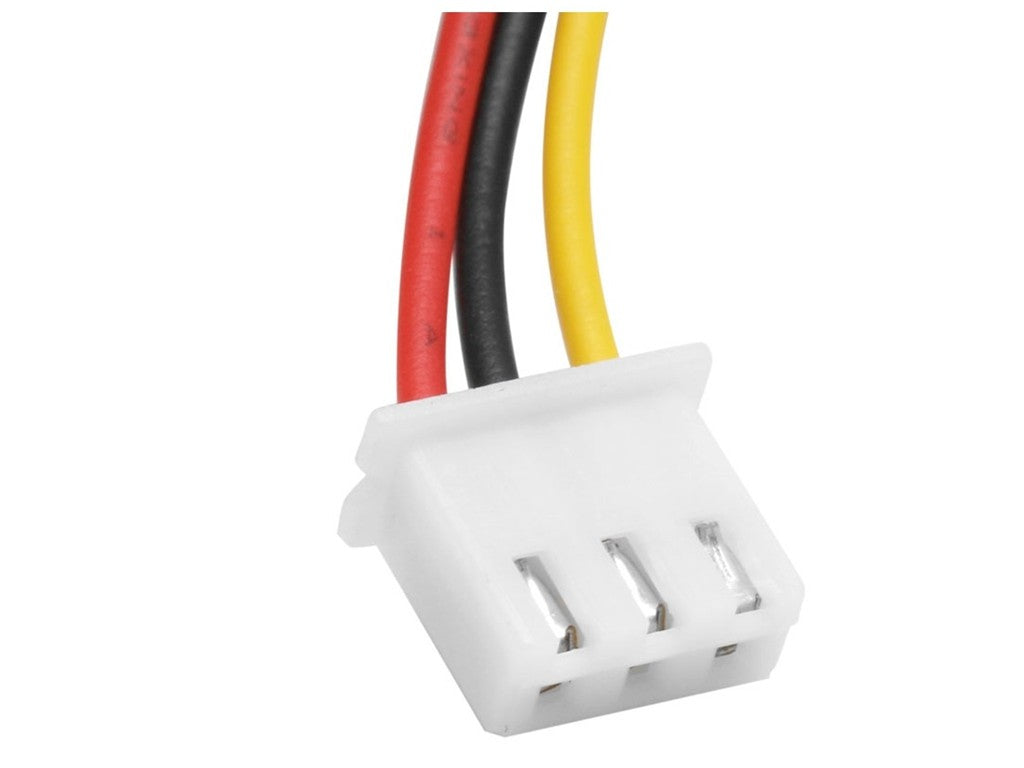

This 3-pin JST connector set includes a female cable assembly and a matching through-hole male PCB header. It provides a secure, polarized connection for power and signal transmission in electronic circuits. The pre-crimped wires make it ideal for DIY electronics, Arduino, robotics, IoT, and sensor interfacing.
|
Specification |
Details |
|
Connector Type |
JST Wire-to-Board Connector |
|
Number of Pins |
3 Pins |
|
Pitch |
2.0 mm (Approx.) |
|
Gender |
Female Cable Connector + Male PCB Header |
|
Mounting Type |
Through-Hole (THT) |
|
Cable Length |
Approx. 150–260 mm |
|
Wire Gauge |
26–28 AWG (Approx.) |
|
Wire Colors |
Red (VCC), Black (GND), Orange (Signal) |
|
Housing Material |
Nylon (White) |
|
Contact Material |
Tin-Plated Copper Alloy |
|
Rated Voltage |
Up to 100 V AC/DC |
|
Rated Current |
Up to 2 A |
|
Operating Temperature |
-25°C to +85°C |
|
Locking Mechanism |
Friction Lock |
