220V AC PIR Motion Sensor Switch Module with Light Control – 30-Second Delay, 40W
Rs. 249.00
Skip to product information
220V AC PIR Motion Sensor Switch Module with Light Control – 30-Second Delay, 40W
Rs. 249.00
Bulk order?
Request pricing and availability
Need support?
Contact our team
Free shipping eligibility
Prepaid orders of ₹999+ delivered within Tamil Nadu. Terms apply.
Cash on Delivery
Available for eligible PIN codes. Confirmed at checkout.
Description
Compact PIR motion sensor switch module designed for automatic AC load control. The module operates across a wide AC input range and includes light-control functionality, allowing a connected light or compatible electrical load to switch automatically when motion is detected.

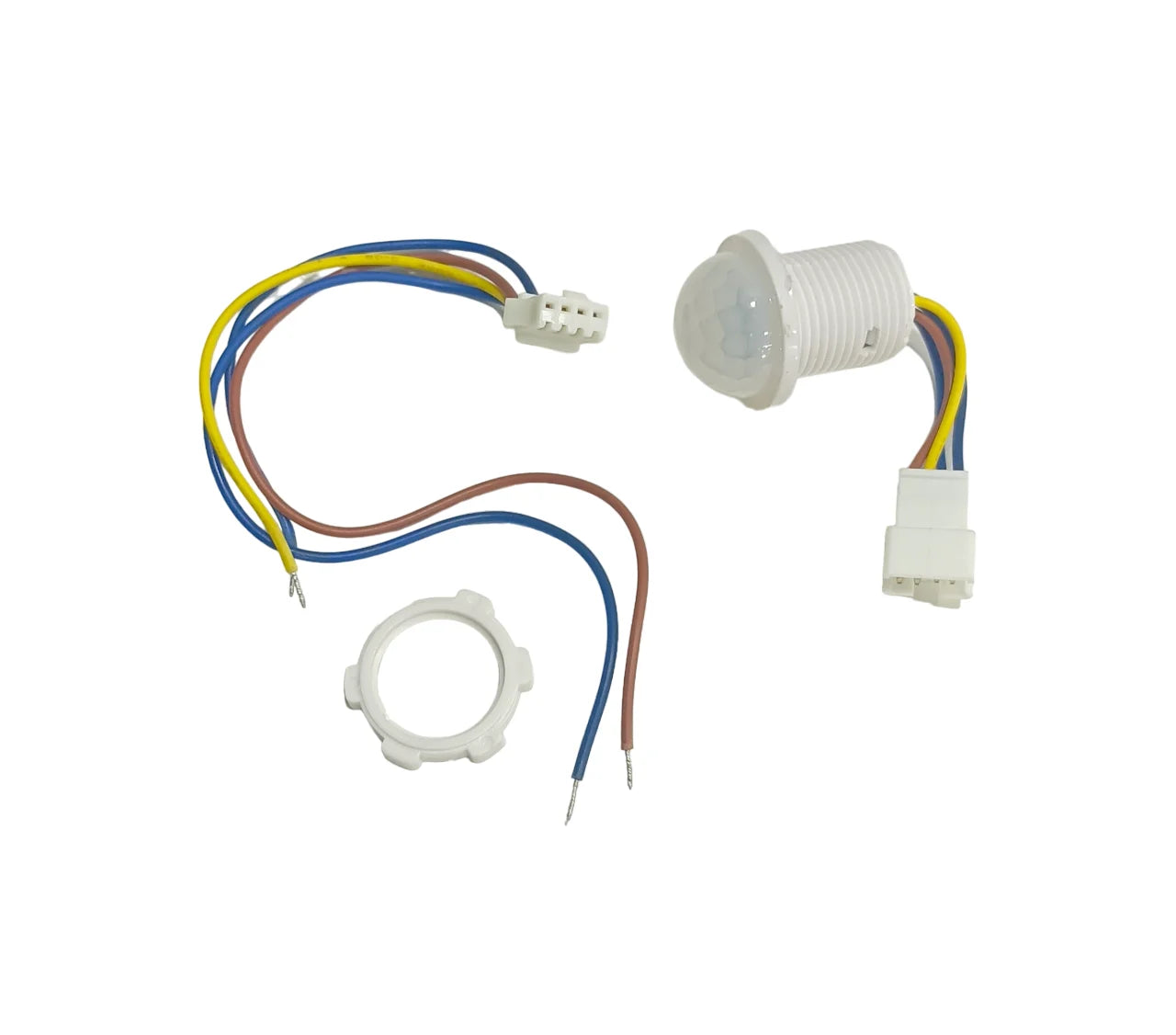

The unit has a round white housing, four colour-coded wires and a plug connector for installation. The product label specifies a fixed delay time of approximately 30 seconds and a maximum rated load of 40W.
Specifications
| Specification | Details |
|---|---|
| Product type | PIR motion sensor switch |
| Operating voltage | AC 85–265V |
| Common application voltage | 220V AC |
| Maximum load | 40W |
| Delay time | Approximately 30 seconds |
| Light-control function | Yes |
| Housing shape | Round |
| Housing colour | White |
| Connection type | Wired connector |
| Number of wires | 4 |
| Wire colours visible | Red, yellow and blue |
| Model marking | LA002HWA-KG2G |
| Application | Automatic lighting and motion-activated switching |
| Package contents | 1 PIR sensor switch module with cable connector |
