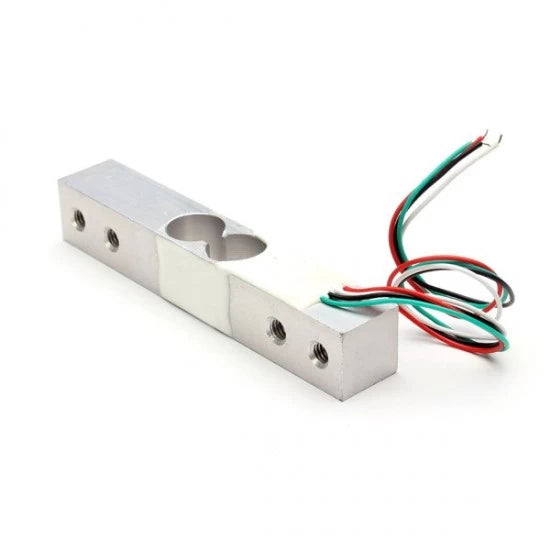

Weighing Load Cell Sensor-20kg

20Kg Load Cell Weight Sensor

• Application: Price computing scales
• Capacity (kg): 20kg
• Rated Output: 2.0 ± 0.15 mV/V
• Accuracy Class: C2
• Maximum Number of Verification Intervals (nMax): 2000
• Minimum Load Cell Verification Intervals (vMin): Emax/5000
• Combined Error (%RO): ≤ ±0.03
• Creep (%RO/30min): 0.03
• Temperature Effect on Sensitivity (%RO/°C): 0.0016
• Temperature Effect on Zero (%RO/°C): 0.003
• Zero Balance (%RO): ±1.0
• Input Resistance (Ω): 402 ± 6
• Output Resistance (Ω): 350 ± 3
• Insulation Resistance (MΩ) (50V): 5000
• Recommended Excitation Voltage (V): 10 ~ 15
• Compensated Temperature Range (°C): -10 ~ +40
• Operating Temperature Range (°C): -35 ~ +80
• Safe Overload (%RO): 150
• Ultimate Overload (%RO): 200
• Load Cell Material: Aluminium
• Platform Size: 350 x 350mm
• Method of Connecting Wire: (Red: Power+)(Black: Power-)(Green: Signal+)(White: Signal-)
