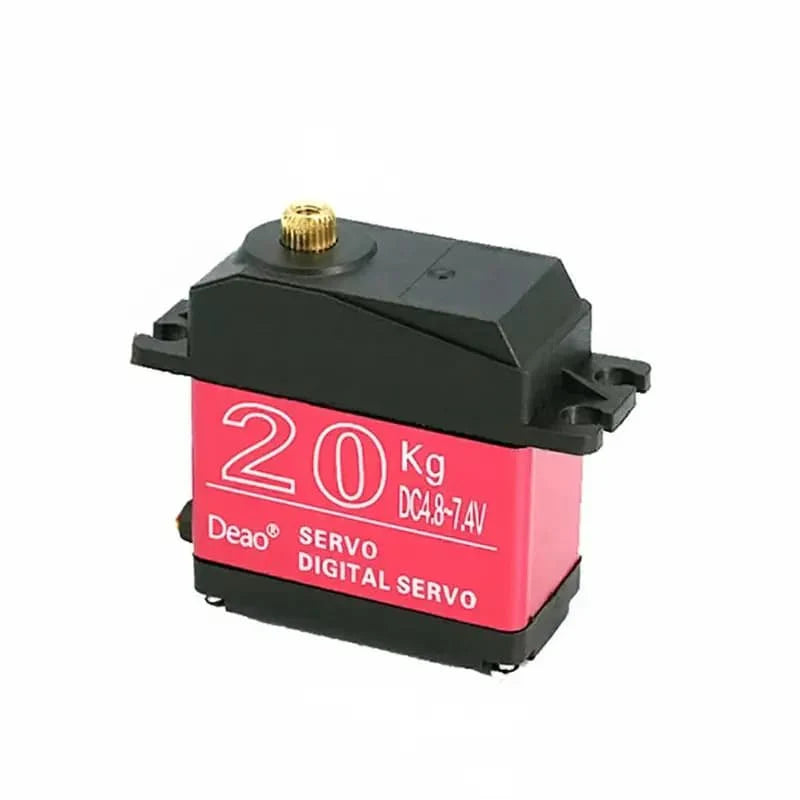

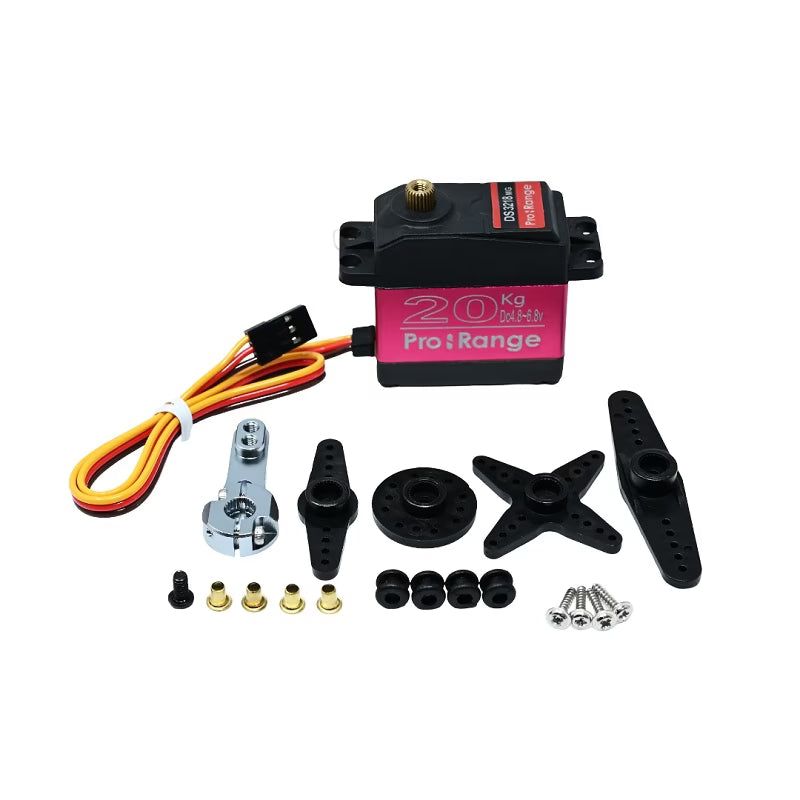

20kg High Torque Digital Servo Motor 180° Metal Gear Coreless 7V Heavy Duty PWM Servo for Robotics & RC Applications
20kg High Torque Digital Servo Motor 180° Metal Gear Coreless 7V Heavy Duty PWM Servo for Robotics & RC Applications
Description
The 20kg High Torque Digital Servo Motor is a powerful heavy-duty PWM servo designed for robotics, RC vehicles, automation systems, and mechanical motion control projects. It features a metal gear train and coreless motor, delivering high torque, fast response, and strong durability for demanding applications.
|
Parameter |
Specification |
|
Product Type |
Digital Servo Motor |
|
Brand |
Deao |
|
Model |
20KG Digital Servo |
|
Torque |
20 kg·cm |
|
Rotation Angle |
180° |
|
Operating Voltage |
DC 4.8–7.4 V |
|
Servo Type |
Digital |
|
Gear Material |
Full Metal Gears |
|
Bearing |
Dual Ball Bearing (typical for this class) |
|
Motor Type |
DC Brushed Motor |
|
Control Signal |
PWM (Pulse Width Modulation) |
|
PWM Frequency |
50–333 Hz (typical) |
|
Pulse Width |
500–2500 µs (typical) |
|
Number of Pins |
3 |
|
Wire Colors |
Brown, Red, Orange |
