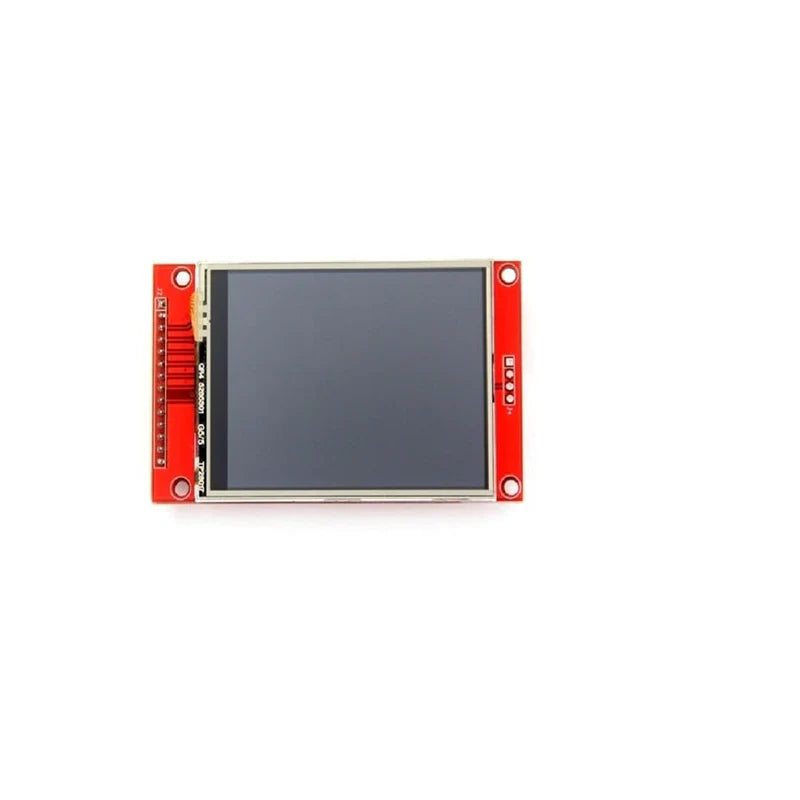

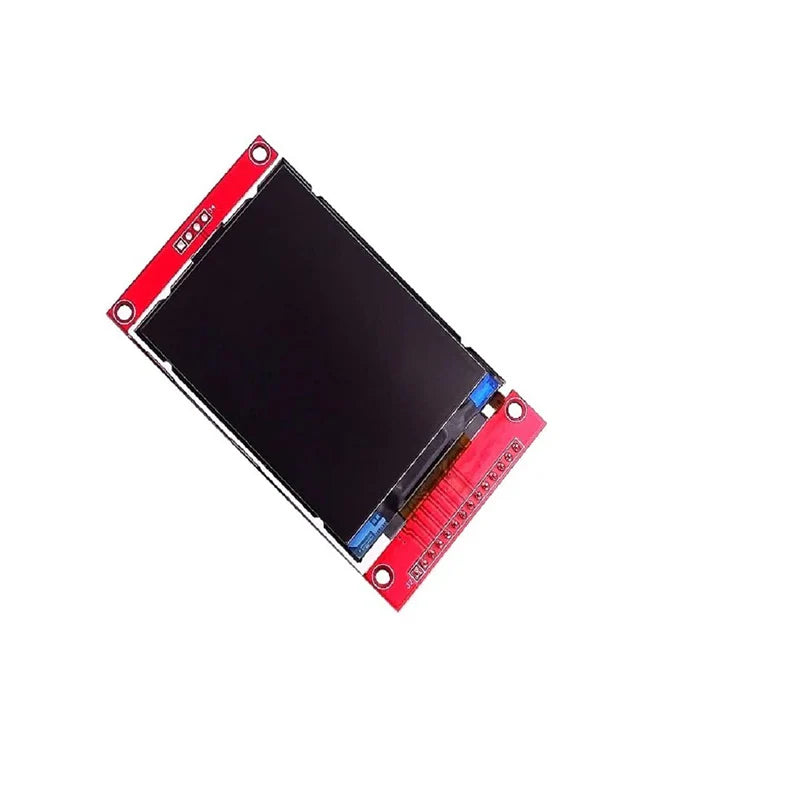

2.8 Inch TFT LCD SPI Display 240×320 for Arduino

The 2.8 Inch TFT LCD SPI Display Module is a bright, high-resolution 240×320 pixel non-touch screen, ideal for Arduino and other microcontroller-based projects. With vivid RGB colors and wide viewing angles, this display delivers sharp graphics, text, and images in a compact form factor.

Powered by the ST7789 driver IC, the display supports 65K / 262K color depth, ensuring excellent color reproduction and clarity. It can operate in both SPI mode (using minimal GPIO pins) and 8-bit parallel mode (for faster refresh rates), making it flexible for different performance needs.

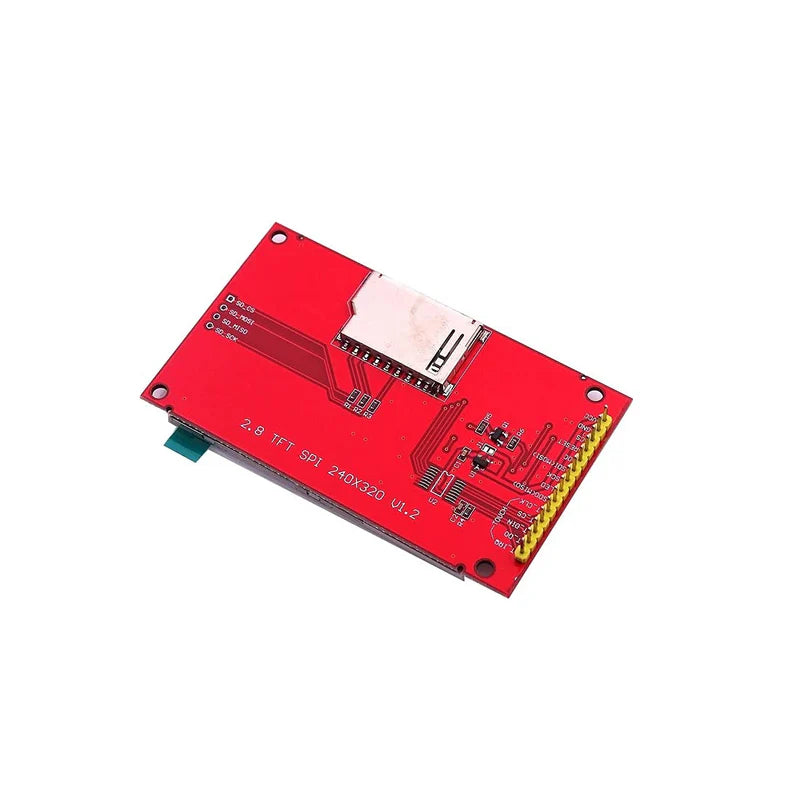

The module comes on a ready-to-use breakout PCB with built-in level shifters, making it fully compatible with 3.3V and 5V systems. When used in SPI mode, the onboard MicroSD card slot allows you to display images directly from an SD card, making it perfect for GUI designs, dashboards, and multimedia projects.

This non-touch TFT display is well-suited for embedded systems, DIY electronics, robotics, IoT interfaces, control panels, and portable devices where space, power efficiency, and visual quality matter.

Key Features

• Display Size: 2.8-inch TFT LCD

• Resolution: 240 × 320 pixels

• Driver IC: ST7789

• Color Depth: 65K / 262K colors

• Display Type: TFT LCD (Non-Touch)

• Interface: SPI & 8-bit Parallel

• Input Voltage: 3.3V – 5V

• MicroSD Card Support: Yes (SPI mode)

• Wide Viewing Angle & High Brightness

• Low Power Consumption

• Arduino & MCU Compatible

Specifications

• Display Size: 2.8 inches

• Resolution: 240 × 320

• Touchscreen: No

• Interface: SPI

• Operating Voltage: 3.3V to 5V

• PCB Size: 85 × 48 mm

• Weight: 31 g

• SKU: KSTL1626

Package Includes

• 1 × 2.8 Inch TFT LCD Non-Touch Screen Module (240×320, SPI Interface)
