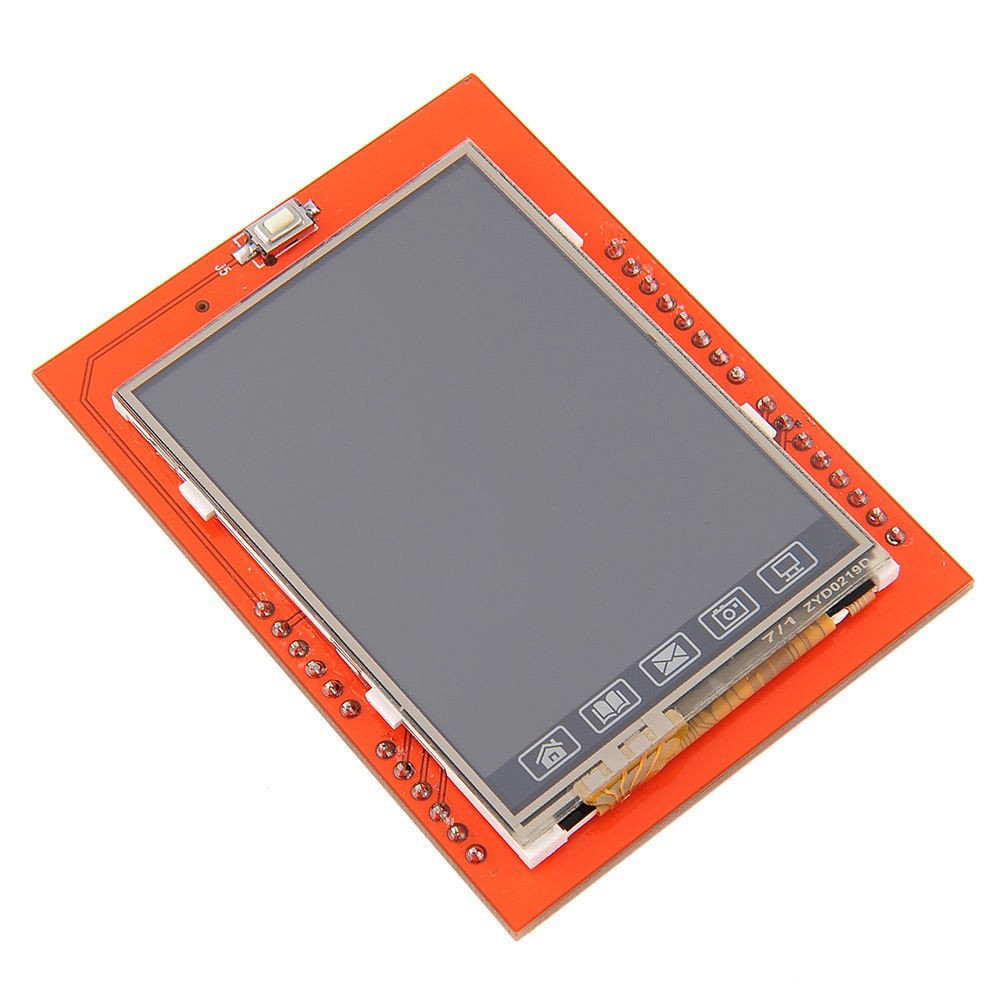

2.4-inch TFT LCD Touch Shield with SD Card Slot

he 2.4-inch TFT LCD Touch Shield with SD Card Slot is a display module commonly used in Arduino-based projects and other microcontroller platforms. This type of display combines a TFT (Thin Film Transistor) LCD screen for clear and vibrant graphics, a touchscreen for user interaction, and an SD card slot for storing and retrieving files such as images, data, or configuration files.

Features of 2.4-Inch TFT LCD Touch Shield:

1. Display Type:

   • TFT LCD: Provides 16-bit color (65,536 colors), which allows for a vibrant and high-quality display output.
   • Resolution: Typically has a resolution of 240x320 pixels, suitable for displaying text, images, and simple graphics.

2. Touchscreen:

   • Resistive touch screen: The touchscreen allows for touch-based input. It's typically used in user interfaces where buttons, sliders, or other interactive elements are needed.
   • Touch sensitivity: It supports 5-wire or 4-wire touch systems, meaning you can interact with it using your finger or a stylus.

3. SD Card Slot:

   • Includes an SD card slot for storing and reading external files. This is useful for projects that need to display images (like BMP files) or store data on the SD card for retrieval.
   • The SD card typically uses the SPI communication protocol for data transfer between the SD card and microcontroller.

4. Connection Type:

   • The shield is designed to fit directly onto the Arduino board or other compatible microcontrollers. It often connects to the SPI pins (Serial Peripheral Interface), which include MISO, MOSI, SCK, and CS (Chip Select), as well as additional pins for reset and touch input.

5. Operating Voltage:

   • The module typically operates at 3.3V to 5V, making it compatible with most Arduino models (e.g., Arduino Uno, Mega, or Nano).

6. Libraries and Software Support:

   • The shield is supported by popular libraries like Adafruit TFT LCD, Adafruit Touchscreen, and SD libraries in Arduino IDE, making it easy to integrate into your projects.
   • You can use these libraries to display images, text, and interact with the touchscreen interface.
