MAJESTRONICZ

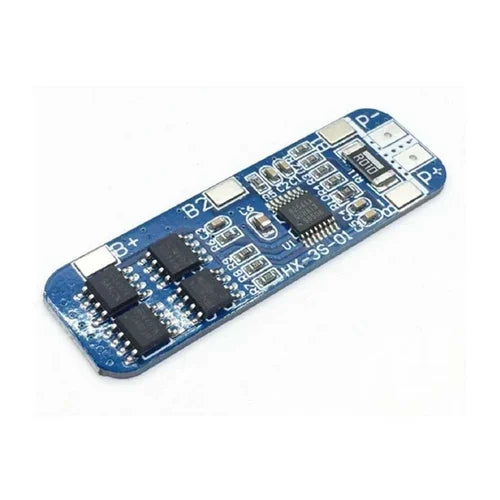

18650 BMS-3S-10A
18650 BMS-3S-10A
Regular price
Rs. 75.00
Regular price
Sale price
Rs. 75.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
A 3S 20A 18650 BMS (Battery Management System) is designed to protect and manage a 3-cell lithium-ion battery pack (typically using 18650 cells) connected in series.
Basic Overview:
-
Configuration: 3S = 3 cells in series
(3 × 3.7V nominal = 11.1V nominal, 12.6V fully charged) -
Current Rating: 20A continuous discharge
-
Battery Type: Li-ion 18650 or similar lithium cells
-
BMS Type: With protection (not a balance charging board)
Features:
| Feature | Description |
|---|---|
| Overcharge Protection | Usually ~4.25V per cell |
| Over-discharge Protection | Around 2.5V–2.7V per cell |
| Overcurrent Protection | Cuts off above 20A (may vary slightly) |
| Short Circuit Protection | Yes |
| Balanced Charging | Optional (some BMS have this) |
| Operating Temp | -20°C to 60°C typically |
| Charge/Discharge Ports | Same port (P-), or separate (P- and C-) depending on model |
