MAJESTRONICZ

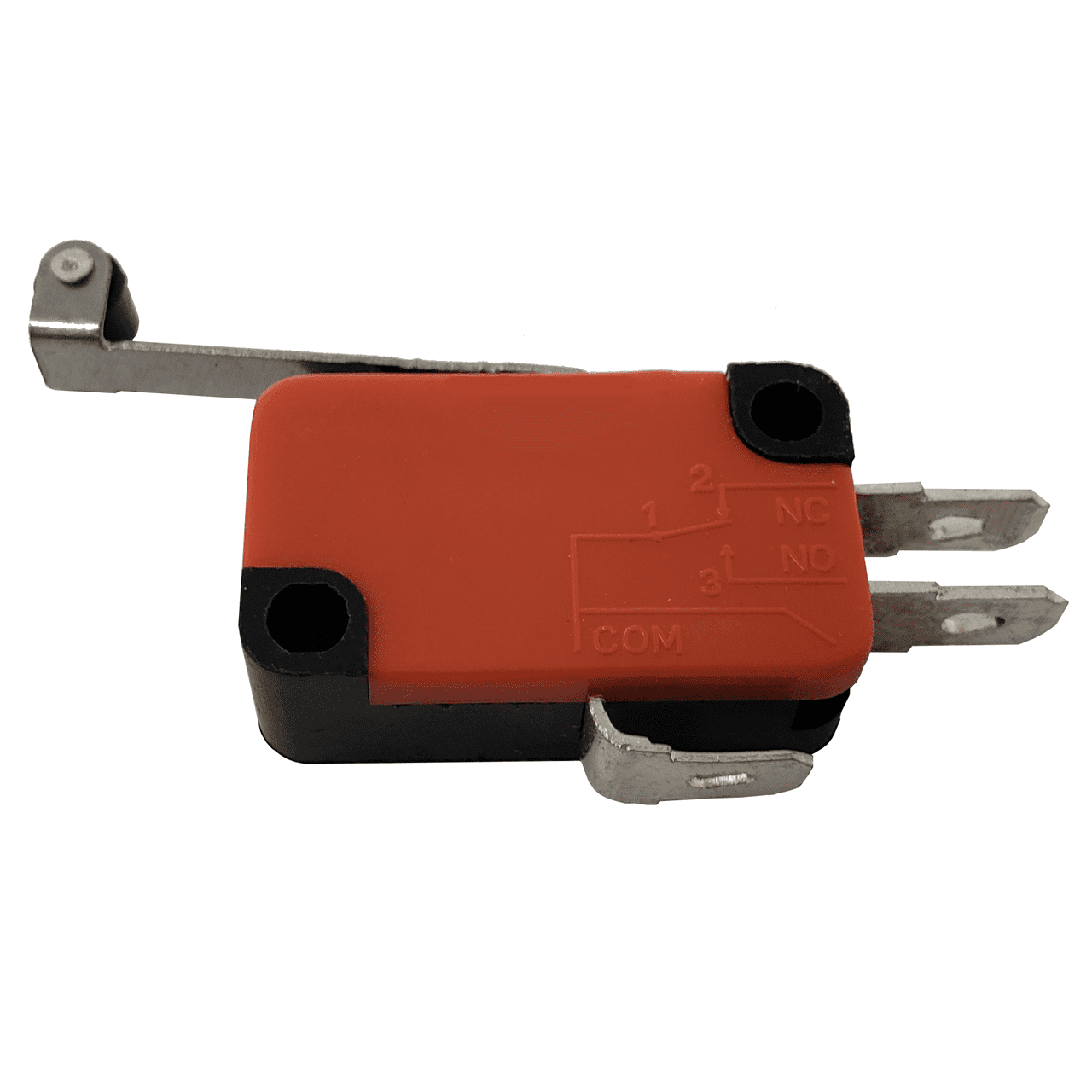

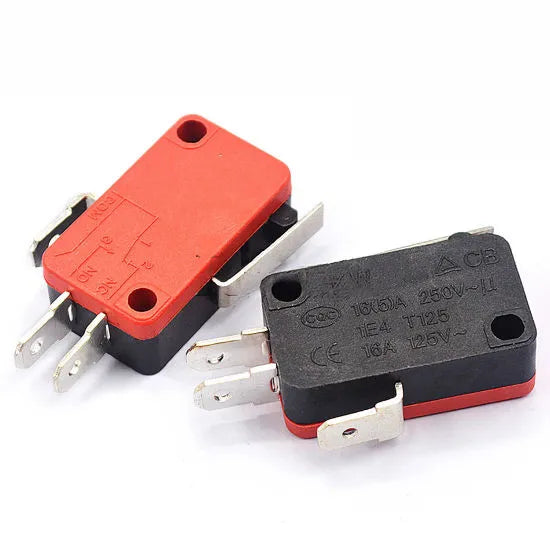

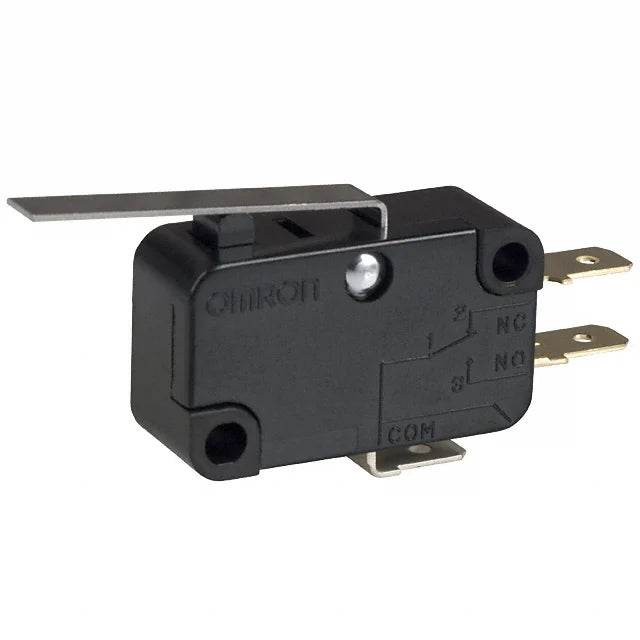

16A Limit Switch 12V DC 220V AC 3 Pin Momentary
16A Limit Switch 12V DC 220V AC 3 Pin Momentary
Regular price
Rs. 20.00
Regular price
Rs. 25.00
Sale price
Rs. 20.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
A16A-rated 3-pin momentary limit switch that operates with 12V DC and 220V AC.
š§ Specifications & Features:
| Feature | Description |
|---|---|
| Current Rating | 16A (Amps) ā Can handle up to 16 Amps of current. |
| Voltage | 12V DC / 220V AC ā Can be used in low voltage (DC) or standard household voltage (AC). |
| Type | Momentary ā Switch returns to its default position when released. |
| Pins | 3-Pin ā Typically used for Common (COM), Normally Open (NO), and Normally Closed (NC). |
| Action | Momentary Push ā Usually activated by mechanical movement (like a door or lever). |
| Application | Often used in home appliances, CNC machines, elevator systems, security mechanisms, etc. |
š§© Pin Configuration (Typical 3-Pin Limit Switch):
-
COM (Common): The input terminal.
-
NO (Normally Open): No connection until activated.
-
NC (Normally Closed): Connected to COM until the switch is activated.
