12V DC 1-Channel RF Wireless Relay Switch Module with 2-Button Remote and Protective Enclosure
12V DC 1-Channel RF Wireless Relay Switch Module with 2-Button Remote and Protective Enclosure
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The 12V DC 1-Channel RF Wireless Relay Switch Module allows electrical appliances, lights, motors, pumps, door locks and other devices to be controlled remotely.

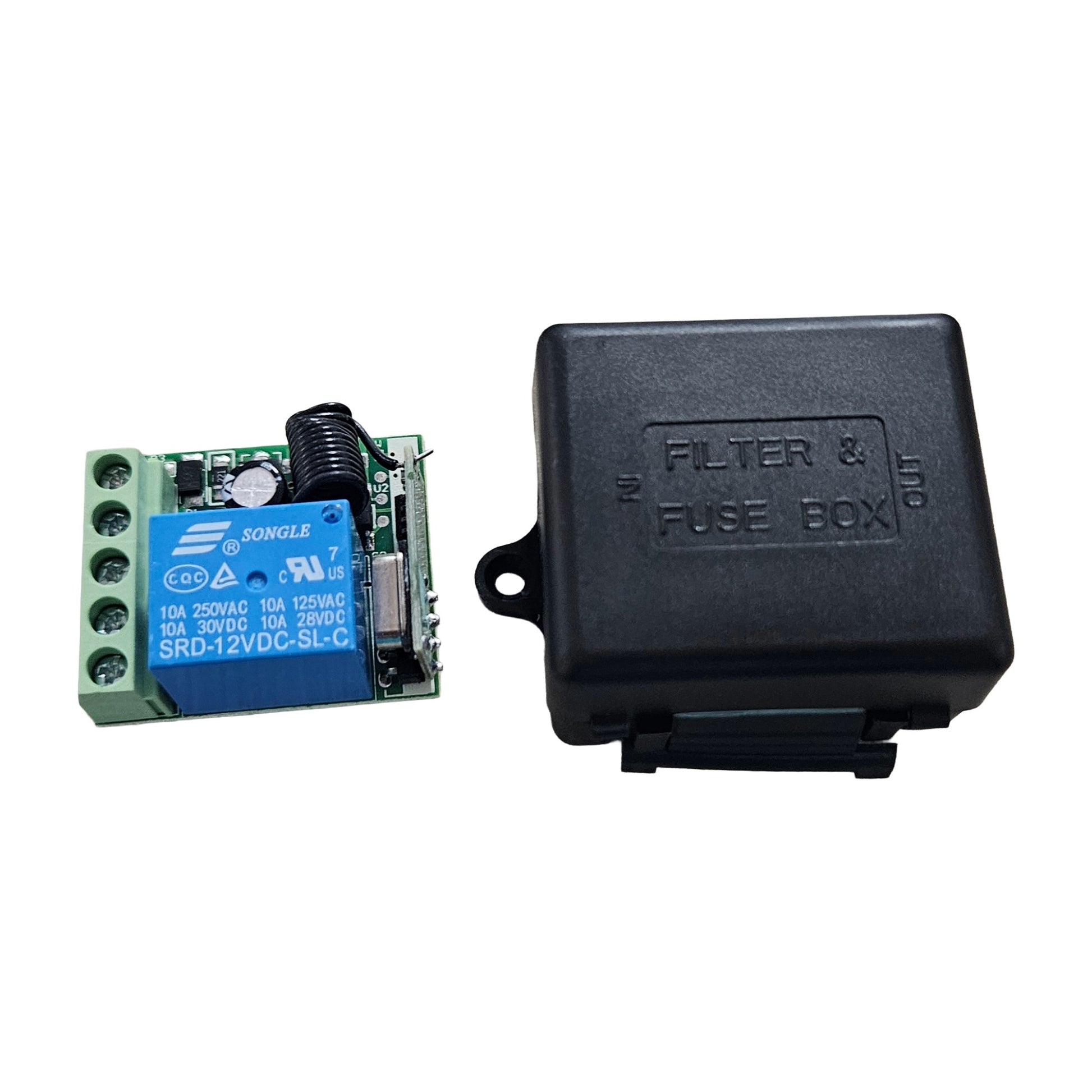

The kit includes a compact RF receiver board, a single-channel 12V relay, a two-button wireless key-fob remote and a protective plastic enclosure. The relay provides COM, NO and NC switching terminals, allowing the connected device to be wired for normally open or normally closed operation.
The onboard Songle SRD-12VDC-SL-C relay supports switching loads up to 10A within its specified voltage ratings. Screw terminals make power and load connections easier without requiring direct soldering.
This module is suitable for home automation, wireless switching, access-control systems, lighting projects, motor control, gate systems and DIY electronics.
Key Features
- Single-channel RF wireless relay controller
- Operates using a 12V DC supply

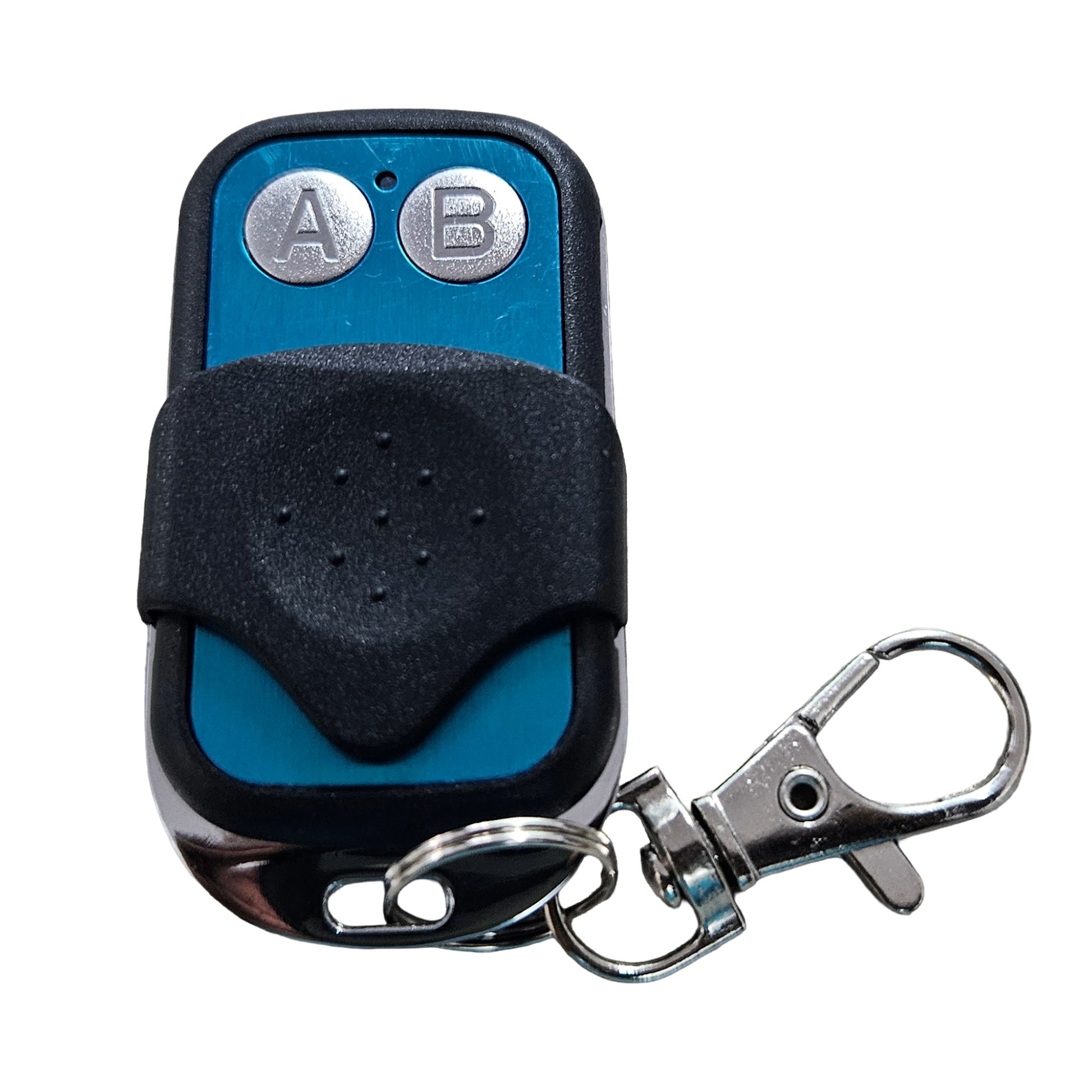

- Includes two-button key-fob remote
- Remote buttons marked A and B
- Songle SRD-12VDC-SL-C relay
- COM, NO and NC relay contacts
- Screw-terminal wire connections
- Protective plastic receiver enclosure
- Compact receiver board
- Wireless appliance control
- Suitable for indoor DIY and automation projects
- Relay supports AC and DC load switching within its ratings
Specifications
| Specification | Details |
|---|---|
| Product Type | RF Wireless Relay Switch |
| Number of Channels | 1 Channel |
| Receiver Operating Voltage | 12V DC |
| Relay Model | Songle SRD-12VDC-SL-C |
| Relay Coil Voltage | 12V DC |
| Relay Contact Type | SPDT |
| Relay Terminals | COM, NO and NC |
| Maximum AC Contact Rating | 10A at 250V AC |
| Additional AC Rating | 10A at 125V AC |
| Maximum DC Contact Rating | 10A at 30V DC |
| Additional DC Rating | 10A at 28V DC |
| Control Method | RF Wireless Remote |
| Remote Type | Two-Button Key-Fob Remote |
| Remote Buttons | A and B |
| Receiver Antenna | Onboard Coil Antenna |
| Connection Type | Screw Terminals |
| Receiver Enclosure | Plastic Protective Box |
| Enclosure Colour | Black |
| Mounting Provision | Side Mounting Hole |
| Suitable For | Lights, Motors, Pumps, Locks and Automation Projects |

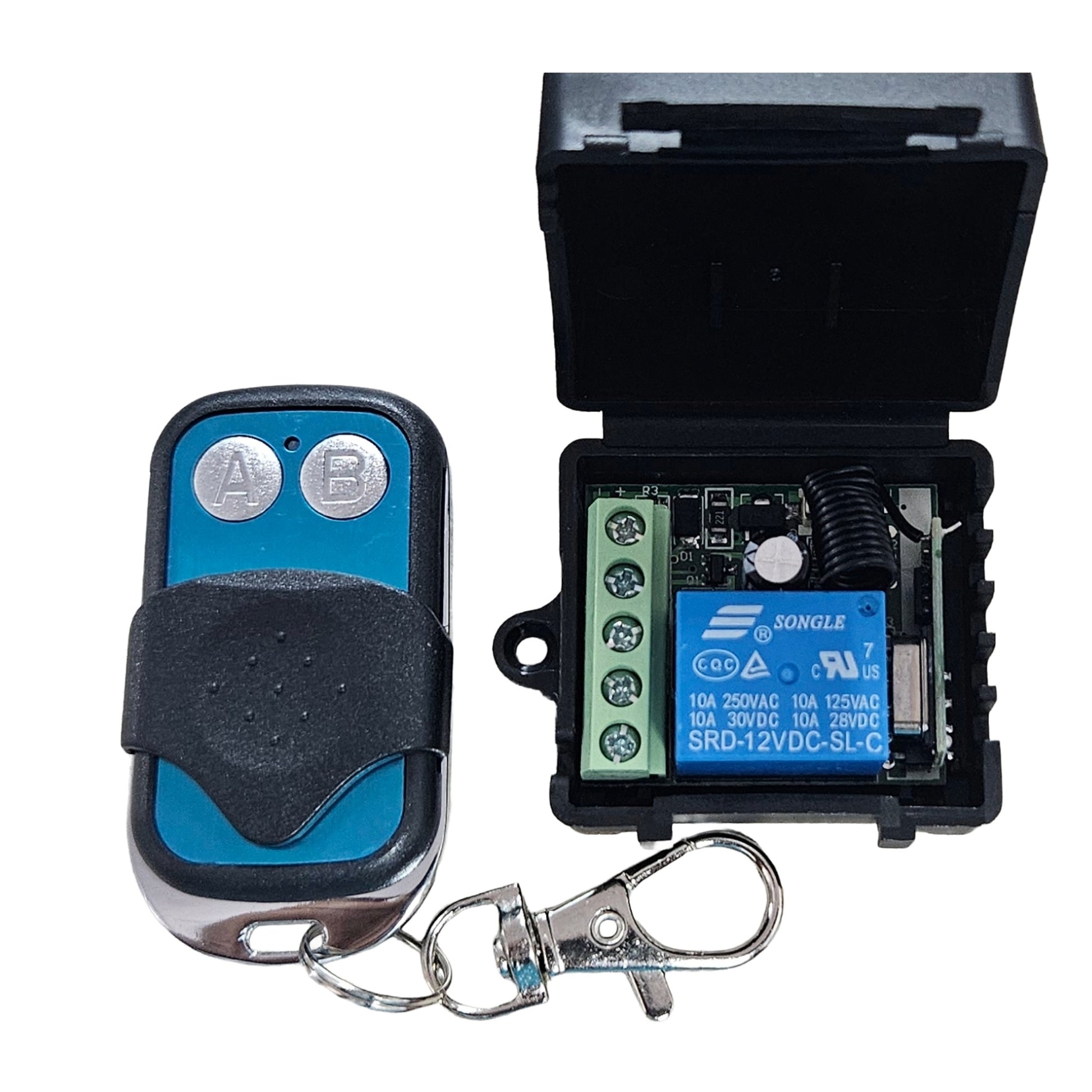

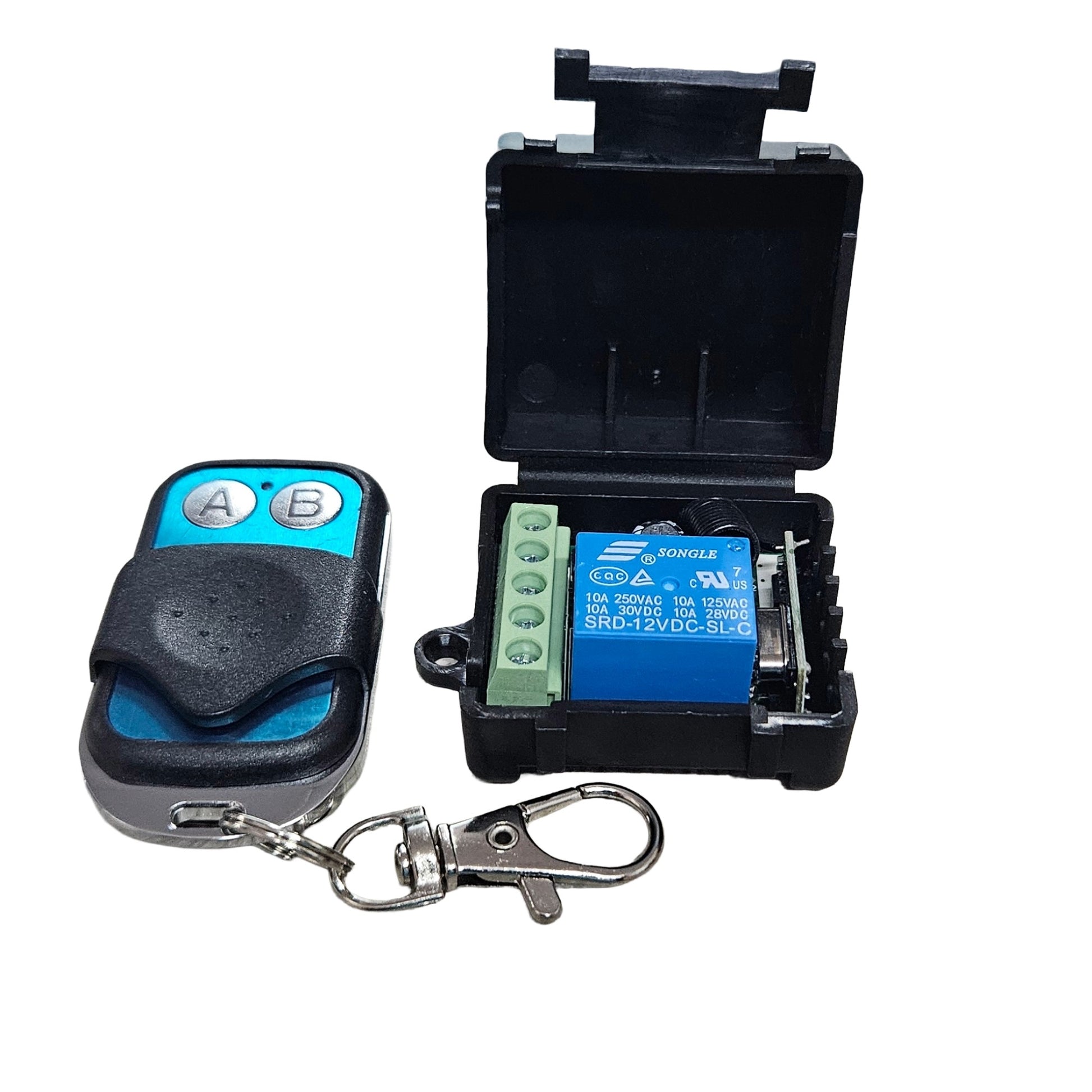

| Package Contents | 1 × RF Relay Receiver, 1 × Two-Button Remote and 1 × Protective Enclosure |
