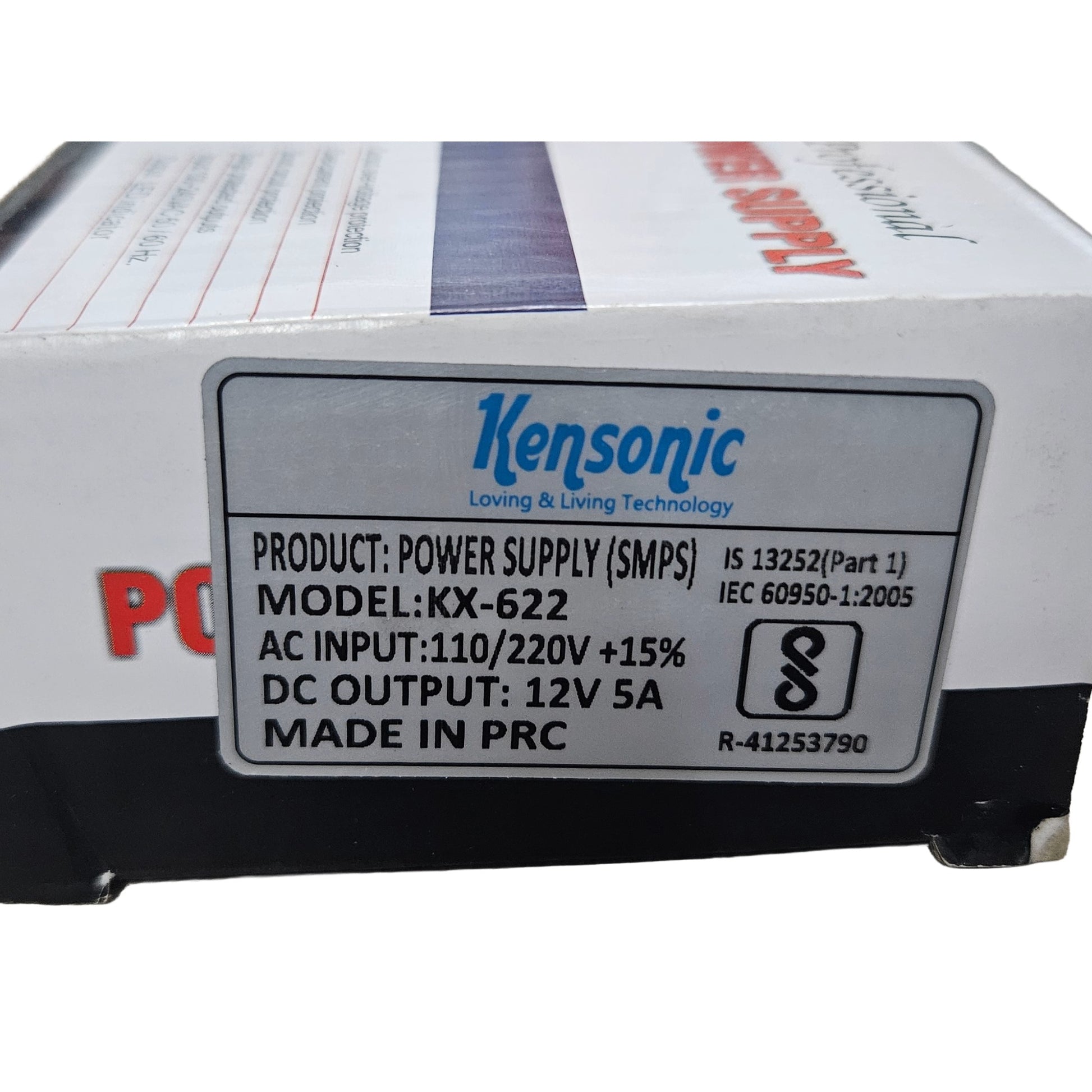

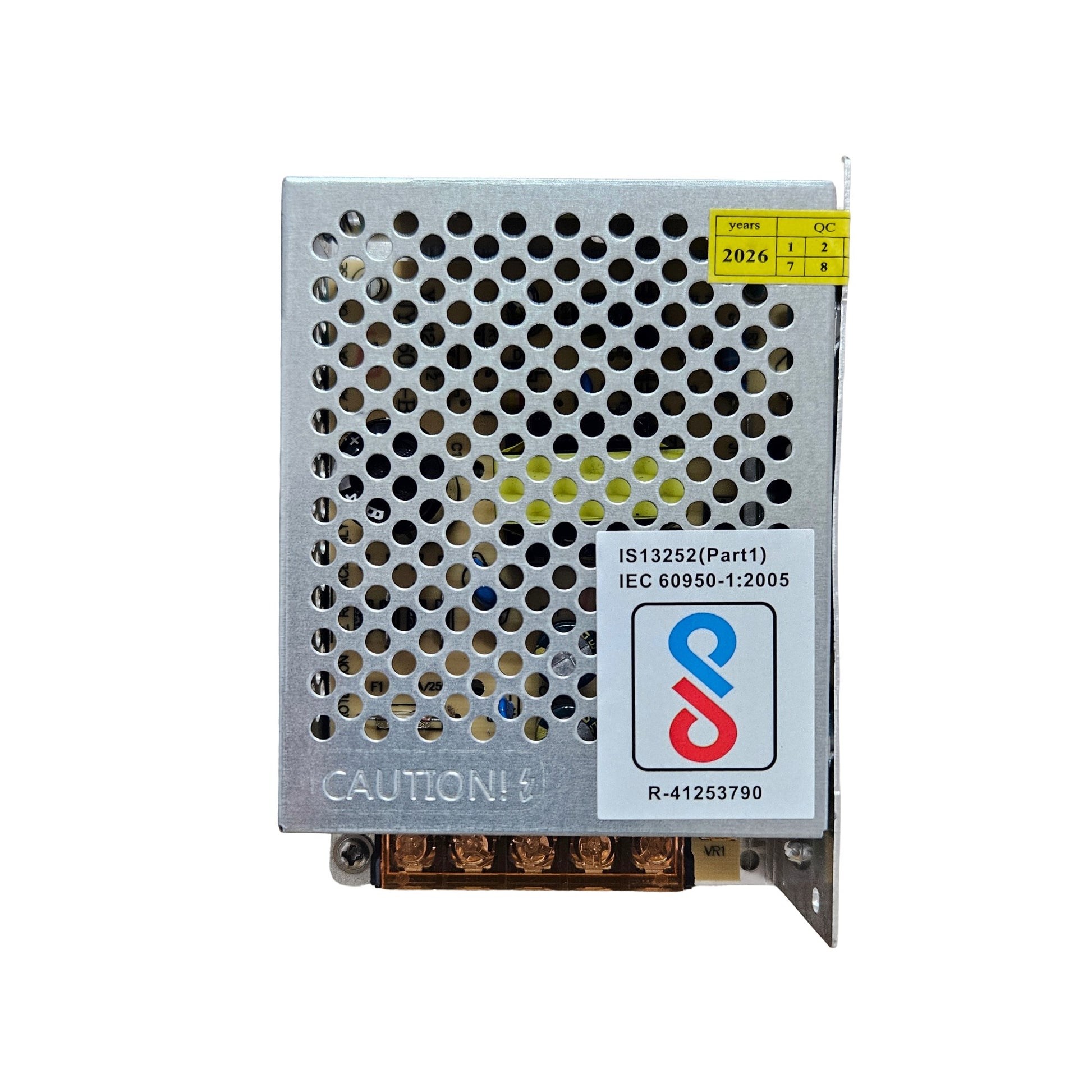

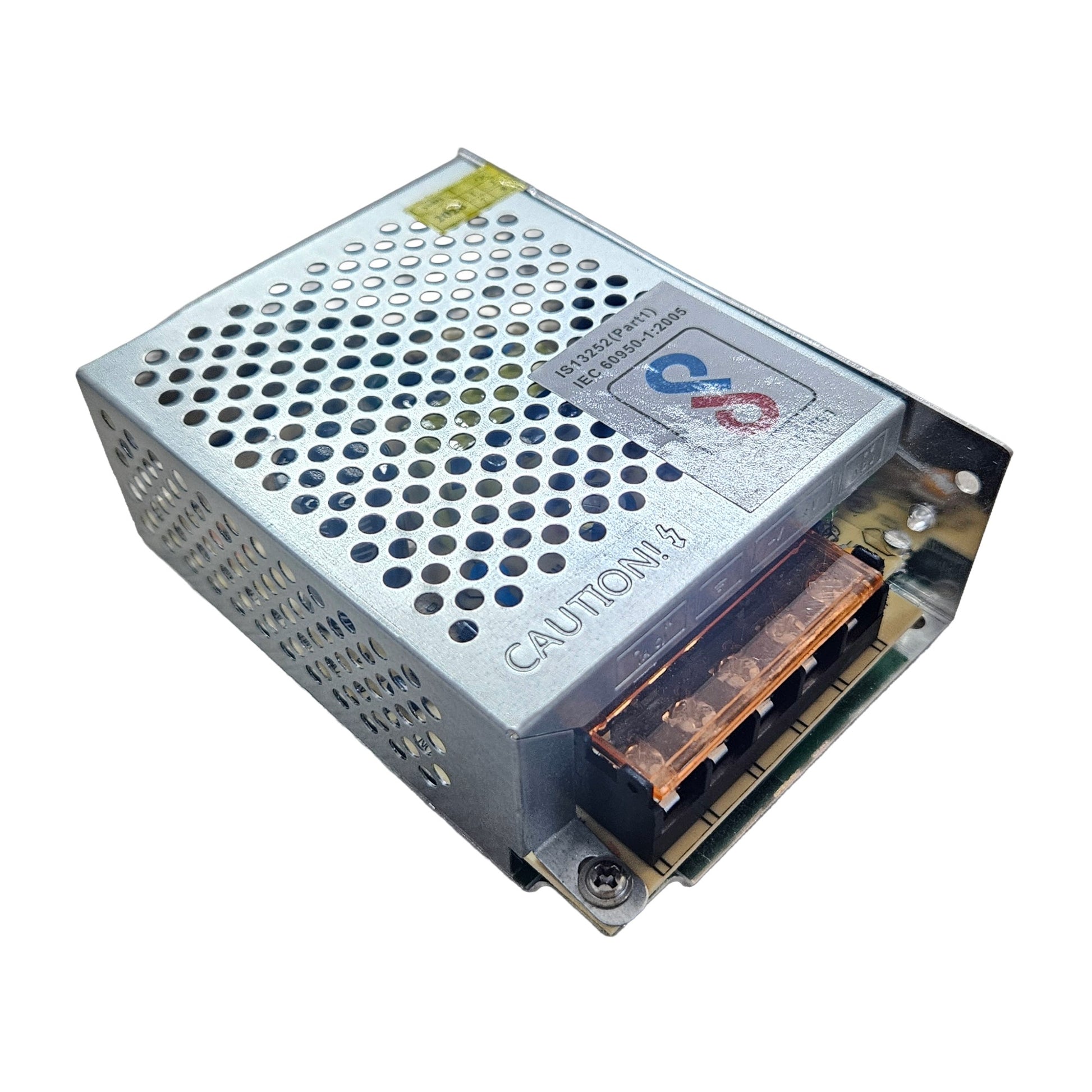

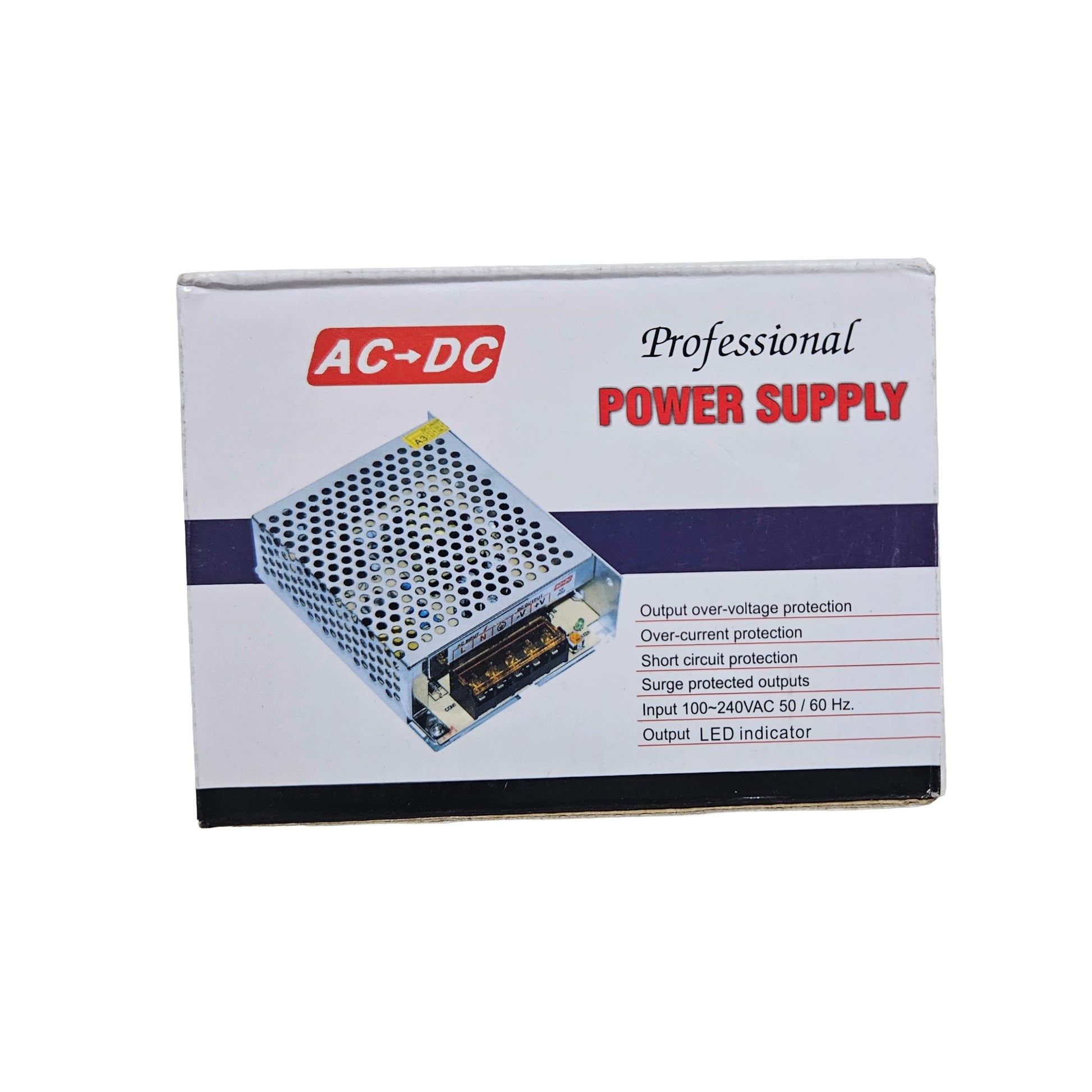

12V 5A AC to DC SMPS Power Supply Module – Metal Body 60W Switching Power Supply
12V 5A AC to DC SMPS Power Supply Module – Metal Body 60W Switching Power Supply
Description
This 12V 5A AC to DC SMPS power supply is a high-capacity switching power supply designed to convert AC input into stable 12V DC output. It is suitable for LED strip lights, CCTV cameras, 12V DC motors, amplifiers, Arduino projects, robotics projects, DIY electronics, and other 12V DC devices that require higher current.
The metal-body enclosure provides good durability and heat dissipation. The ventilated design helps reduce heating during continuous usage, and the screw terminal connection makes input and output wiring easy. This SMPS power supply includes useful protection features such as over-voltage protection, over-current protection, short-circuit protection, and surge protection.
Specifications
| Specification | Details |
|---|---|
| Product Type | AC to DC SMPS Power Supply |
| Model | KX-622 |
| Output Voltage | 12V DC |
| Output Current | 5A |
| Output Power | 60W approx. |
| Input Voltage | 100V–240V AC / 110V–220V AC |
| Input Frequency | 50/60Hz |
| Body Type | Metal Enclosure |
| Cooling Type | Ventilated Metal Case |
| Connection Type | Screw Terminal |
| Indicator | LED Power Indicator |
| Protection | Over-voltage, over-current, short-circuit, surge protection |
| Suitable For | LED strip, CCTV camera, DC motor, amplifier, Arduino, robotics and DIY projects |
