12V 15W Solar Panel – Aluminium Frame for Battery Charging, Solar Projects and Lighting
12V 15W Solar Panel – Aluminium Frame for Battery Charging, Solar Projects and Lighting
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The 12V 15W Solar Panel is a compact photovoltaic module designed for small solar-powered systems, battery-charging applications, lighting projects, electronics experiments, and off-grid installations.
It delivers a rated maximum power of 15W, with an operating voltage of approximately 18.38V and an operating current of 0.86A under standard test conditions. The higher operating voltage allows it to be used as a nominal 12V solar panel when connected through a suitable solar charge controller.
The panel is built with multiple polycrystalline solar cells and a durable aluminium frame for protection and convenient mounting. It is suitable for educational projects, solar lighting, small battery systems, CCTV setups, emergency power projects, and DIY renewable-energy applications.
For charging a 12V battery, connect the panel through a compatible solar charge controller. Do not connect sensitive devices or batteries directly without proper voltage regulation and protection.

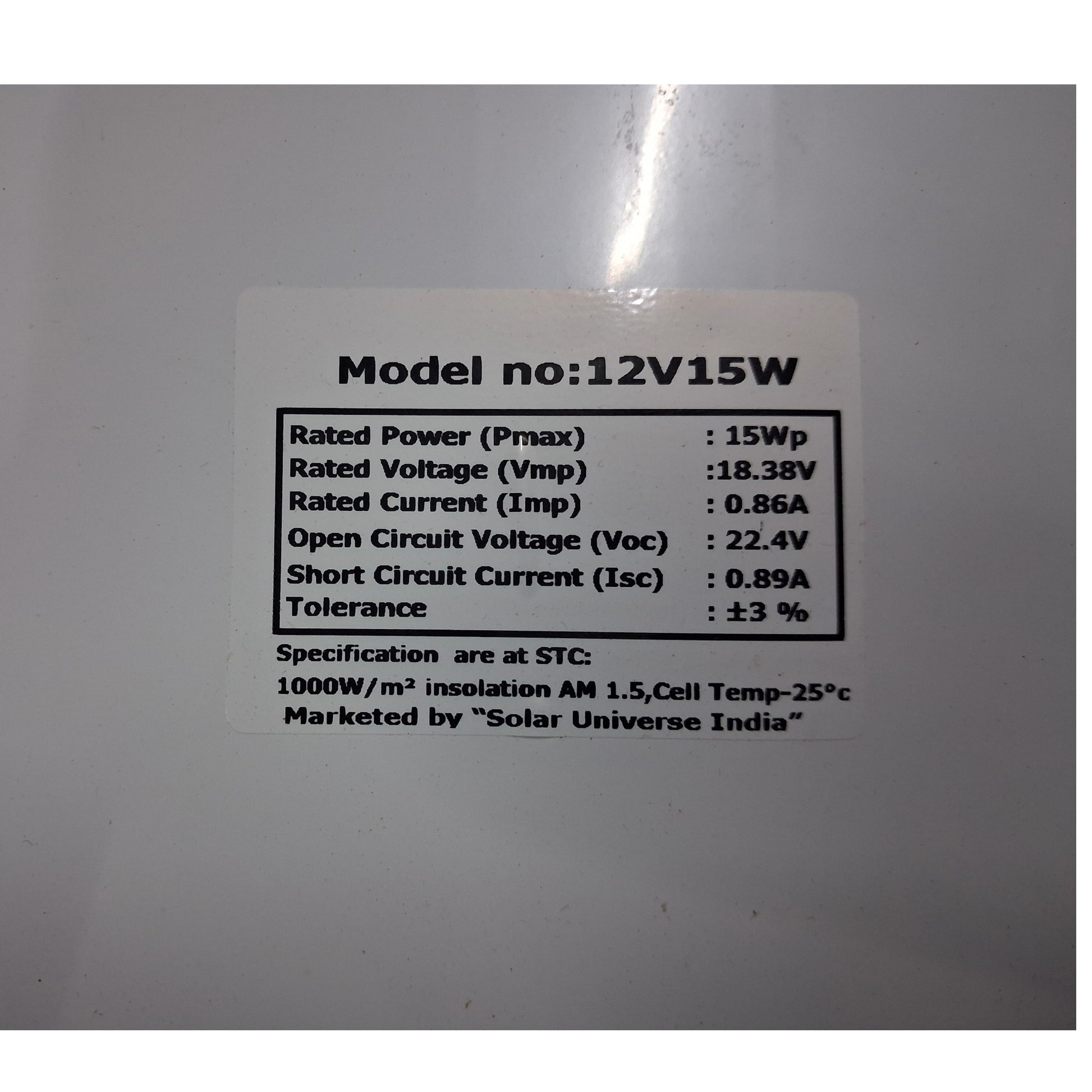

Specifications
| Specification | Details |
|---|---|
| Product Type | Polycrystalline Solar Panel |
| Model Number | 12V15W |
| Nominal System Voltage | 12V |
| Rated Maximum Power | 15W |
| Rated Voltage at Maximum Power (Vmp) | 18.38V |
| Rated Current at Maximum Power (Imp) | 0.86A |
| Open-Circuit Voltage (Voc) | 22.4V |
| Short-Circuit Current (Isc) | 0.89A |
| Power Tolerance | ±3% |
| Frame Material | Aluminium |
| Cell Type | Polycrystalline |
| Recommended Controller | 12V-compatible solar charge controller |
| Standard Test Irradiance | 1000W/m² |
| Standard Cell Temperature | 25°C |
| Air Mass | AM 1.5 |
| Suitable Applications | Battery charging, solar lighting, CCTV, DIY projects and educational experiments |
| Package Contents | 1 × 12V 15W Solar Panel |
Important Note
Actual voltage, current, and power output vary depending on sunlight intensity, panel angle, temperature, shading, wiring, and load conditions.
