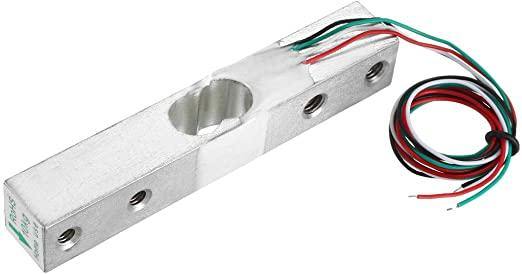

10Kg Load Cell Weight Sensor Aluminium Alloy Strain Gauge for Electronic Weighing Scale HX711 Arduino DIY Projects
Rs. 149.00
Skip to product information
10Kg Load Cell Weight Sensor Aluminium Alloy Strain Gauge for Electronic Weighing Scale HX711 Arduino DIY Projects
Rs. 149.00
Bulk order?
Request pricing and availability
Need support?
Contact our team
Free shipping eligibility
Prepaid orders of ₹999+ delivered within Tamil Nadu. Terms apply.
Cash on Delivery
Available for eligible PIN codes. Confirmed at checkout.
Description
A 10Kg load cell sensor is a precision force measurement device used in electronic weighing scales and Arduino-based DIY projects. It works on the strain gauge principle, where deformation of the metal body changes electrical resistance, producing a measurable output signal.
Specifications
- Type: Single-point load cell
- Material: Aluminium Alloy (high strength, corrosion resistant)
- Rated Capacity: 10 Kg
- Technology: Strain gauge full-bridge configuration
- Rated Output: 1.0 mV/V (typical)
- Supply Voltage (Excitation): 3V – 12V (recommended 5V)
- Safe Overload: 120% of rated capacity
